Hayward

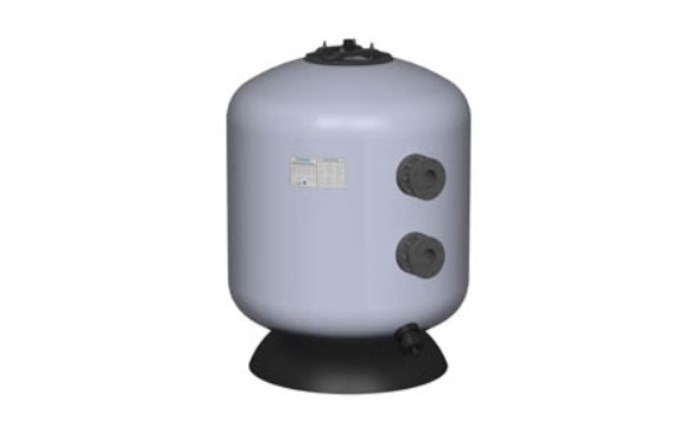

63" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter
Product #:HAY-05-9966
Mfg. Part #:HCF663C
Hayward® HCF663C63" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter
Hayward
63" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter
Product #:HAY-05-9966
Mfg. Part #:HCF663C
Description
Hayward® HCF663C63" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter. The Hayward 63" HCF Series Commercial Bobbin Wound FG Sand Filter is designed to provide the ultimate in filtration performance and durability. Its larger size eliminates the need for multiple smaller filters, which means you’ll save valuable floor space, reduce installation and plumbing complexity, and simplify maintenance and backwashing. Constructed with heavy-duty filament-wound fiberglass, UV-protected resin, and corrosion-proof internals, this large-format HCF Series sand filter offers a powerful, streamlined filtration solution.
Branch Availability
content loaded
Specifications
- BrandHayward
- ChannelNone
- Shipping Dimensions71 x 67 x 76 inch
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight698.67 pound
- Filter Media Pea Gravel6800 pound
- Filtration Area21.64 square feet
- MaterialFiberglass
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Product Depth67.25 inch
- Product Height75.82 inch
- Product Weight698.7 pound
- Product Width67.25 inch
- Sand Required850 pound
- Side Clearance4 inch
- Tank ColorGray
- Tank MaterialFiberglass
- Vertical Clearance18 inch
- UPC Code0610377404037

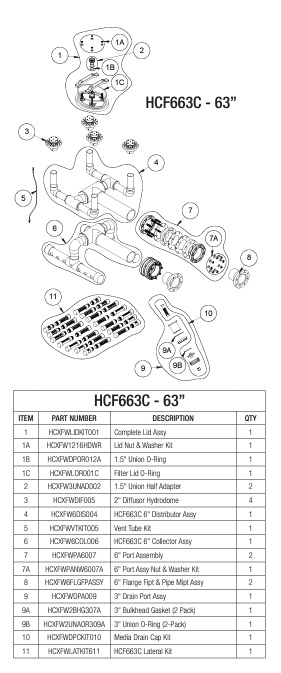

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFWLIDKIT001
Complete Lid Assy
Product #:
Mfg #: HCXFWLIDKIT001
Notes:
1 req.1A
1A
HCXFW1216HDWR
Lid Nut & Washer Kit
Product #:
Mfg #: HCXFW1216HDWR
Notes:
1 req.1B
1B
HCXFWDPOR012A
1.5" Union O-Ring
Product #:
Mfg #: HCXFWDPOR012A
Notes:
1 req.1C
1C
HCXFWLOR001C
Filter Lid O-Ring
Product #:
Mfg #: HCXFWLOR001C
Notes:
1 req.2
2
HCXFW3UNAD002
1.5" Union Half Adapter
Product #:
Mfg #: HCXFW3UNAD002
Notes:
2 req.3
3
HCXFWDIF005
2" Diffusor Hydrodome
Product #:
Mfg #: HCXFWDIF005
Notes:
4 req.4
4
HCXFW6DIS004
HCF663C 6" Distributor Assy
Product #:
Mfg #: HCXFW6DIS004
Notes:
1 req.5
5
HCXFWVTKIT005
Vent Tube Kit
Product #:
Mfg #: HCXFWVTKIT005
Notes:
1 req.6
6
HCXFW6COL006
HCF663C 6" Collector Assy
Product #:
Mfg #: HCXFW6COL006
Notes:
1 req.7
7
HCXFWPA6007
6" Port Assembly
Product #:
Mfg #: HCXFWPA6007
Notes:
2 req.7A
7A
HCXFWPANW6007A
6" Port Assy Nut & Washer Kit
Product #:
Mfg #: HCXFWPANW6007A
Notes:
1 req.8
8
HCXFW6FLGFPASSY
6" Flange Fipt & Pipe Mipt Assy
Product #:
Mfg #: HCXFW6FLGFPASSY
Notes:
2 req.9
9
HCXFWDPA009
3" Drain Port Assy
Product #:
Mfg #: HCXFWDPA009
Notes:
1 req.9A
9A
HCXFW2BHG307A
3" Bulkhead Gasket (2 Pack)
Product #:
Mfg #: HCXFW2BHG307A
Notes:
1 req.9B
9B
HCXFW2UNAOR309A
3" Union O-Ring (2-Pack)
Product #:
Mfg #: HCXFW2UNAOR309A
Notes:
1 req.Wholegoods
There are no wholegoods available.
