SPECK PUMPS

Model 72-VI 3.45 THP 3PH Pump

Product #:SPK-10-3164

Mfg. Part #:IG233-1300F-000

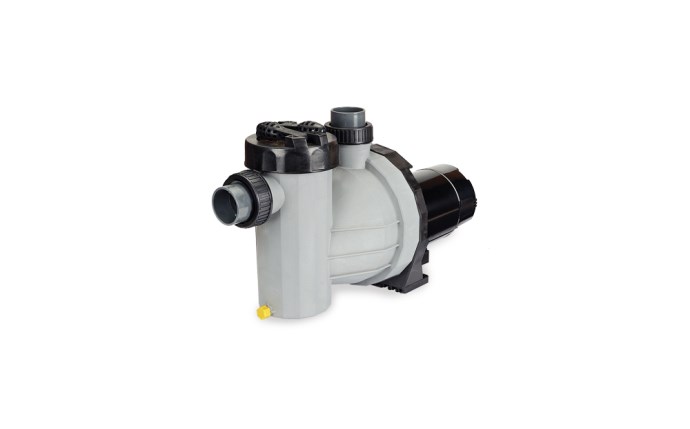

SPECK Pumps IG233-1300F-000 Model 72-VI 3.45 THP 3PH Pump

SPECK PUMPS

Model 72-VI 3.45 THP 3PH Pump

Product #:SPK-10-3164

Mfg. Part #:IG233-1300F-000

Description

The Model 72 all-plastic, self-priming swimming pool pump offers commercial pool pump quality for use in larger residential and small commercial pools. The pump design has been engineered to ensure durability, superior “high flow” performance and quiet operation.

Documents

Feature Bullets

  • Complete with our unique mechanical shaft seal that allows the pump, if mistreated, to run dry for up to one hour
  • Non-corrosive, chemical/UV resistant, and can withstand temperatures of up to 175° F
  • Suction and discharge are equipped with quick disconnect 2″ or 3″ unions for easy installation and maintenance
  • Lock ring that incorporates handles. These handles provide the user a convenient way to easily remove the lid
  • Heavy duty “1081” E-plus®/extreme-E™ energy efficient motors for extra low energy consumption
  • The motor is easy to remove without disturbing the plumbing. Reusable o-rings throughout
  • Every pump is performance tested before leaving the Speck factory

    • Branch Availability

    content loaded

    Specifications

    • BrandSPECK PUMPS
    • Amps High Speed9.6
    • Shipping Dimensions30 x 14 x 18 inch
    • Amps Low Speed9.2
    • ApplicationPool
    • ColorGray, Black
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight56 pound
    • Horsepower3.45 horse power
    • MaterialPlastic
    • Minimum Sell Quantity1
    • Motor Frame Size56
    • Motor Speed1-Speed
    • PhaseThree
    • Voltage208V, 230V
    • UPC Code840182102242

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

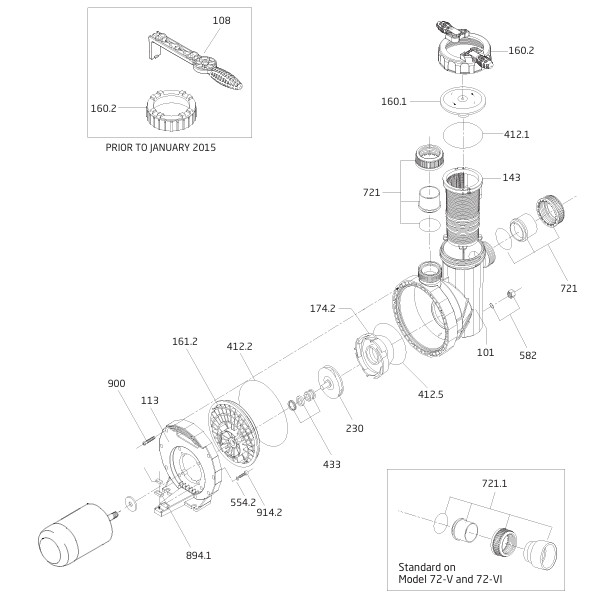

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    160.1
    160.1
    2901116010
    SPK-101-2749
    BADU 72/ S90/ E71 CLEAR LID
    Product #: SPK-101-2749
    Mfg #: 2901116010
    160.2
    160.2
    2921116022
    SPK-101-3154
    STRAINER COVER LOCK RING W/ HANDLES (2015+)
    Product #: SPK-101-3154
    Mfg #: 2921116022
    412.1
    412.1
    2921141210
    SPK-101-2679
    137mm x 5mm O-Ring for 433 Pool Pump Lid
    Product #: SPK-101-2679
    Mfg #: 2921141210
    143
    143
    2901114300
    SPK-101-2610
    5-1/8"x7-3/8" STRAINER BASKET
    Product #: SPK-101-2610
    Mfg #: 2901114300
    101
    101
    2901410101
    Casing
    Product #:
    Mfg #: 2901410101
    582
    582
    2901158200
    SPK-101-3101
    3/8" CASING DRAIN CAP W/ GASKET
    Product #: SPK-101-3101
    Mfg #: 2901158200
    412.5
    412.5
    2920141210
    SPK-101-2694
    90mm x 5mm O-Ring for 72/S90/Badu Ecom2/EcomV/Ecom3V Diffuser
    Product #: SPK-101-2694
    Mfg #: 2920141210
    174.2
    174.2
    2901417422
    SPK-101-1011
    III/IV/V Diffuser for Pool Pump
    Product #: SPK-101-1011
    Mfg #: 2901417422
    174.2
    174.2
    2901417420
    SPK-101-1012
    VI/72 Diffuser for Pool Pump
    Product #: SPK-101-1012
    Mfg #: 2901417420
    230
    230
    2901423033
    SPK-101-1015
    IV 120/8.7mm Impeller for Pool Pump
    Product #: SPK-101-1015
    Mfg #: 2901423033
    230
    230
    2901423017
    Impeller (-V) - 2.5 HP S.F. 1.0 118/10.0mm
    Product #:
    Mfg #: 2901423017
    230
    230
    2901423013
    Impeller (-VI) - 3.5 HP S.F. 1.0 120/7.8mm
    Product #:
    Mfg #: 2901423013
    433
    433
    2920343310
    SPK-101-2675
    Complete Mechanical Shaft Seal
    Product #: SPK-101-2675
    Mfg #: 2920343310
    412.2
    412.2
    2901441220
    O-ring - Casing 225 x 6mm
    Product #:
    Mfg #: 2901441220
    161.2
    161.2
    2901416100
    Seal Housing
    Product #:
    Mfg #: 2901416100
