2 HP Horizontal 3 Stage Centrifugal Pump

Product #:GOU-58-1102

Mfg. Part #:HSC20


Goulds HSC20 2 HP Horizontal 3 Stage Centrifugal Pump

Goulds

2 HP Horizontal 3 Stage Centrifugal Pump

Product #:GOU-58-1102

Mfg. Part #:HSC20

EA

Description

Multi-stage Design: Provides steady, quiet and vibration-free operation for years of trouble-free service. Impellers: 20% glass-filled thermoplastic precision molded for high efficiencies. Compact Design: Close-coupled, space saving design provides easy installation. Flexible coupling and bedplate not required.

Documents

Feature Bullets

  • Mounting: Can be mounted in horizontal position
  • Stainless Steel Pump Shaft: Hex design provides positive drive for impellers and eliminates clearance adjustments
  • Corrosion Resistant: Stainless steel wear rings and cover plates. Electro-coated paint process applied inside and out and then baked on
  • O-rings: Throughout for positive sealing
  • Easy to Service: Can be taken apart for service by removing four bolts
  • Motor: Close coupled design. Ball bearings carry all radial/axial thrust loads. Designed for continuous operation. All ratings are within working limits of the motor

    • Branch Availability

    content loaded

    Specifications

    • BrandGoulds
    • ApplicationPool, Spa
    • ColorBlue
    • ChannelConstruction Channel
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight74 pound
    • Minimum Sell Quantity1
    • Power2 horse power
    • Pressure Rating Max125 pounds per square inch
    • Working Temperature Max180 degrees Fahrenheit
    • UPC Code697666007063

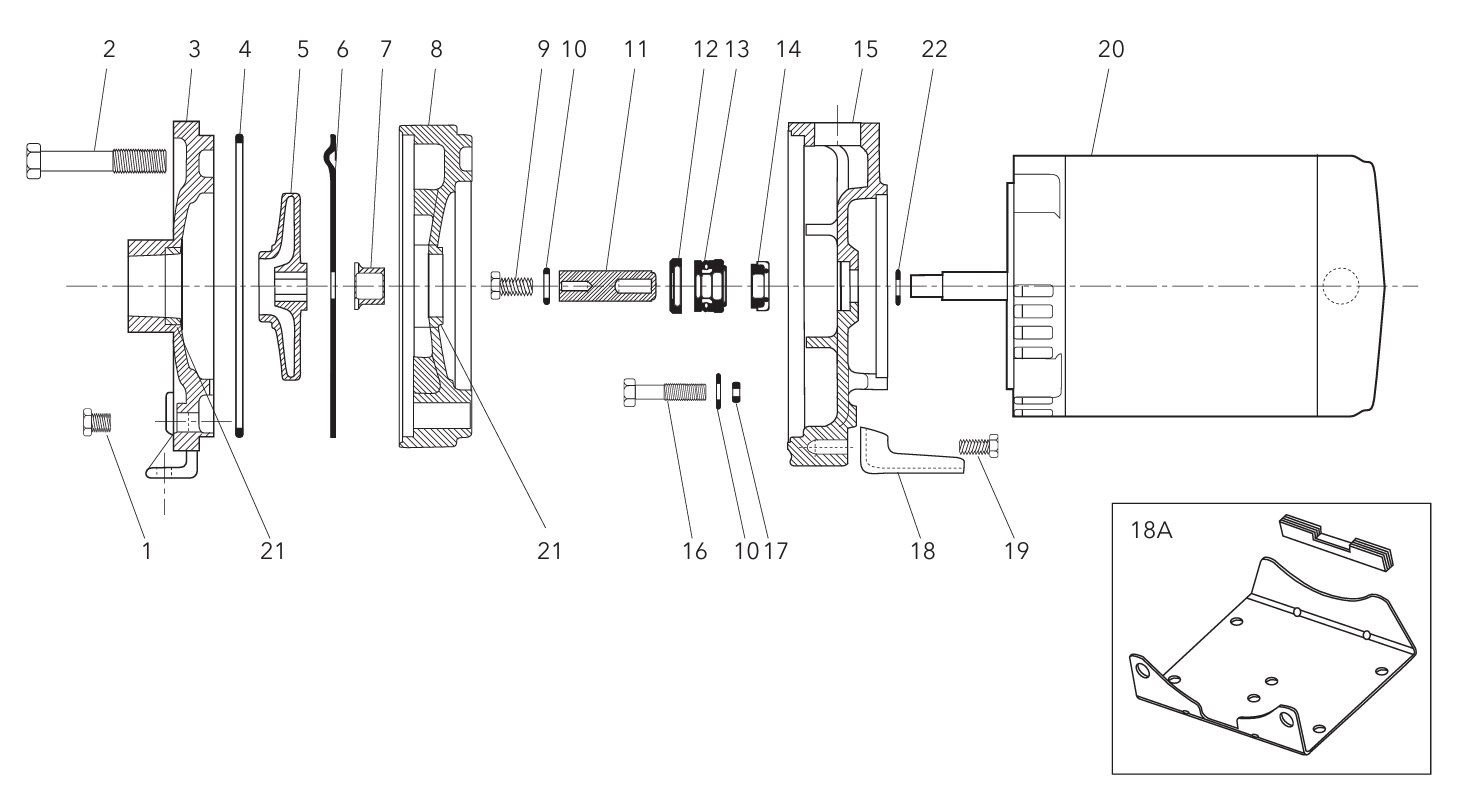

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    6K2
    Pipe plug 1/4" NPT
    Product #:
    Mfg #: 6K2
    Notes:
    Qty 3
    2
    2
    13K214
    Bolt - casing to adapter, 3 stage
    Product #:
    Mfg #: 13K214
    Notes:
    Qty 4
    3
    3
    1K291
    Casing
    Product #:
    Mfg #: 1K291
    4
    4
    5K550
    O-ring - casing and intermediate stage
    Product #:
    Mfg #: 5K550
    Notes:
    1 per stage
    5
    5
    2K289
    Impeller - 2 HP
    Product #:
    Mfg #: 2K289
    Notes:
    Qty 3
    6
    6
    4K396
    Coverplate
    Product #:
    Mfg #: 4K396
    Notes:
    1 per impeller
    7
    7
    4K328
    Sleeve
    Product #:
    Mfg #: 4K328
    8
    8
    1K204
    Intermediate stage
    Product #:
    Mfg #: 1K204
    9, 10, 11, 12
    9, 10, 11, 12
    4K332
    Shaft extension assembly - 3 stage, 2 HP
    Product #:
    Mfg #: 4K332
    13, 14
    13, 14
    10K10
    GOU-101-1000
    Mechanical Seal Assembly Model 10K10
    Product #: GOU-101-1000
    Mfg #: 10K10
    15
    15
    1K206
    Motor adapter
    Product #:
    Mfg #: 1K206
    16
    16
    13K81
    Bolt - adapter to motor
    Product #:
    Mfg #: 13K81
    17
    17
    5K549
    O-ring - motor adapter bolts
    Product #:
    Mfg #: 5K549
    Notes:
    Qty 4
    18
    18
    4K376
    Foot
    Product #:
    Mfg #: 4K376
    Notes:
    old style
    18A
    18A
    15K60
    Base and rubber channel
    Product #:
    Mfg #: 15K60
