Little Giant

14S Series Sewage Pump with 20' Cord 3" Discharge 1/2HP 115V

Product #:LGP-10-6691

Mfg. Part #:514420


Little Giant 514420 14S Series Sewage Pump with 20' Cord 3" Discharge 1/2HP 115V

Little Giant

14S Series Sewage Pump with 20' Cord 3" Discharge 1/2HP 115V

Product #:LGP-10-6691

Mfg. Part #:514420

Description

The Series Sewage Pump is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long-term dependability. For use in residential, commercial, industrial, and agricultural applications. Applications include dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic, or drainage areas.

Feature Bullets

  • Handles solids up to 2 Inch diameter
  • Two-vane, non-clog impeller
  • Branch Availability

    content loaded

    Specifications

    • BrandLittle Giant
    • Amps High Speed21
    • Shipping Dimensions15.25 x 10.5 x 22 inch
    • Amps Low Speed21
    • ChannelConstruction Channel
    • Cord Length20 foot
    • Each Product Weight88 pound
    • Frequency Rating (Hz)60
    • Horsepower0.5 horse power
    • MaterialCarbon, Cast Iron, Ceramic, Stainless Steel
    • Max Liquid Temperature140 degrees Fahrenheit
    • Max Working Pressure10.8 pounds per square inch
    • Minimum Sell Quantity1
    • Power Rating1100 watt
    • Shut Off25 foot
    • Voltage115V
    • UPC Code010121144200

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

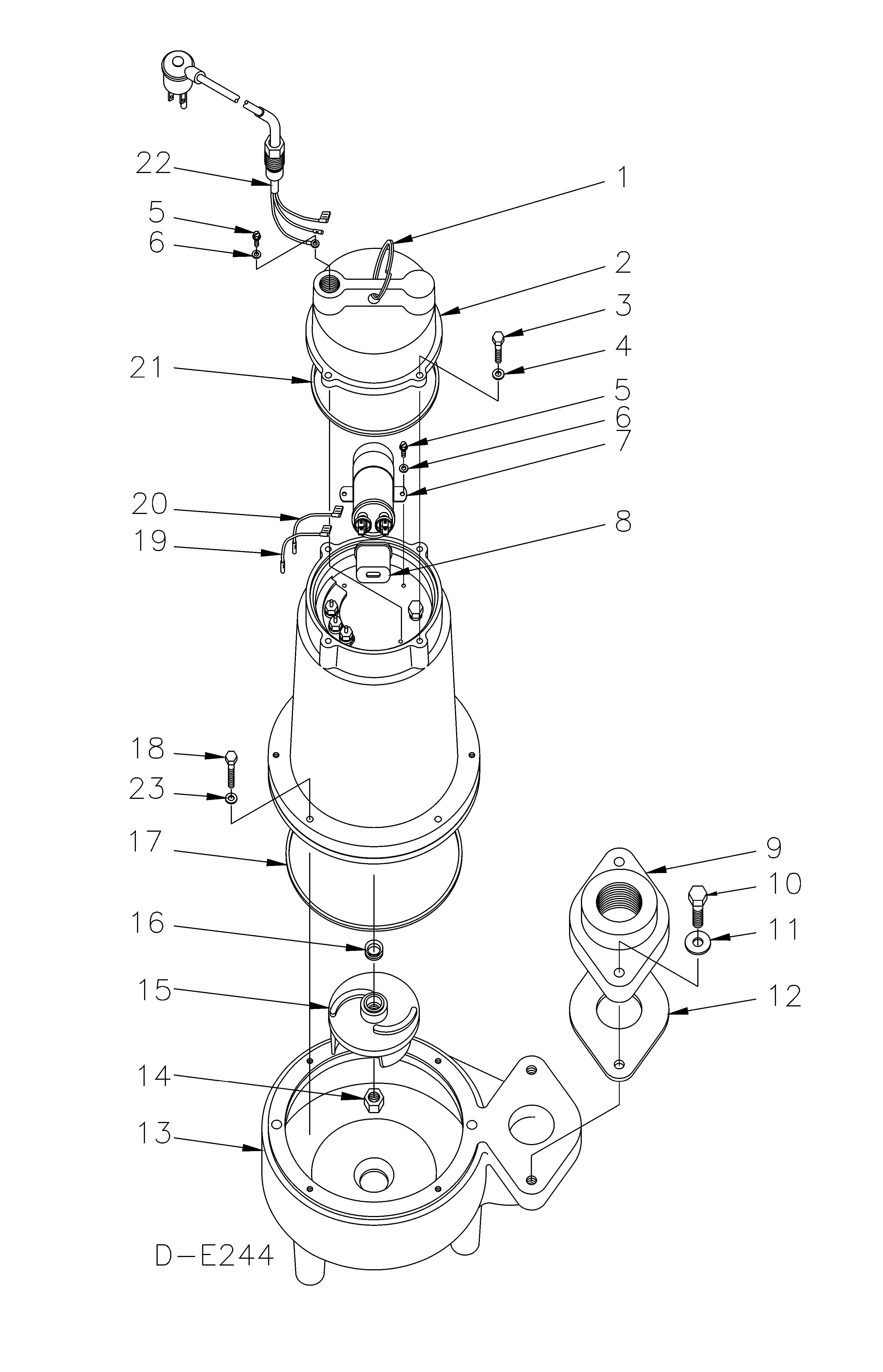

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    01
    01
    114100
    WIRE HANDLE
    Product #:
    Mfg #: 114100
    02
    02
    114051
    COVER- HOUSING
    Product #:
    Mfg #: 114051
    03
    03
    903723
    SCREW- 1/4 - 20 X 3/4
    Product #:
    Mfg #: 903723
    04
    04
    921103
    LOCKWASHER- 1/4
    Product #:
    Mfg #: 921103
    05
    05
    114004
    DISC- FLANGE 2 FNPT
    Product #:
    Mfg #: 114004
    05
    05
    114009
    DISC- FLANGE 3 FNPT
    Product #:
    Mfg #: 114009
    06
    06
    903722
    SCREW- 7/16 - 14 X 11/4
    Product #:
    Mfg #: 903722
    07
    07
    921104
    LOCKWASHER- 7/16
    Product #:
    Mfg #: 921104
    08
    08
    114101
    FLANGE GASKET
    Product #:
    Mfg #: 114101
    09
    09
    114038
    VOLUTE- 14EH/16EH
    Product #:
    Mfg #: 114038
    09
    09
    114043
    VOLUTE- 14S/16S
    Product #:
    Mfg #: 114043
    10
    10
    928033
    SEAL RING- 7.484 I.D.
    Product #:
    Mfg #: 928033
    11
    11
    921105
    LOCKWASHER- 5/16
    Product #:
    Mfg #: 921105
    12
    12
    903724
    SCREW- 5/16 - 18 X 11/4
    Product #:
    Mfg #: 903724
    13
    13
    928034
    SEAL RING- 5.359 I.D.
    Product #:
    Mfg #: 928034

    Wholegoods

    There are no wholegoods available.
