U.S. MOTORS
AQUA-SHIELD EZ48 Pool/Spa Pump 56J ODP C-Flange Motor 2.75THP 208-230V 60Hz
Product #:EMR-60-6187
Mfg. Part #:AST275
U.S. MOTORS AQUA-SHIELD AST275 EZ48 Pool/Spa Pump 56J ODP C-Flange Motor 2.75THP 208-230V 60Hz
U.S. MOTORS
AQUA-SHIELD EZ48 Pool/Spa Pump 56J ODP C-Flange Motor 2.75THP 208-230V 60Hz
Product #:EMR-60-6187
Mfg. Part #:AST275
Description

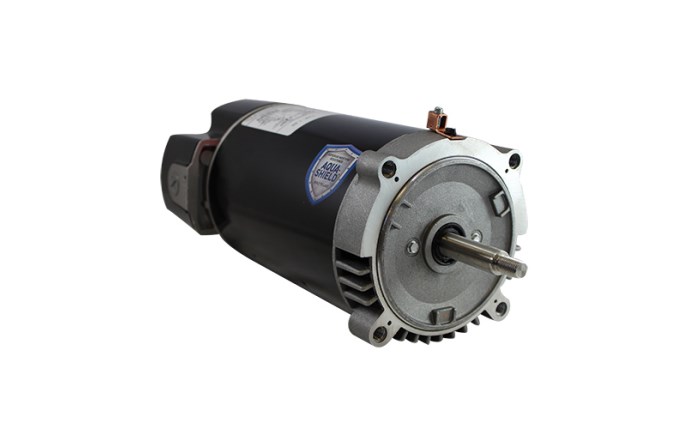

The U.S. MOTORS AST275 is an AQUA-SHIELD EZ48 Pool/Spa Pump 56J ODP C-Flange Motor. It runs at 2.75THP, 208-230V, and 60Hz. C-Flange Motors have threaded mounting holes in the face of the motor. They are typically used when a pump is to be overhung on the motor.
Documents
Branch Availability
content loaded
Specifications
- BrandU.S. MOTORS
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18.5 x 10.5 x 10.5 inch
- ApplicationPool, Spa
- Bearing TypeSealed Ball
- ColorBlack
- Each Product Weight30.2 pound
- Frequency Rating (Hz)60
- Horsepower2.75 horse power
- Insulation ClassF
- Length Less Shaft13 inch
- Material300 Stainless Steel
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Voltage230V
- Flange TypeSquare
- UPC Code786382117771
