AquaStar Pool Products PLP150B Pipeline Pump 1.5HP Base Model
Description
AquaStar Pool Products PLP150B Pipeline Pump 1.5HP Base Model is a high-efficiency full featured pump. This pump is equipped with a totally enclosed fan to keep the mechanism cool and prevent overheating. Inside the fan is a rubber insert that promotes noise reduction for a quieter pump.
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions27 x 12 x 16 inch
- ColorBlack
- Connection Size 12.5 inch
- Connection Size 1 FITSocket
- Connection Size 22 inch
- Connection Size 2 FITSocket
- Each Product Weight44 pound
- Flow Rate Max140 gal/min
- Flow Rate Min38 gal/min
- Horsepower1.5 horse power
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor SpeedVariable
- Pallet Quantity1
- PhaseSingle
- Power Rating1500 watt
- RPMs Max3400
- RPMs Min800
- Standards ApprovalsNSF Certified
- Thrust HP1.5
- Weighted Energy Factor (WEF)7.20
- UPC Code883612101590
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

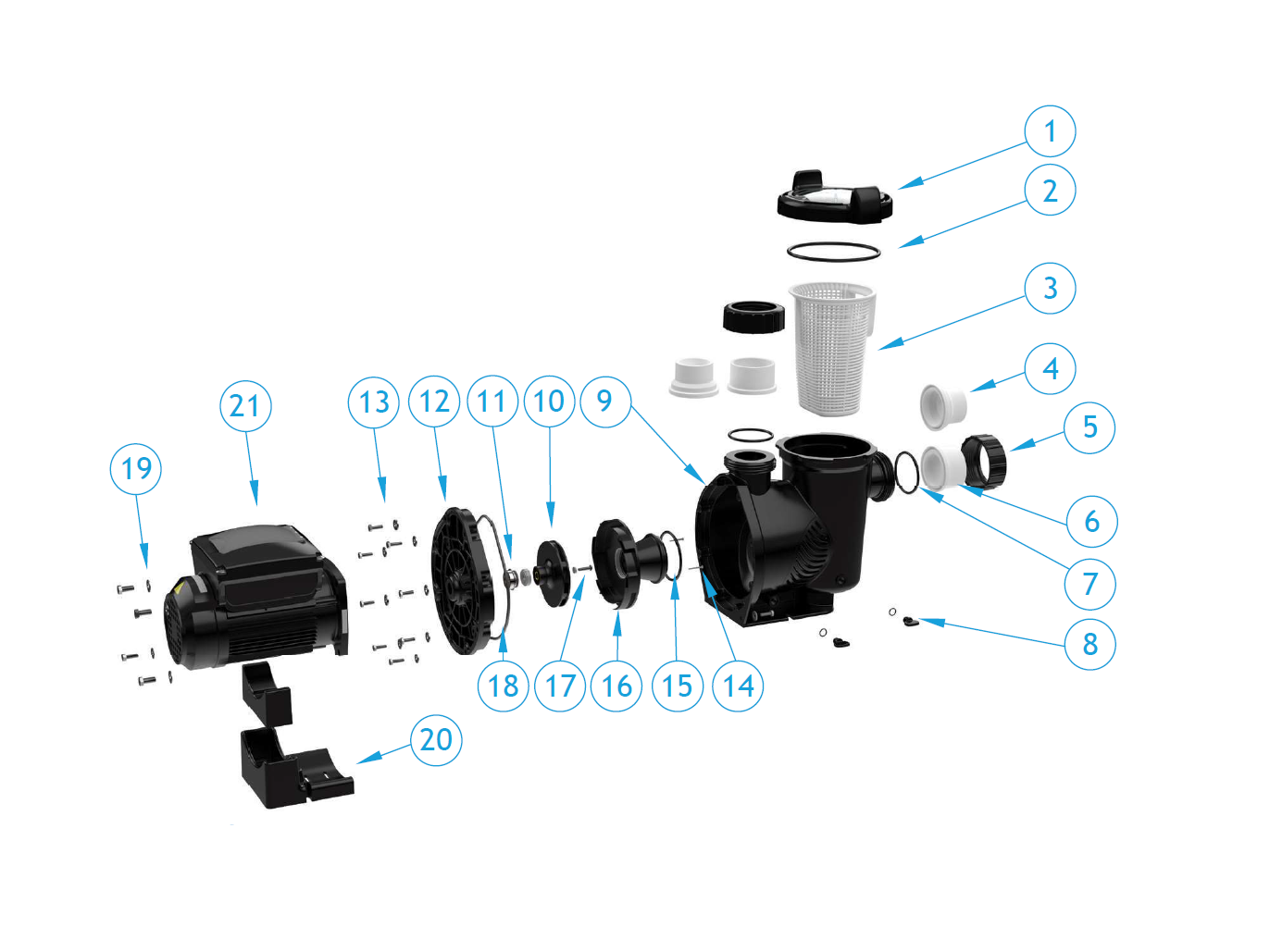

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
AP1101
Pump Locking Ring and Cover
Product #:
Mfg #: AP1101
2
2
O-RING-439-EPDM
O-Ring, #439, EPDM
Product #:
Mfg #: O-RING-439-EPDM
3
4
5
5
AP1103
Nut Union, 2.5" Socket, Quantity 2
Product #:
Mfg #: AP1103
6
6
AP1104
Pump Union, 2.5" Socket, Quantity 2
Product #:
Mfg #: AP1104
7
7
O-RING-338-EPDM
O-Ring, #338, EPDM
Product #:
Mfg #: O-RING-338-EPDM
8
8
AP1105
Drain Plug and O-Ring, #014, A EPDM
Product #:
Mfg #: AP1105
9
9
AP1005
Pump Housing
Product #:
Mfg #: AP1005
10
10
AP1036
Impeller Assembly, 1.5HP
Product #:
Mfg #: AP1036
11
11
AP1051
Seal, Ceramic, PS-3865R
Product #:
Mfg #: AP1051
12
12
AP1006
Seal Plate, Pump
Product #:
Mfg #: AP1006
13
13
AP1106
Screw, 1/4"-20 x 7/8" LG, Hex Head, 18-8-SS and Washer, 3/4"OD x 5/16" ID, USS, 18-8-SS, Quantity 8
Product #:
Mfg #: AP1106
14
14
AP1107
Screw, 4-40 x 1-1/8" LG, Pan Head Phill, 316SS, Quantity 2
Product #:
Mfg #: AP1107
15
15
O-RING-341-EPDM
O-Ring, #341, EPDM
Product #:
Mfg #: O-RING-341-EPDM
