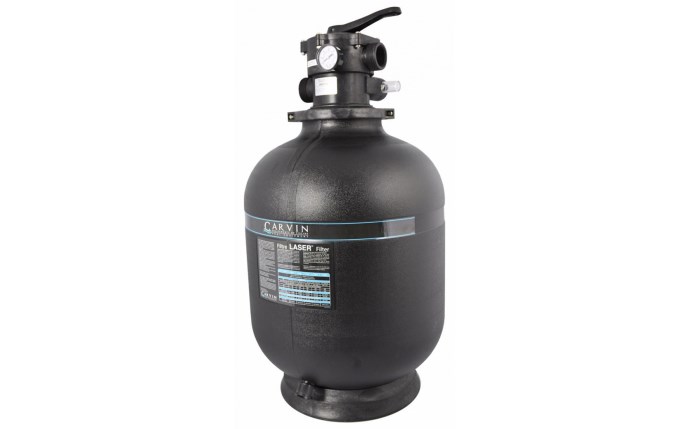

25" Laser 250C Sand Filter L250-CP
Product #:JAC-05-9250
Mfg. Part #:94089250
- This product is obsolete.
- The superceded product was not found.
Laser 94089250 25" Filter with Valve L250C-7
25" Laser 250C Sand Filter L250-CP
Product #:JAC-05-9250
Mfg. Part #:94089250
Description
The Laser Sand Filter has been engineered to evenly direct water across the entire surface of the filter sand without causing sand migration or channeling. The underdrain and side-slotted laterals draw water evenly across the surface of the sand, which allows for higher flows, longer cycles, better filtering and more efficient backwashing.
Documents
Branch Availability
content loaded
Specifications
- ApplicationAbove Ground, Inground, Pool
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight0 pound
- Filtration Area3.3 square feet
- Master Carton Quantity1
- Minimum Sell Quantity1
- Normal Start Up Pressure50 pounds per square inch
- Pallet Quantity1
- Sand Required350 pound
- Turnover 6hrs29700 gallon
- Turnover 8hrs39600 gallon
- UPC Code060993320462

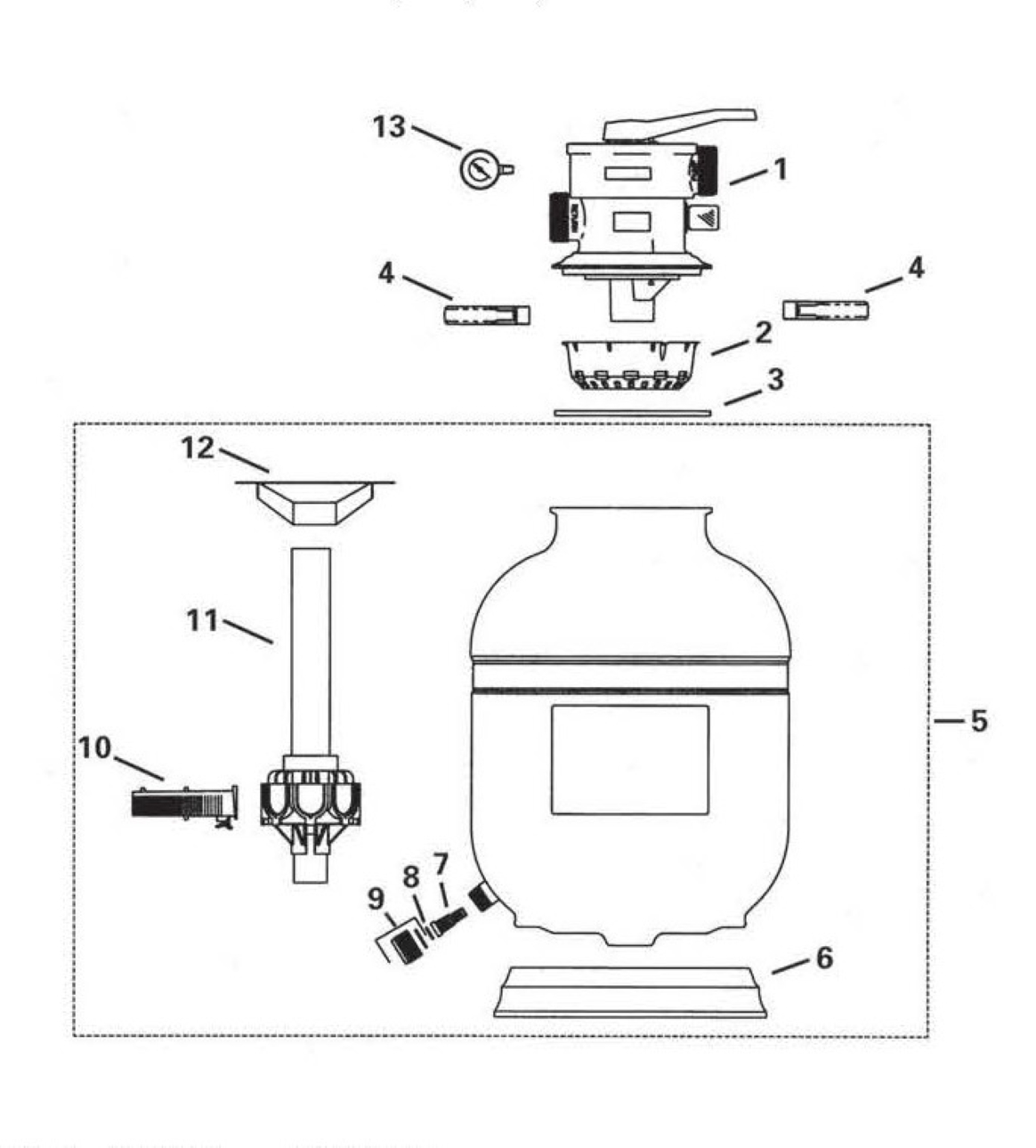

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
39-2589-40-R
5-Position Dial Valve w/O-Ring for L140C
Product #:
Mfg #: 39-2589-40-R
1
1
39-2630-20-R
7-Position Dial Valve w/O-Ring
Product #:
Mfg #: 39-2630-20-R
2
2
43-2811-45-K
Deflector Basket w/Screws
Product #:
Mfg #: 43-2811-45-K
3
3
47-0368-02-R
O-Ring for L140C
Product #:
Mfg #: 47-0368-02-R
3
3
47-0364-47-R
O-Ring - BN
Product #:
Mfg #: 47-0364-47-R
4
4
85-8139-03-K
V-Band Plastic Clamp w/Bolts
Product #:
Mfg #: 85-8139-03-K
5
5
9408-2140
L140C Laser Tank Assembly
Product #:
Mfg #: 9408-2140
5
5
9408-2160
L160C Laser Tank Assembly
Product #:
Mfg #: 9408-2160
5
5
9408-2192
L192C Laser Tank Assembly
Product #:
Mfg #: 9408-2192
5
5
9408-2225
L225C Laser Tank Assembly
Product #:
Mfg #: 9408-2225
5
5
9408-2250
L250C Laser Tank Assembly
Product #:
Mfg #: 9408-2250
6
6
85-8593-00-R
Filter Base
Product #:
Mfg #: 85-8593-00-R
7
7
85-8533-00-R
JAC-051-9749
Product #: JAC-051-9749
Mfg #: 85-8533-00-R
8
8
14-4254-09-R
Drain Nozzle Retainer
Product #:
Mfg #: 14-4254-09-R
9
9
85-8263-00-R
Drain Cap w/Gasket
Product #:
Mfg #: 85-8263-00-R
