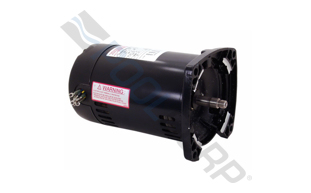

Century® Q3072 3-Phase Pool and Spa Pump Motor; 0.75 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft, Square Flange
Description
This versatile and reliable Pool and Spa Pump Motor is replacement part that can be relied upon when it matters the most. Made from high-quality parts and materials, this motor provides long-lasting dependable performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18 x 9 x 9 inch
- Amps High Speed3.6
- Amps Low Speed1.8
- ApplicationPool
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight19 pound
- Efficiency GroupStandard
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- Insulation ClassB
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size48Y
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Thermal ProtectionNone
- Pallet Quantity40
- PhaseThree
- RPMs Max3450
- RPMs Min3450
- Service Factor1.65
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length0.625 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage208V, 230V
- Commercial, Residential, or ProfessionalCommercial
- Diameter5.625 inch
- Flange MaterialAluminum
- Flange TypeSquare
- Frame MaterialRolled Steel
- Motor RatingFull-Rated
- UPC Code786674029263
