National Diversified Sales

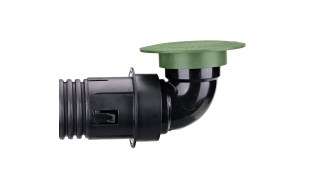

Green Plastic Spring Loaded Pop-Up Drainage Emitter w/ Elbow for 3" & 4" Pipes

Product #:NDS-37-1132

Mfg. Part #:430

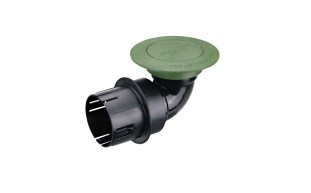

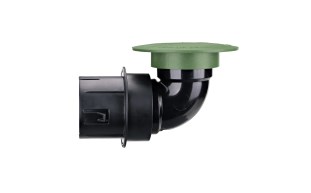

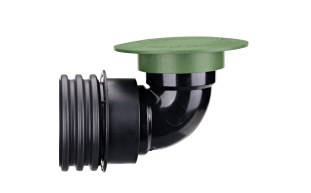

National Diversified Sales 430 Green Plastic Spring Loaded Pop-Up Drainage Emitter w/ Elbow for 3" & 4" Pipes

National Diversified Sales

Green Plastic Spring Loaded Pop-Up Drainage Emitter w/ Elbow for 3" & 4" Pipes

Product #:NDS-37-1132

Mfg. Part #:430

Description

Use the National Diversified Sales 430 Green Plastic Spring Loaded Pop-Up Drainage Emitter w/ Elbow for 3" & 4" Pipes to safely discharge collected water away from structures, erosion-prone landscapes, and poor drainage areas. The Pop-Up Drainage Emitter with Elbow and Adapter connects to 3 in. & 4 in. single-wall corrugated pipes and 4 in. Sch. 40 pipe; remove the adapter to connect to 3 in. sewer and drain pipe and triple-wall pipe. When water pressure builds, the spring-loaded cap “pops up” as high as 1 in. to release water at up to 56 GPM. Cover closes automatically once the flow diminishes. Cap and cover is made of high-density polyethylene (HDPE) and the elbow is made of polyvinyl chloride (PVC).

Documents

No documents available

Feature Bullets

  • Provides a downstream point of release for water collected upstream
  • Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas

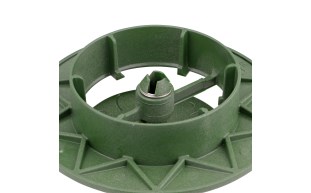

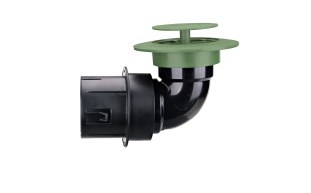

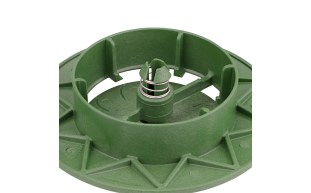

  • Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds and closes as flow diminishes; when not in use, cap stays closed to keep debris and rodents out of drain

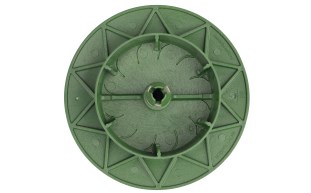

  • Flange design prevents grass from growing over the cover
  • Small weep hole in elbow drains out any water in the pipe to prevent stagnation or freezing in cold weather
  • Flat profile design reduces trip hazard posed by open drain; closed position keeps emitter flush to the ground and safe from lawn mower blades
  • Rounded contours on interior edges reduce the potential for clogging and internal ribs provide durability and strength
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationOutdoor
    • Shipping Dimensions24.75 x 12.38 x 20.75 inch
    • ColorGreen
    • Each Product Weight1.3 pound
    • Flow Rate56 gal/min
    • Grate ColorGreen
    • Master Carton Quantity20
    • MaterialPolyethylene (plastic), PVC or Polyvinyl Chloride
    • Minimum Sell Quantity1
    • Pallet Quantity240
    • Pipe Diameter3 inch
    • UPC Code052063003146
