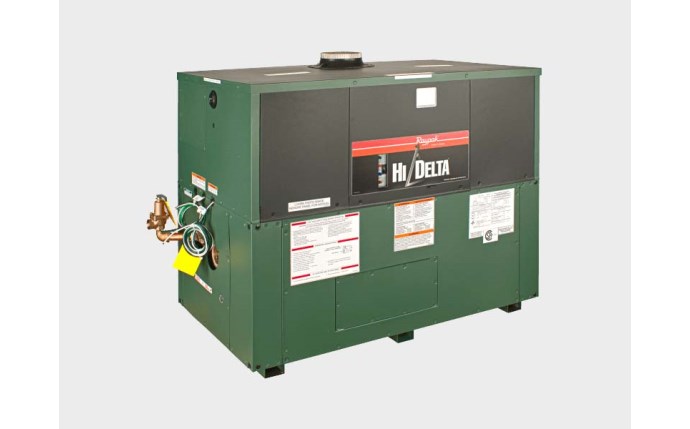

Raypak Hi Delta 016095 P-502C 500K LP IID Cold Run Heater
Description
Raypak’s Hi Delta is easy to install, operate and service. The Hi Delta has a patented burner with an innovative design that provides an optimized air-gas pathway for complete combustion. This makes the Hi Delta the most adaptable sealed-combustion heater on the market today. The touch panel display on the Hi Delta includes onboard diagnostics. In the event of any system problems, technicians can quickly review the fault history of the unit.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- Shipping Dimensions25 x 50 x 35 inch
- BTU Output415500 British thermal unit
- ColorGreen
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight730 pound
- Flow Rate Max90 gal/min
- Flow Rate Min21 gal/min
- Fuel TypePropane
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- UPC Code840328412501
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

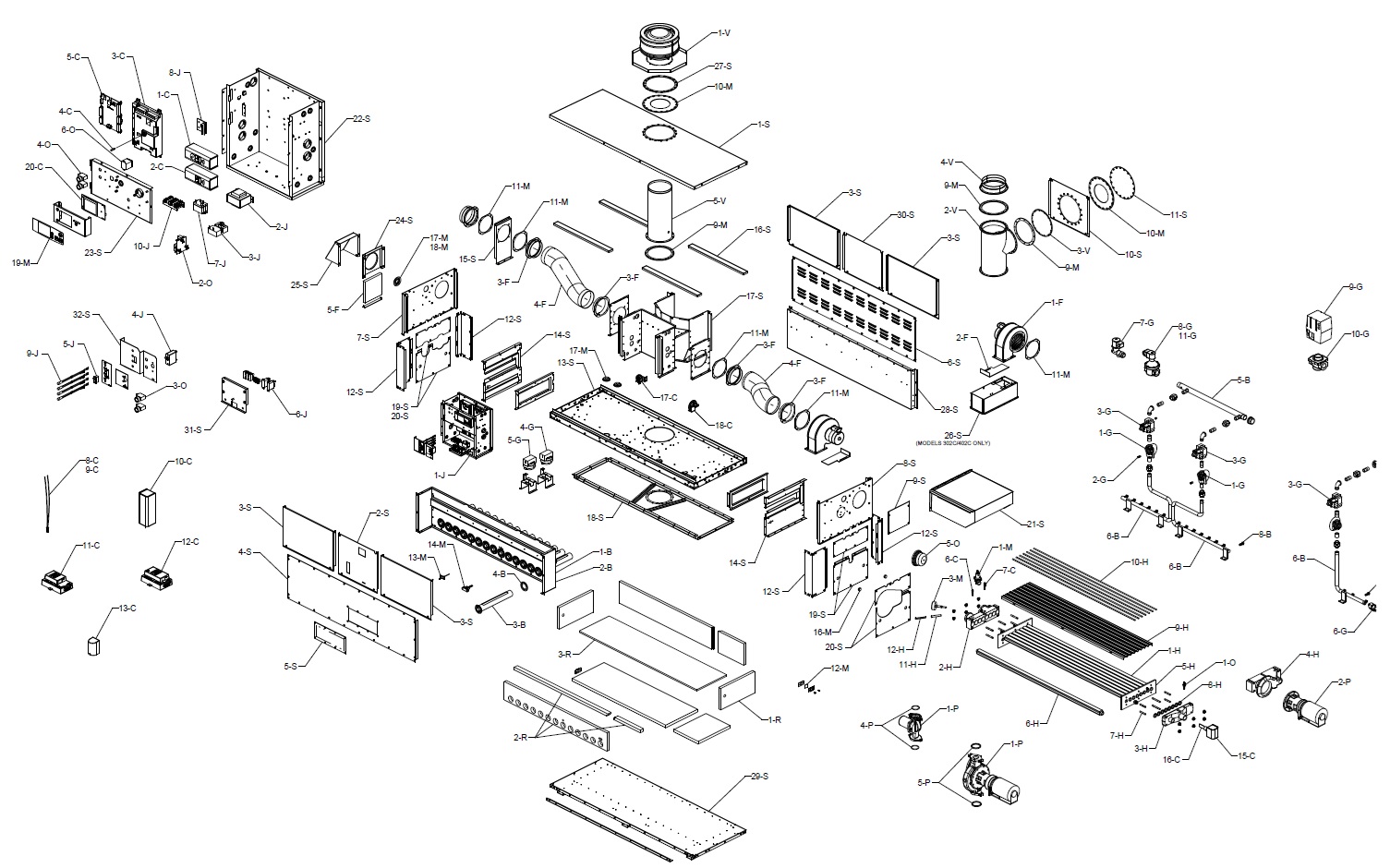

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
009719F
Burner Assy w/Burners
Product #:
Mfg #: 009719F
2-B
2-B
009725F
Burner Mounting Assy
Product #:
Mfg #: 009725F
3-B
3-B
007442F
RAY-151-1901
Product #: RAY-151-1901
Mfg #: 007442F
4-B
5-B
5-B
007444F
Manifold Upper
Product #:
Mfg #: 007444F
6-B
6-B
007448F
Manifold Lower
Product #:
Mfg #: 007448F
8-B
8-B
100-10000649
RAY-151-0273
Product #: RAY-151-0273
Mfg #: 100-10000649
Notes:
QTY 10, DO NOT re-orifice for elevations above 4500 ft. Consult the factory for changes required for proper combustion at elevations above 4500 ft.1-C
1-C
1-C
008081F
Manual-Reset Adjustable High Limit 200°F Max
Product #:
Mfg #: 008081F
1-C
2-C
2-C
007141F
Auto-Reset Adjustable High Limit 240°F Max
Product #:
Mfg #: 007141F
2-C
2-C
012546F
Auto-Reset Adjustable High Limit 200°F Max
Product #:
Mfg #: 012546F
2-C
2-C
006445F
Auto-Reset Adjustable High Limit 180°F Max
Product #:
Mfg #: 006445F
3-C
3-C
015997F
PIM (Platform Ignition Module) Multi-Try
Product #:
Mfg #: 015997F
3-C
3-C
015998F
PIM (Platform Ignition Module) Single-Try CSD-1
Product #:
Mfg #: 015998F
