V2 Self Propelled Walk Behind Gas Mower 21" Deck

Product #:EPE-59-1036

Mfg. Part #:LM-2119SPV2


Echo LM-2119SPV2 V2 Self Propelled Walk Behind Gas Mower 21" Deck

Echo

V2 Self Propelled Walk Behind Gas Mower 21" Deck

Product #:EPE-59-1036

Mfg. Part #:LM-2119SPV2

EA

Description

The ECHO LM-2119SP Self-Propelled Mower, designed for up to an acre, features a 190cc Briggs & Stratton® engine and variable-speed self-propelled system. It offers a 3-in-1 cutting system, dual blades, and adjustable mowing height for excellent performance on various terrains.

Documents

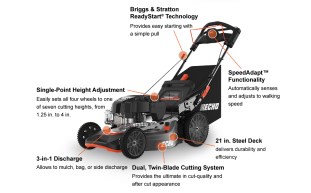

Feature Bullets

  • 190cc Briggs & Stratton engine: Delivers reliable power
  • ReadyStart® technology: For easy starting in any weather
  • 3-in-1 discharge capability: For mulching, rear bagging or side discharge
  • Large 21 in. diameter heavy-duty steel deck: Delivers durability and efficiency
  • Ball-Bearing supported wheels: 11 in. rear and 8" front ball-bearing supported wheels tackle any terrain
  • Dual-blade design: Ensures top-notch cut quality

    • Branch Availability

    content loaded

    Specifications

    • BrandEcho
    • ApplicationLandscaping
    • Shipping Dimensions42.12 x 22.44 x 17.32 inch
    • Back Wheel Size11 inch
    • ChannelMaintenance Channel
    • ColorOrange, Black
    • Commercial, Residential, or ProfessionalResidential
    • Cutting Height Options7
    • Deck Width21 inch
    • Each Product Weight90.4 pound
    • Engine Displacement190 cubic centimeter
    • Front Wheel Size8 inch
    • Lawn Mower TypeSelf-Propelled
    • Max Cutting Height4 inch
    • Minimum Cutting Height1.25 inch
    • Minimum Sell Quantity1
    • Pallet Quantity6
    • Power TypeGas
    • Start TypePull Cord
    • Warranty - General5 years
    • UPC Code743184028872

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

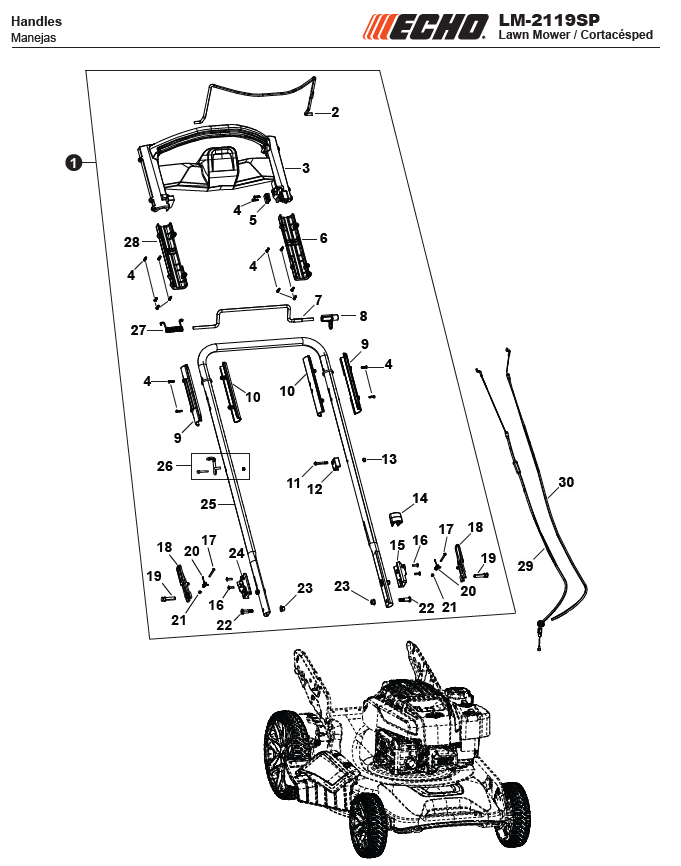

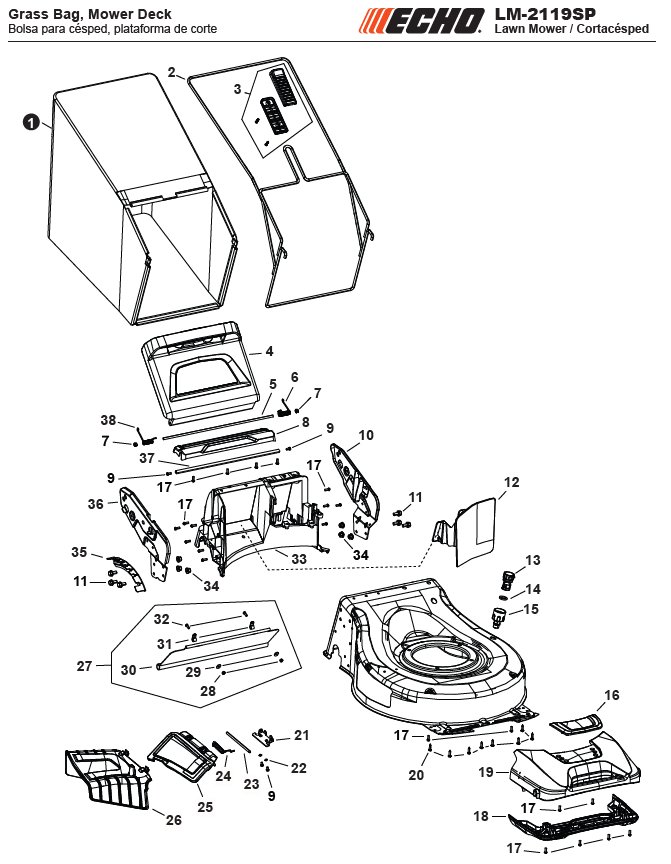

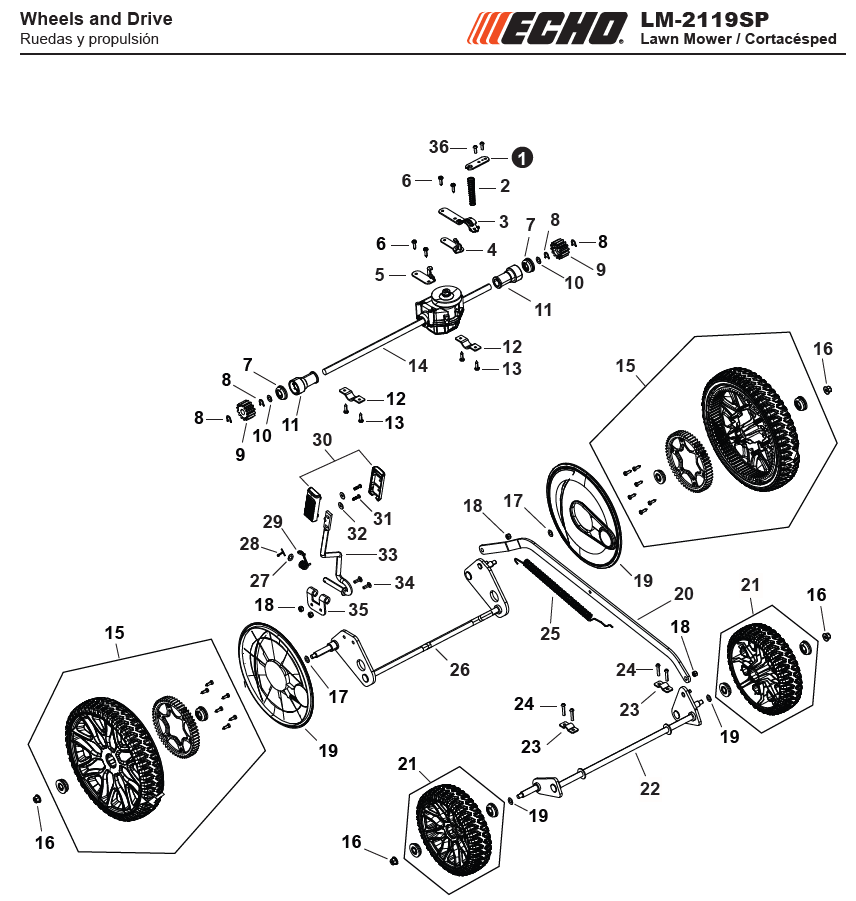

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    YH653001820
    LABEL, BRAND
    Product #:
    Mfg #: YH653001820
    Notes:

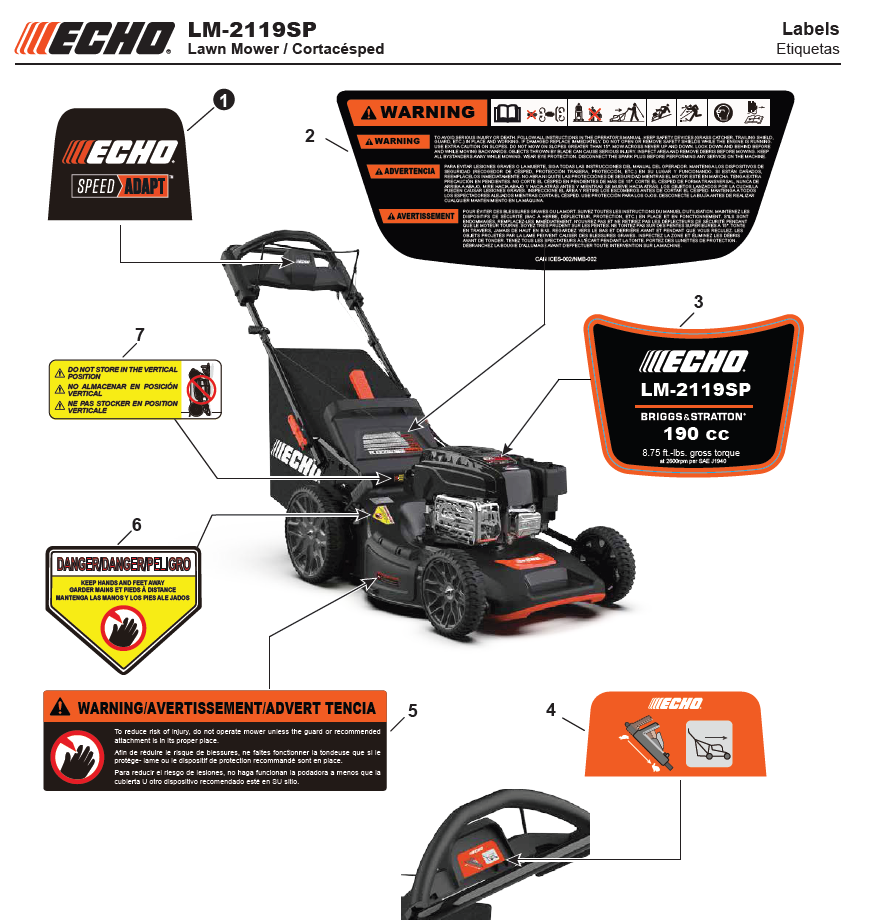

    Labels
    2
    2
    YH653001830
    LABEL, REAR COVER WARNING
    Product #:
    Mfg #: YH653001830
    Notes:
    Labels
    3
    3
    YH653001870
    LABEL, MODEL
    Product #:
    Mfg #: YH653001870
    Notes:
    Labels
    4
    4
    YH653001850
    LABEL, SELF-PROPEL
    Product #:
    Mfg #: YH653001850
    Notes:
    Labels
    5
    5
    YH653001860
    LABEL, WARNING
    Product #:
    Mfg #: YH653001860
    Notes:
    Labels
    6
    6
    YH653001840
    LABEL, DANGER
    Product #:
    Mfg #: YH653001840
    Notes:
    Labels
    7
    7
    YH653003040
    LABEL, NO VERTICAL STORAGE
    Product #:
    Mfg #: YH653003040
    Notes:
    Labels
    1
    1
    YH475000300
    SPACER
    Product #:
    Mfg #: YH475000300
    Notes:

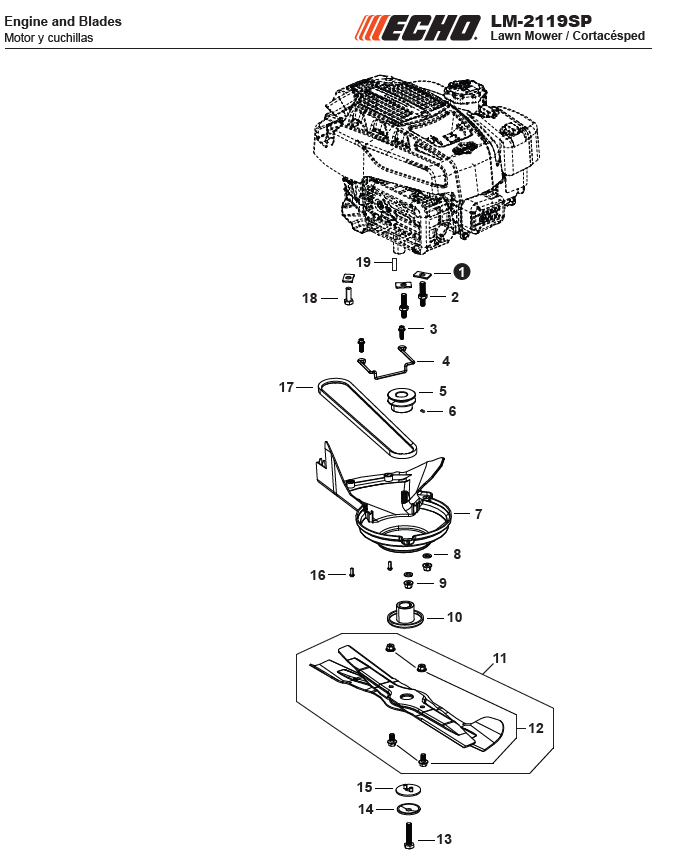

    Engine and Blades, Qty 3
    2
    2
    YH435000830
    BOLT, ENGINE MOUNTING
    Product #:
    Mfg #: YH435000830
    Notes:
    Engine and Blades, Qty 2
    3
    3
    YH427000010
    SCREW
    Product #:
    Mfg #: YH427000010
    Notes:
    Engine and Blades, Qty 2
    4
    4
    YH466000790
    GUIDE, BELT
    Product #:
    Mfg #: YH466000790
    Notes:
    Engine and Blades
    5
    5
    YH472000170
    PULLEY, DRIVE
    Product #:
    Mfg #: YH472000170
    Notes:
    Engine and Blades
    6
    6
    YH421000000
    SCREW, SET
    Product #:
    Mfg #: YH421000000
    Notes:
    Engine and Blades
    7
    7
    YH479003060
    GUARD, BELT
    Product #:
    Mfg #: YH479003060
    Notes:
    Engine and Blades
    8
    8
    YH451000590
    WASHER
    Product #:
    Mfg #: YH451000590
    Notes:
    Engine and Blades, Qty 2
