1.5" Inlet Inline Plastic Industrial Irrigation Valve

Product #:RBD-58-1505

Mfg. Part #:B34383

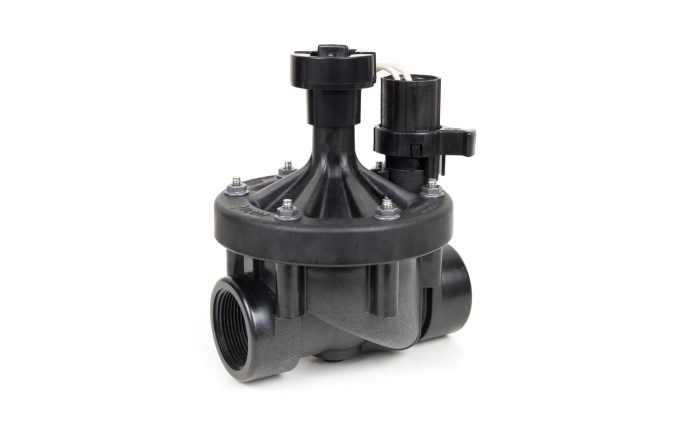

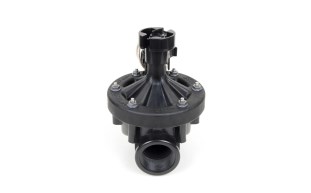

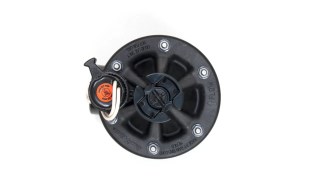

Rain Bird B34383, 150Peb, 1.5" Inlet Inline Plastic Industrial Irrigation Valve

Rain Bird

1.5" Inlet Inline Plastic Industrial Irrigation Valve

Product #:RBD-58-1505

Mfg. Part #:B34383

Description

The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

Documents

No documents available

Feature Bullets

  • 1 1/2 in. (40/49) plastic industrial irrigation valve
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
  • Globe configuration
  • Normally closed, forward flow design
  • Slow closing to prevent water hammer and subsequent system damage
  • Low flow capability for a wide range of applications
  • One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
  • Flow control handle adjusts water flows as needed
  • Solenoid handle is not included

    • Branch Availability

    content loaded

    Specifications

    • BrandRain Bird
    • ApplicationGarden, Landscaping, Lawn, Outdoor
    • Shipping Dimensions2.88 x 1.99 x 1.05 inch
    • ColorBlack
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight2.9062 pound
    • Holding Current0.14 amperage
    • Inlet Diameter1.5 inch
    • Inrush Current0.41 amperage
    • Master Carton Quantity8
    • MaterialPlastic
    • Minimum Sell Quantity1
    • Pallet Quantity120
    • Pressure Rating Max200 pounds per square inch
    • Pressure Rating Min20 pounds per square inch
    • Valve ColorBlack
    • Valve Flow Max200 gal/min
    • Valve Flow Min0.25 gal/min
    • Valve MaterialPlastic
    • Valve TypeInline
    • Working Temperature Max150 degrees Fahrenheit
    • UPC Code739460002568
