Rain Bird

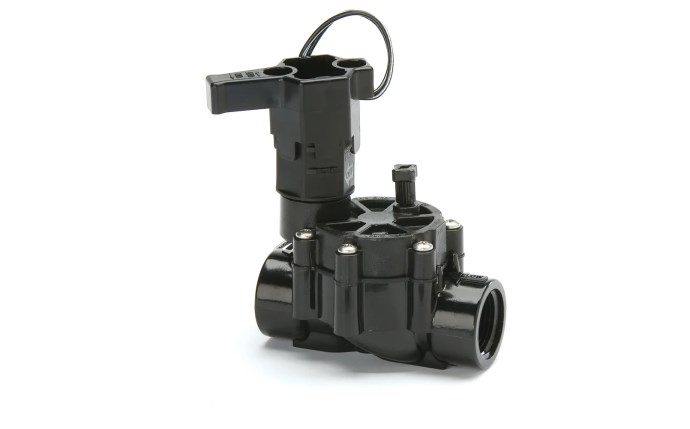

100DV 1" Inline Plastic Residential Irrigation Valve

Product #:RBD-58-1520

Mfg. Part #:B72231


Rain Bird B72231 100DV 1" Inline Plastic Residential Irrigation Valve NPT Threads

Rain Bird

100DV 1" Inline Plastic Residential Irrigation Valve

Product #:RBD-58-1520

Mfg. Part #:B72231

Description

The Rain Bird DV/DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.

Documents

Feature Bullets

  • External bleed to manually flush the system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
  • Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
  • Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter

    • Branch Availability

    content loaded

    Specifications

    • BrandRain Bird
    • ApplicationLandscaping
    • Shipping Dimensions0.92 x 0.73 x 0.38 inch
    • Each Product Weight0.9525 pound
    • Master Carton Quantity20
    • MaterialPlastic
    • Minimum Sell Quantity1
    • Pallet Quantity400
    • Pressure Rating Max150 pounds per square inch
    • Pressure Rating Min15 pounds per square inch
    • Product Height4.5 inch
    • Product Width3.33 inch
    • Valve Flow Max22 gal/min
    • Valve Flow Min0.2 gal/min
    • Valve MaterialPlastic
    • Valve TypeInline
    • UPC Code739460014042
