Billy Goat

33" QV QuiteVac™ Industrial Duty Vacuum with Honda Engine 270CC

Product #:BLG-59-1082

Mfg. Part #:QV901HSP


Billy Goat® QV QuiteVac™ QV901HSP 33" Industrial Duty Vacuum with Honda Engine 270CC and Hydro-Drive Transmission

Billy Goat

33" QV QuiteVac™ Industrial Duty Vacuum with Honda Engine 270CC

Product #:BLG-59-1082

Mfg. Part #:QV901HSP

EA

Description

Billy Goat’s new 33” QuietVac™ touts the lowest noise level in its class and features unique cyclonic filtration, along with exclusive dust sock technology that dramatically reduces dust in dry conditions, and takes our industrial class hard surface unit to the next level. The unit replaces our legacy VQ series and is ideal for wide area commercial, industrial and municipal cleanup applications such as tarmac, school campuses, hospitals, hotels, parks, churches, airport pedestrian areas, resorts, city streets and sidewalks! QuietVac™ is the first pedestrian vacuum that has a shift-on-the-fly, hydrostatic transmission with infinite forward and reverse speeds making the unit nimble and easy to maneuver in tight areas, wide open areas or while driving or pushing manually.

Documents

No documents available

Branch Availability

content loaded

Specifications

  • BrandBilly Goat
  • ChannelMaintenance Channel
  • Shipping Dimensions56 x 33 x 54 inch
  • Each Product Weight285 pound
  • Minimum Sell Quantity1
  • Commercial, Residential, or ProfessionalResidential
  • Warranty - General4 years

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
350346
NUT FLANGE 5/16"-18 ZP
Product #:
Mfg #: 350346
Notes:
Nozzle Assembly A Qty 6
2
2
8024059
BOLT CARRIAGE 3/8"-16 X 1 1/4" ZP
Product #:
Mfg #: 8024059
Notes:
Nozzle Assembly A Qty 2
7
7
8160002
NUT LOCK 5/16"-18 HEX Z/P
Product #:
Mfg #: 8160002
Notes:

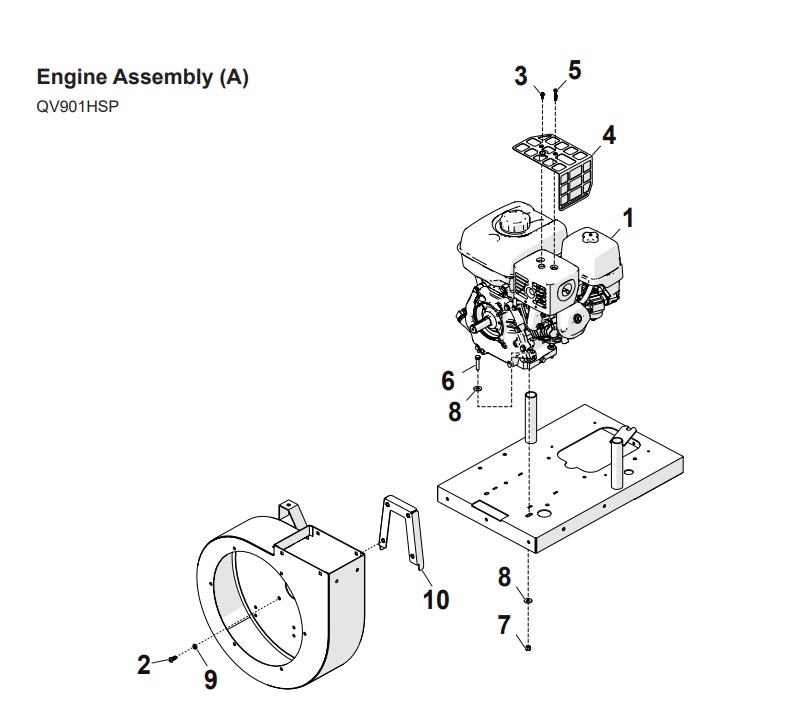

Engine Assembly A Qty 4
13
13
8160003
NUT LOCK 3/8"-16 HEX
Product #:
Mfg #: 8160003
Notes:
Drive Assembly A Qty 1
8
8
8171003
WASHER 5/16" FLATWASHER Z/P
Product #:
Mfg #: 8171003
Notes:
Engine Assembly A Qty 8
6
6
831100
NOZZLE 32"
Product #:
Mfg #: 831100
Notes:
Nozzle Assembly A Qty 1
7
7
831109
PLATE NOZZLE QV WA
Product #:
Mfg #: 831109
Notes:
Nozzle Assembly A Qty 1
8
8
831211
CAP 5" VINYL BLACK
Product #:
Mfg #: 831211
Notes:
Nozzle Assembly A Qty 1
9
9
840082
SCREW PLASTITE 1/4-10 X 3/4 HWH ZP
Product #:
Mfg #: 840082
Notes:
Nozzle Assembly A Qty 1
1
1
373403
SPACER, IDLER SPROCKET
Product #:
Mfg #: 373403
Notes:

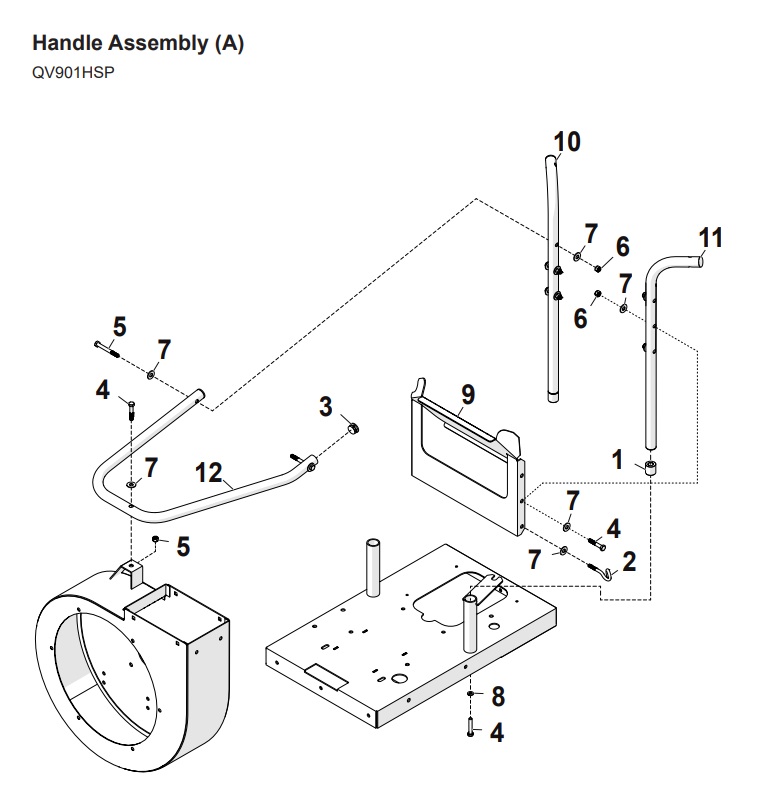

Handle Assembly A Qty 2
2
2
440280
EYEBOLT, PIGTAIL 5/16"-18 X 1 1/4"
Product #:
Mfg #: 440280
Notes:
Handle Assembly A Qty 1
3
3
5106028
PLUG, 1" TUBE, ROUND
Product #:
Mfg #: 5106028
Notes:
Handle Assembly A Qty 4
6
6
8041031
SCREWCAP 5/16"-18X1 3/4" HCS ZP
Product #:
Mfg #: 8041031
Notes:
Engine Assembly A Qty 4
5
5
8041035
SCREWCAP 5/16"-18X2 3/4" HCS ZP
Product #:
Mfg #: 8041035
Notes:
Handle Assembly A Qty 2
9
9
8177011
WASHER LOCK 5/16 ST MED
Product #:
Mfg #: 8177011
Notes:
Engine Assembly A Qty 4

Wholegoods

There are no wholegoods available.
