shindaiwa 66011 Multi-Tool PowerBroom
EA
Description
Shindaiwa's Multi-Tool PowerBroom™ is perfect for cleaning gravel, mulch, and other debris from grass or artificial turf. Its robust design ensures efficient and thorough cleanup, making it an essential tool for maintaining pristine landscapes and turf areas. Versatile and reliable for all your cleaning needs.
Documents
No documents available
Branch Availability
content loaded
Specifications
- Brandshindaiwa
- ChannelMaintenance Channel
- Shipping Dimensions30 x 12 x 12 inch
- Each Product Weight11 pound
- Minimum Sell Quantity1
- ApplicationLandscaping
- ColorGray, Black
- Commercial, Residential, or ProfessionalResidential
- UPC Code743184014745
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1

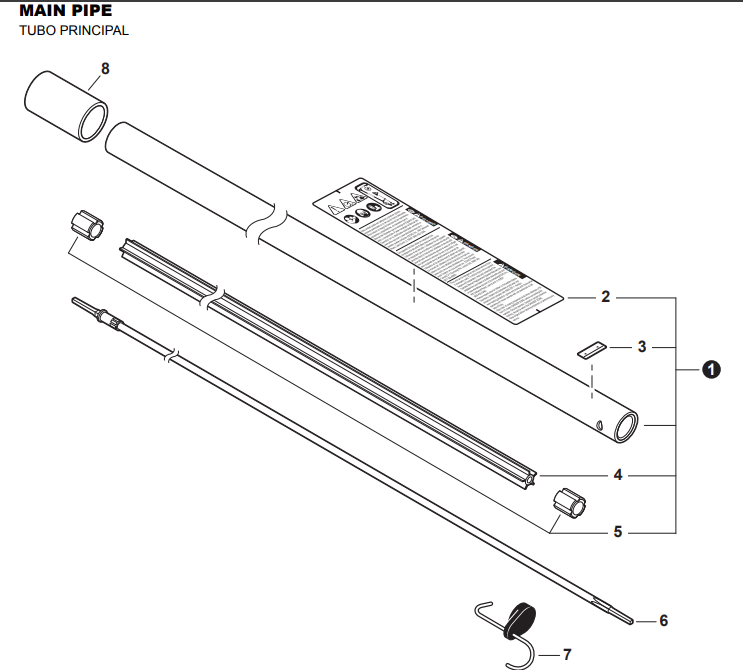

C050003240
Main Pipe Assy
Product #:
Mfg #: C050003240
Notes:
Main Pipe2
2
X505009770
Label, Caution
Product #:
Mfg #: X505009770
Notes:
Main Pipe3
3
89015204930
Label - Alignment
Product #:
Mfg #: 89015204930
Notes:
Main Pipe4
5
6
6
C506000480
EPE-591-4033
Product #: EPE-591-4033
Mfg #: C506000480
Notes:
Main Pipe7
7
P021047620
Hanger, Attachment
Product #:
Mfg #: P021047620
Notes:
Main Pipe8
8
E178000000
Protector, Main Pipe 25 MM
Product #:
Mfg #: E178000000
Notes:
Main Pipe1
1

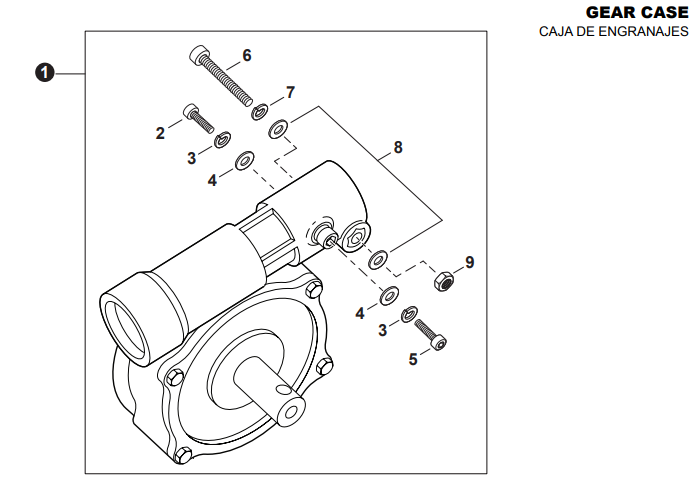

C051000021
Gear Case Assy
Product #:
Mfg #: C051000021
Notes:
Gear Case2
3
3
90060500005
EPE-591-2040
Product #: EPE-591-2040
Mfg #: 90060500005
Notes:
Gear Case4
5
6
6
50507
Screw, Socket Head 6x30
Product #:
Mfg #: 50507
Notes:
Gear Case7
7
50511
Washer, Lock M6
Product #:
Mfg #: 50511
Notes:
Gear CaseWholegoods
There are no wholegoods available.
