Belgard

5 3/4" x 9-5/8" TS-B201 10-30V 8W High Power In-Ground Well Light

Product #:ANO-96-1002

Mfg. Part #:70551383

  • This product is obsolete.
  • The superceded product was not found.

Belgard 70551383 5 3/4" x 9-5/8" TS-B201 10-30V 8W High Power In-Ground Well Light

Belgard

5 3/4" x 9-5/8" TS-B201 10-30V 8W High Power In-Ground Well Light

Product #:ANO-96-1002

Mfg. Part #:70551383

Description

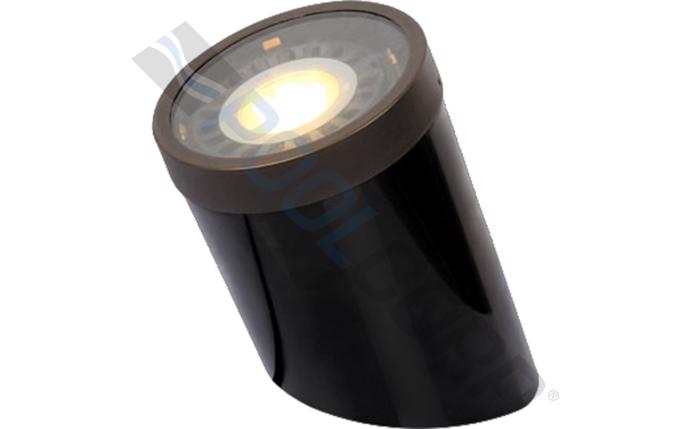

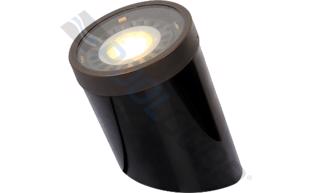

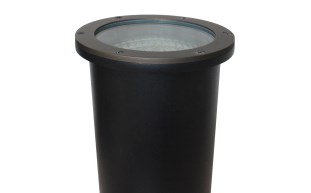

Belgard 70551383 5 3/4" x 9-5/8" TS-B201 10-30V 8W High Power In-Ground Well Light. Our professional grade B201 LED low voltage landscape Well Lights are a heavy-duty brass cap on top of a black PVC ground housing used to highlight focal point plants or trees or to light up a wall, statue or fountain. Our Well Light features a 120 degree light beam, heat resistant glass and a PVC housing for easy install. Our Well Lights are available in Black or Bronze color.

Feature Bullets

  • Construction: Heavy Duty Die-Cast Brass and PVC Lower Housing.
  • Finish: Black Powder Coat or Antique Brushed Bronze
  • Lead Wire: 36” (Standard) 18AWG, SPT-1W black waterproof wire.
  • Glass or Lens: Clear Tempered Glass Lens.
  • Light Source (included): PAR36 8W 120° 750 Lumen 2700K LED Lamp.
  • Maximum Lamp Rating: 50W
  • Recommended Lamp Rating: 50W
  • Operating Voltage: 12V AC
  • Shipping Weight: 1.76 lbs
  • Powered By: Low Voltage Transformer (Sold Separately)
  • Heavy Duty Die-Cast Brass Construction with a PVC Lower Housing.
  • Powder Coat or Bronzing Finish – Protects fixture from wear and corrosion.
  • Beryllium Copper Socket – More corrosion resistant than copper.
  • Water Tight Gasket Ring – Keeps water from entering housing.
  • Heat Resistant Tempered Glass Lens.
  • Easy LED Bulb Replacement.
  • 120 Degree Light Beam Spread.
  • Comes with (2) Silicone Filled Wire Connectors - Rated for direct burial and outdoor use.
  • Branch Availability

    content loaded

    Specifications

    • BrandBelgard
    • Each Product Weight7 pound
    • Shipping Dimensions5.75 x 0.75 x 9.63 inch
    • Minimum Sell Quantity1
    • ApplicationInground
    • Average Life30000 hours
    • Beam Spread (deg)120
    • ColorBrown, Black
    • Commercial, Residential, or ProfessionalCommercial, Professional, Residential
    • DimmableFalse
    • FinishAntique, Powder Coated
    • Fixture TypeWell Light
    • Lead Wire Length36 inch
    • Lens TypeClear Tempered Glass Lens.
    • Lighting Product TypeAccent Lights
    • Lighting StyleModern
    • Master Carton Quantity1
    • MaterialCast Brass
    • MountingSingle Post to Floor
    • Overall Height9.625
    • Pallet Quantity1
    • Product Height9.625 inch
    • Product Weight1.76 pound
    • Product Width5.75 inch
    • Wattage8 watt
