350 lbs Capacity Tan Ranger 2 Pool Lift without Anchor

Product #:ACP-42-4079

Mfg. Part #:F-RNGR2-T


Aqua Creek F-RNGR2-T 350 lbs Capacity Tan Ranger 2 Pool Lift without Anchor

Aqua Creek

350 lbs Capacity Tan Ranger 2 Pool Lift without Anchor

Product #:ACP-42-4079

Mfg. Part #:F-RNGR2-T

Description

The Ranger 2 is the new version of our extremely popular lift, The Ranger. This new ADA compliant lift features a field reversible design, 350 pound weight capacity, UL Certification, and comes standard with a 14 inch deck to water draft. his lift is designed to be independently operated by the user, allowing full control of the lift with an easy to use 2 button handset.

Documents

Feature Bullets

  • UL Certified
  • 350 lb (160 kg) weight capacity
  • Setback range 14.5″ to 19″ (37 – 48 cm)
  • 14″ Water draft
  • Field reversible and Adjustable base plate
  • All stainless steel construction and durable powder coat finish
  • Water resistant handset
  • Rechargeable battery with wall mount charger
  • Five year pro-rated electronics warranty
  • Five year structural warranty

    • Branch Availability

    content loaded

    Specifications

    • BrandAqua Creek
    • ApplicationPool Deck
    • Shipping Dimensions57 x 43 x 33 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight160 pound
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Weight Capacity350 pound
    • ColorTan
    • FinishPowder Coated
    • MaterialStainless Steel
    • UPC Code0811628020420

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

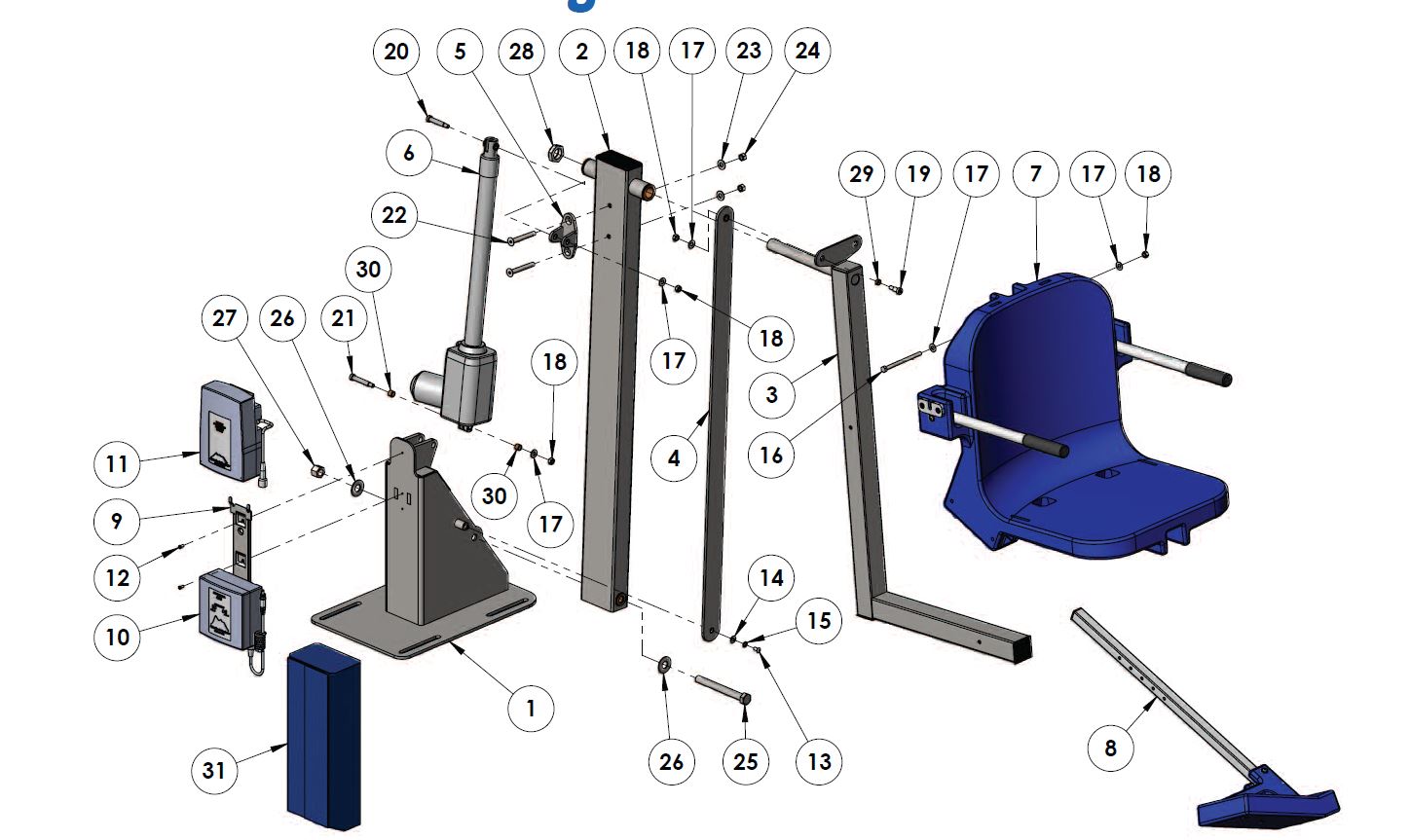

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    PF2-100-02
    BASE WELDMENT
    Product #:
    Mfg #: PF2-100-02
    2
    2
    PF2-200-03
    MAIN FRAME ASSEMBLY
    Product #:
    Mfg #: PF2-200-03
    3
    3
    PF2-300-03
    CHAIR CRADLE ASSEMBLY
    Product #:
    Mfg #: PF2-300-03
    4
    4
    PF2-400-04
    CONTROL ARM
    Product #:
    Mfg #: PF2-400-04
    5
    5
    PF2-500-00
    BRACKET ASSEMBLY
    Product #:
    Mfg #: PF2-500-00
    6
    6
    340665-00
    LINAK 400MM PULL ACTUATOR
    Product #:
    Mfg #: 340665-00
    7
    7
    SA-0904CA-A
    CHAIR ASSEMBLY
    Product #:
    Mfg #: SA-0904CA-A
    8
    8
    F-0904FRA
    FOOTREST ASSEMBLY
    Product #:
    Mfg #: F-0904FRA
    10
    10
    VCB10
    VITO CONTROL BOX
    Product #:
    Mfg #: VCB10
    11
    11
    VCP100-29800
    24V VITO BATTERY
    Product #:
    Mfg #: VCP100-29800
    12
    12
    BSH 10 X 3/8
    10-24 X 3/8 SHCS
    Product #:
    Mfg #: BSH 10 X 3/8
    13
    13
    BB 1/4 X 1/2
    1/4-20 X 1/2 BHSCS
    Product #:
    Mfg #: BB 1/4 X 1/2
    14
    14
    WF 1/4
    1/4 FLAT WASHER
    Product #:
    Mfg #: WF 1/4
    15
    15
    WL 1/4
    1/4 LOCK WASHER
    Product #:
    Mfg #: WL 1/4
    16
    16
    BH 5/16 X 4 1/2
    5/16-18 X 4 1/2 HCS
    Product #:
    Mfg #: BH 5/16 X 4 1/2

    Wholegoods

    There are no wholegoods available.
