Aqua Creek F-MTY600-G White/Gray The Mighty 600 Lift without Anchor
Description
Aqua Creek F-MTY600-G White/Gray The Mighty 600 Lift without Anchor. The new Mighty series is UL certified to meet pool lift safety standard 60335-2-1000. It was designed for in ground anchoring and an ideal lift for easy and affordable ADA compliance. The ADA Compliant, UL Certified, Mighty 600 pool lift is our strongest lift. Like its sister lift, the Mighty 400, the unique patented design provides for a very safe, durable, and reliable lift. Ideal for in-ground pool and spa applications or with the addition of any of the available pedestal options, the Mighty 600 is also a great choice for raised pools and spas. The long reach and heavy weight capacity make this lift a powerhouse and able to accommodate almost any type of user.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAqua Creek
- ApplicationPool
- Shipping Dimensions78 x 44 x 34 inch
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight250 pound
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- ColorWhite, Gray
- FinishPowder Coated
- Lifting Capacity600 pound
- MaterialStainless Steel
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

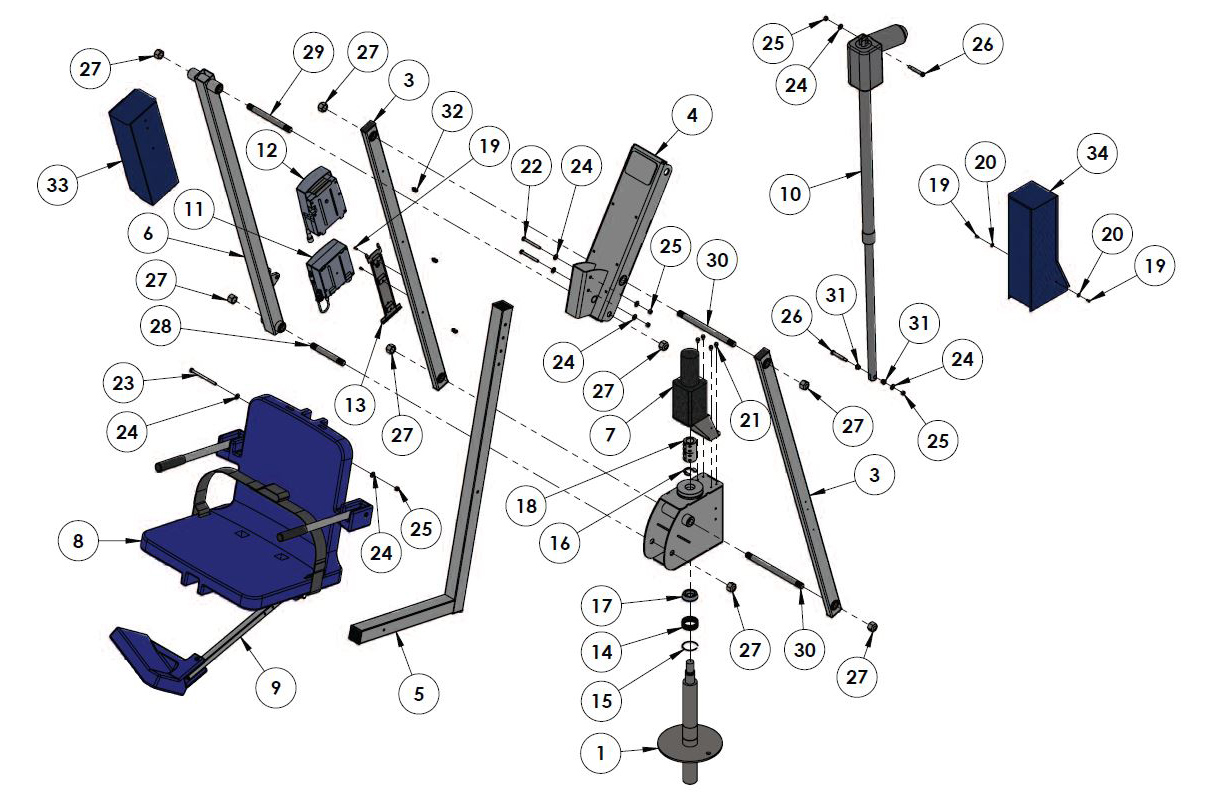

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
MTY-100WM-00
ANCHOR SPINDLE WELDMENT
Product #:
Mfg #: MTY-100WM-00
2
2
MTY-200WM-00
MAIN FRAME WELDMENT
Product #:
Mfg #: MTY-200WM-00
3
3
MTY-400-00
CONTROL ARM ASSEMBLY
Product #:
Mfg #: MTY-400-00
4
4
AMTY-600-00
TOP CASING ASSEMBLY
Product #:
Mfg #: AMTY-600-00
5
5
MTY-700-00
CHAIR CRADLE ASSEMBLY
Product #:
Mfg #: MTY-700-00
6
6
AMTY-800-00
LIFTING ARM ASSEMBLY
Product #:
Mfg #: AMTY-800-00
7
7
MTY-900-00
MIGHTY MOTOR ASSEMBLY
Product #:
Mfg #: MTY-900-00
8
8
SA-0904WDCAB
22 INCH CHAIR ASSEMBLY
Product #:
Mfg #: SA-0904WDCAB
9
9
F-0904FRA
FOOTREST ASSEMBLY
Product #:
Mfg #: F-0904FRA
10
11
11
VCB10
VITO CONTROL BOX
Product #:
Mfg #: VCB10
12
12
VCP100-29800
VITO 24V BATTERY
Product #:
Mfg #: VCP100-29800
14
14
FW505520
NEEDLE ROLLER BEARING
Product #:
Mfg #: FW505520
15
15
93576A250
SPIRAL EXTERNAL RETAINING RING
Product #:
Mfg #: 93576A250
16
16
94751A785
EXTERNAL RETAINING RING
Product #:
Mfg #: 94751A785
Wholegoods
There are no wholegoods available.
