AquaStar Pool Products

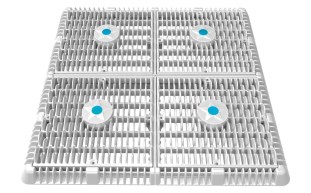

12" White Square Wave Anti-Entrapment Suction Outlet Cover with 3" Sump
Product #:API-25-2204
Mfg. Part #:WAV12WR101SSB
AquaStar Pool Products WAV12WR101SSB 12" White Square Wave Anti-Entrapment Suction Outlet Cover with 3" Sump
AquaStar Pool Products
12" White Square Wave Anti-Entrapment Suction Outlet Cover with 3" Sump
Product #:API-25-2204
Mfg. Part #:WAV12WR101SSB
EA
Description
This Square Wave Anti-Entrapment Suction Outlet Cover includes a vented riser ring and mud frame. It is for use with AquaStar standard 12" models and American (Pentair) with 3/4" deep existing frames and four screw hole pattern. All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions14 x 14 x 14 inch
- Bottom Outlet Pipe Min Size FITSocket x Spigot
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight8 pound
- Floor Flow Rate Measure A361 gal/min
- Floor Flow Rate Measure A at1.3 ft/s
- MaterialPVC or Polyvinyl Chloride
- Minimum Sell Quantity1
- Side Outlet Pipe Size FITSocket x Spigot
- Wall Flow Rate Measure A361 gal/min
- Wall Flow Rate Measure A at1.3 ft/s
- UPC Code0883612100234
