FEBCO

.75" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn

Product #:FEB-58-1099

Mfg. Part #:T1112

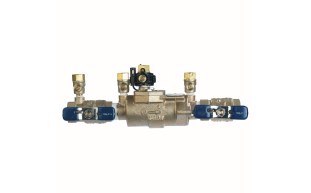

FEBCO T1112 .75" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn

FEBCO

.75" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn

Product #:FEB-58-1099

Mfg. Part #:T1112

EA

Description

This 3/4 inch double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal when ambient temperature approaches the freeze threshold. Activated through an add-on connection kit, the sensor also triggers freeze alerts to facility personnel. Connection kit available for building/irrigation management system (BMS/IMS).

Feature Bullets

  • Includes a freeze sensor for use with SentryPlus Alert technology to signal when temperature nears the freeze point
  • Freeze alerts feature available with add-on connection kit
  • Bronze body for durability
  • Modular compact design
  • Replaceable seats and seat discs
  • Top entry
  • Branch Availability

    content loaded

    Specifications

    • BrandFEBCO
    • ApplicationIrrigation
    • Shipping Dimensions10.67 x 4.92 x 3.62 inch
    • ChannelConstruction Channel
    • ColorBronze
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight4.6 pound
    • Inlet Diameter0.75 inch
    • MaterialBronze, Silicon, Stainless Steel
    • Minimum Sell Quantity1
    • Outlet Diameter0.75 inch
    • Pressure Rating Max175 pounds per square inch
    • Valve ColorBronze
    • Valve MaterialBronze
    • Warranty - General1 years
    • UPC Code643925585377

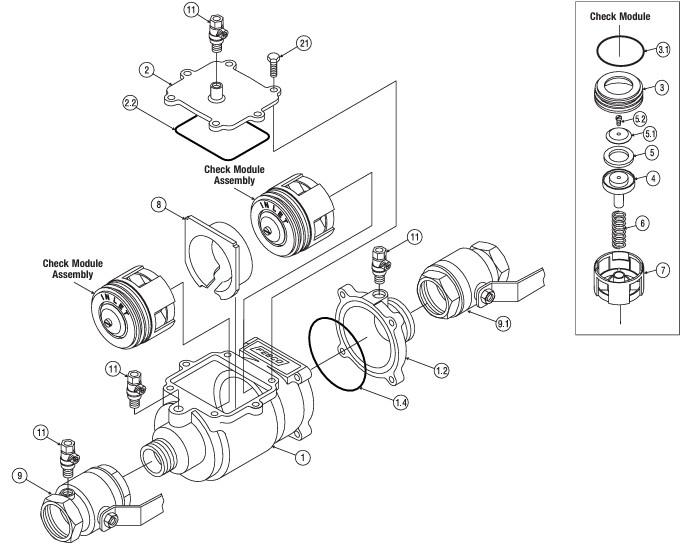

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    110031
    Body
    Product #:
    Mfg #: 110031
    1.2
    1.2
    110040
    Tailpiece
    Product #:
    Mfg #: 110040
    1.4
    1.4
    39603070
    O-ring
    Product #:
    Mfg #: 39603070
    2
    2
    110041
    Cover
    Product #:
    Mfg #: 110041
    2.2
    2.2
    39622470
    O-ring
    Product #:
    Mfg #: 39622470
    3
    3
    500393
    Seat
    Product #:
    Mfg #: 500393
    3.1
    3.1
    39612670
    O-ring
    Product #:
    Mfg #: 39612670
    4
    4
    500394
    Poppet
    Product #:
    Mfg #: 500394
    5
    5
    410127
    Seat Disc
    Product #:
    Mfg #: 410127
    5.1
    5.1
    500396
    Disc Retainer
    Product #:
    Mfg #: 500396
    5.2
    5.2
    51653203
    Round HD Screw
    Product #:
    Mfg #: 51653203
    6
    6
    630177
    Spring
    Product #:
    Mfg #: 630177
    7
    7
    500395
    Guide
    Product #:
    Mfg #: 500395
    8
    8
    500392
    Retainer Spacer
    Product #:
    Mfg #: 500392
    9
    9
    781053
    FEB-56-1003
    Ball Valve Tapped
    Product #: FEB-56-1003
    Mfg #: 781053
