Toro® 23138 Power Rotating Log Grapple Attachment
EA
Description
The original mini-grapple by Branch Manager® Attachments with Hardox wear plate in the body and arms. Hydraulic Rotation allows you to have greater precision over pick & place operations with your machine. This model has the upgraded "Pro" hanger with Saw Scabbards, Rope Bollards, and Receiver Hitch Included.
Documents
Branch Availability
content loaded
Specifications
- BrandToro
- ApplicationLawn, Outdoor
- Shipping Dimensions48 x 40 x 54 inch
- ChannelMaintenance Channel
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight490 pound
- Minimum Sell Quantity1
- Warranty - General1 years
- UPC Code021038231389
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

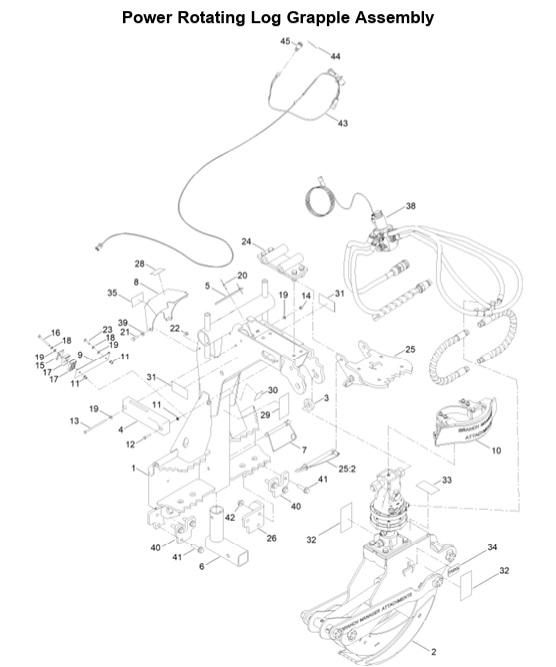

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
163-3577
Frame-Hanger, Pwr Log Grapple
Product #:
Mfg #: 163-3577
Notes:
Power Rotating Log Grapple Assembly Qty 12
2
163-3580

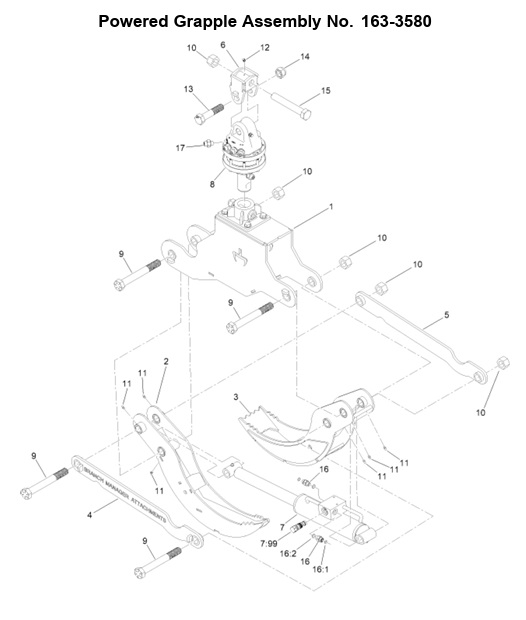

Powered Grapple Head
Product #:
Mfg #: 163-3580
Notes:
Power Rotating Log Grapple Assembly Qty 13
3
163-3555
Spacer, Hanger
Product #:
Mfg #: 163-3555
Notes:
Power Rotating Log Grapple Assembly Qty 24
4
163-3557
Scabbard-Saw
Product #:
Mfg #: 163-3557
Notes:
Power Rotating Log Grapple Assembly Qty 25
5
163-3558
Protector-Hose, Rear
Product #:
Mfg #: 163-3558
Notes:
Power Rotating Log Grapple Assembly Qty 16
6
163-3556
Hitch-Receiver
Product #:
Mfg #: 163-3556
Notes:
Power Rotating Log Grapple Assembly Qty 17
7
127-0897
Pin-Lynch
Product #:
Mfg #: 127-0897
Notes:
Power Rotating Log Grapple Assembly Qty 18
8
163-3578
Cover-Diverter
Product #:
Mfg #: 163-3578
Notes:
Power Rotating Log Grapple Assembly Qty 19
9
163-3565
Bracket-Hose Mount
Product #:
Mfg #: 163-3565
Notes:
Power Rotating Log Grapple Assembly Qty 110
10
163-3579
Hose Guard ASM
Product #:
Mfg #: 163-3579
Notes:
Power Rotating Log Grapple Assembly Qty 111
11
163-3562
Nut-Insert
Product #:
Mfg #: 163-3562
Notes:
Power Rotating Log Grapple Assembly Qty 612
12
321-8
Screw-HH
Product #:
Mfg #: 321-8
Notes:
Power Rotating Log Grapple Assembly Qty 413
13
321-36
Screw-HH
Product #:
Mfg #: 321-36
Notes:
Power Rotating Log Grapple Assembly Qty 15
5
3296-42
Nut-Lock, NI
Product #:
Mfg #: 3296-42
Notes:

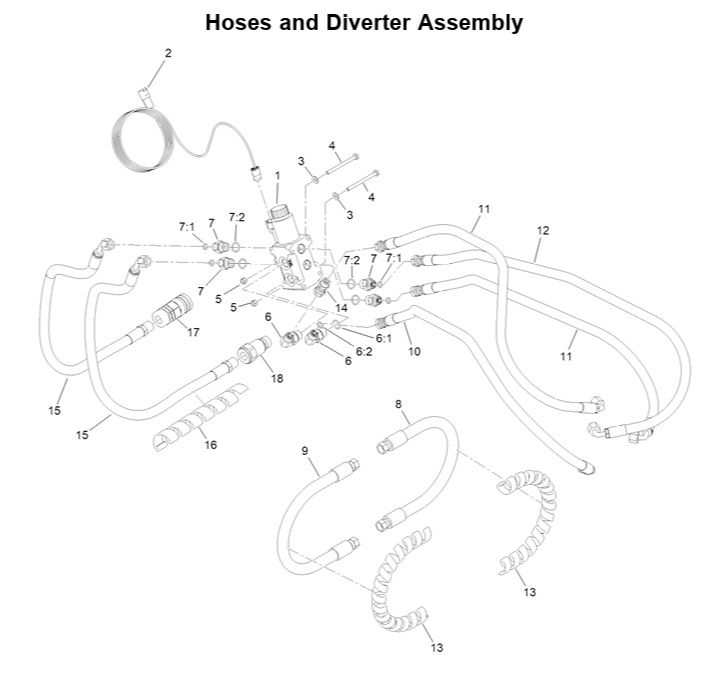

Hoses and Diverter Assembly Qty 215
15
163-3581
Top, Hose Clamp
Product #:
Mfg #: 163-3581
Notes:
Power Rotating Log Grapple Assembly Qty 1Wholegoods
There are no wholegoods available.
