- This product is obsolete.
- The superceded product was not found.
S.R. Smith X-Stream 2™ XS-GR-SS Summit Gray Complete Right/Left Turn Pool Slide with 250 lb Load Capacity and 90" Overall Height
Description
The 6 ft X-Stream 2™ pool slide boasts an exhilarating 2-turn ride that will impress all of the kids in the neighborhood. The Zoom Flume™ water delivery system supplies loads of water as you experience the excitement of this high banking, high splash ride! This slide assembles in either a right or left turn configuration
Branch Availability
content loaded
Specifications
- BrandS.R. Smith
- ApplicationPool Deck
- Shipping Dimensions88 x 38 x 37 inch
- ColorGray
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight269 pound
- Minimum Sell Quantity1
- Slide ColorSummit Gray
- Weight Capacity250 pound
- ChannelNone
- Flow Rate Max35 parts per million
- Flow Rate Min15 parts per million
- Flume CurveRight
- Flume Depth12.5 inch
- Flume Width22.5 inch
- Height at Seating Area72.5 inch
- MaterialFiberglass, Polyethylene (plastic)
- Slide ConstructionPolyethylene Flume, Steps, Handrails and Leg Supports and Stainless Steel Hardware
- UPC Code649359105013

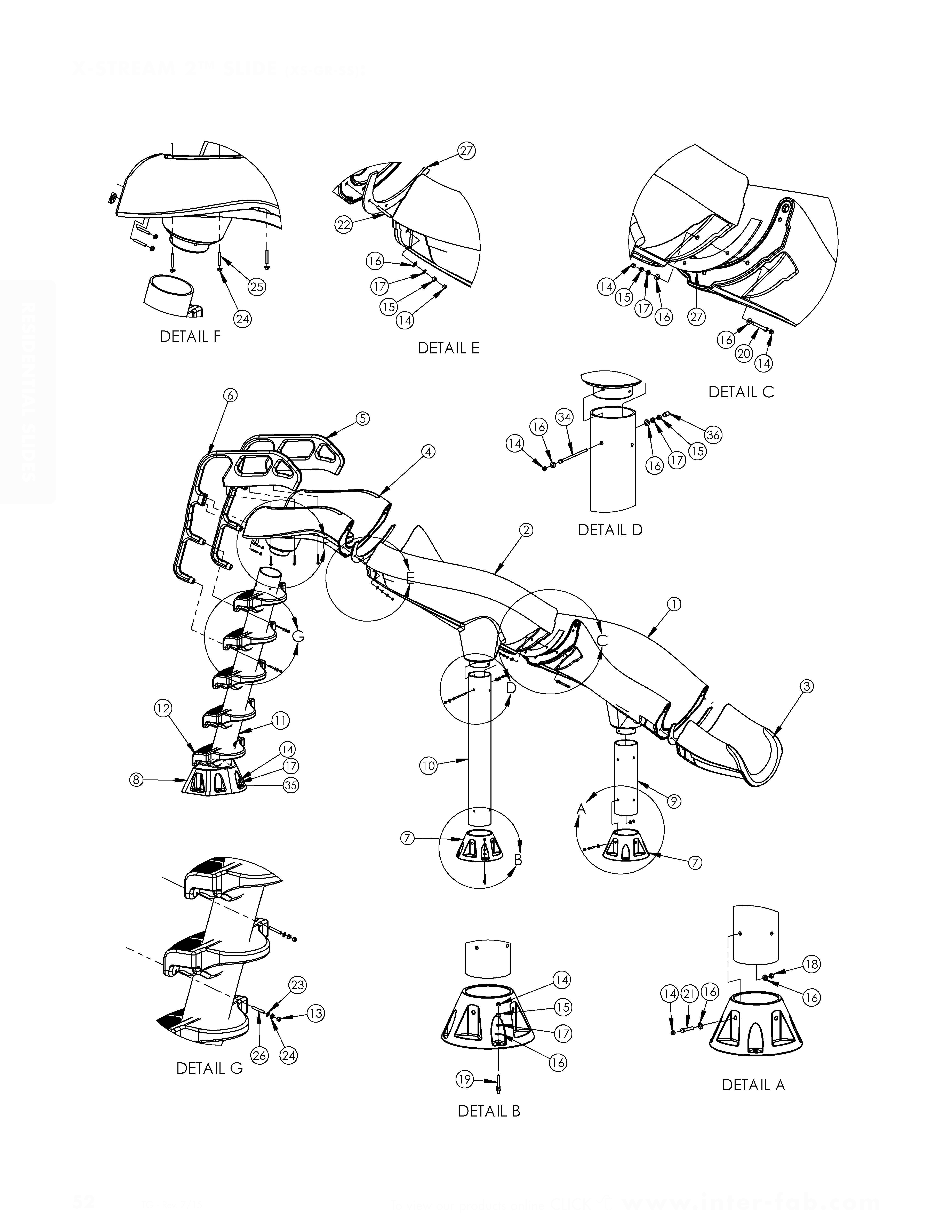

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
XS-RIGHT FLUME
A & B RIGHT HAND FLUME SECTION
Product #:
Mfg #: XS-RIGHT FLUME
2
2
XS-LEFT FLUME
C & D LEFT HAND FLUME SECTION
Product #:
Mfg #: XS-LEFT FLUME
3
3
XS-EXIT
BOTTOM SECTION
Product #:
Mfg #: XS-EXIT
4
4
XS-ENTRY
TOP SIDE SECTION WITH WATER OUTLET
Product #:
Mfg #: XS-ENTRY
5
5
XS-L HANDRAIL
LEFT HANDRAIL WITH X-STREAM LOGO
Product #:
Mfg #: XS-L HANDRAIL
6
6
XS-R HANDRAIL
RIGHT HANDRAIL WITH X-STREAM LOGO
Product #:
Mfg #: XS-R HANDRAIL
7
7
XS-FOOT PEDESTAL
STRAIGHT FOOT PEDESTAL
Product #:
Mfg #: XS-FOOT PEDESTAL
8
8
PEDESTAL
16 DEGREE FOOT PEDESTAL
Product #:
Mfg #: PEDESTAL
9
9
H-6 X 21.250
6 X 21.250 GRAY PVC PIPE SCHEDULE 40
Product #:
Mfg #: H-6 X 21.250
10
10
H-6 X 45.375
6 X 45.375 GRAY PVC PIPE SCHEDULE 40
Product #:
Mfg #: H-6 X 45.375
11
11
H-6 X 71.5
6 X 71.5 GRAY PVC PIPE SCHEDULE 40
Product #:
Mfg #: H-6 X 71.5
12
12
XS-STEP
X-STREAM BLOW MOLDED STEP
Product #:
Mfg #: XS-STEP
13
13
H-.463 X .310 CAP
GRAY PROTECTIVE CAP
Product #:
Mfg #: H-.463 X .310 CAP
14
14
H-.562 X .390 CAP
GRAY PROTECTIVE CAP
Product #:
Mfg #: H-.562 X .390 CAP
15
15
H-SS 3/8 F NUT
3/8 FINISH NUT S.S.
Product #:
Mfg #: H-SS 3/8 F NUT
Wholegoods
There are no wholegoods available.
