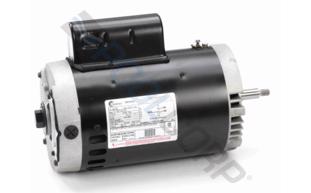

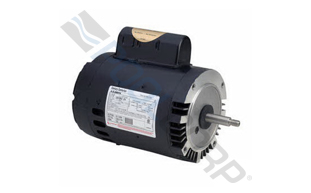

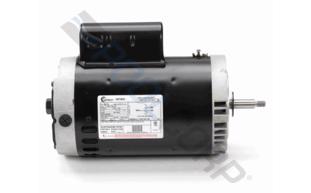

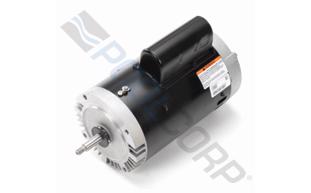

Century® E-Plus® B818 Pool and Spa Pump Motor; 3 HP, 3450 RPM, 208-230 V, 56J, Threaded Shaft
Description
The ODP Threaded Pool & Spa Pump Motor is switchless and energy efficient. Century® is an established and respected motor brand with reliable and dependable products for HVAC, pool & spa, and commercial and industrial applications. For nearly 80 years, the Century brand has delivered cutting-edge, high-quality, and energy-efficient solutions to customers all over the world. Century brings cutting edge, high quality and energy efficient solutions to customers all over the world. For your most relaxing applications, Century® pool pump motors have you covered to ensure your summer and leisure activities stay up and running.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions19.38 x 9.5 x 11 inch
- Amps High Speed15
- Amps Low Speed13.6
- ApplicationPool
- Bearing TypeBall
- ColorBlack
- Duty CycleContinuous
- Each Product Weight40 pound
- Efficiency GroupHigh
- Frequency Rating (Hz)60
- Horsepower3 horse power
- Insulation ClassB
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.15
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage208V, 230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Flange TypeRound
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Motor RatingFull-Rated
- Thrust HP3.45
- UPC Code663001194408
