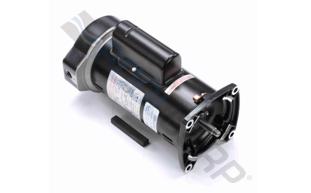

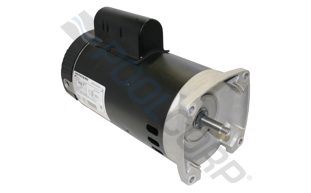

Century® Centurion® Pro HSQ220 Pool and Spa Pump Motor; 2.2 THP, 3450 RPM, 230 V, 48Y, Threaded Shaft, Square Flange
Description
Century® Centurion® Pro HSQ220 Pool and Spa Pump Motor; 2.2 THP, 3450 RPM, 230 V, 48Y, Threaded Shaft, Square Flange. When it comes to durability, installer - friendly features, and overall ergonomics, no other replacement pump motor comes close to a superbly crafted Centurion® PRO pool and spa motor. In addition to one of the most reliable switch and governor mechanisms in the industry and premium bearings on both the pump and lead ends of the motor, the innovative hybrid end frame design boasts a new PCB terminal board, voltage change device and a definitive shaft access path. The Centurion PRO design packs best-in-class features into a rugged, accessible layout that improves the installati on experience.
Branch Availability
content loaded
Specifications
- BrandCentury
- ColorBlack
- Shipping Dimensions19.25 x 11 x 9.25 inch
- Frequency Rating (Hz)60
- Standards ApprovalsCSA Certified
- Voltage230V
- Ambient Temperature50 degrees Celsius
- Amps High Speed9.7
- Amps Low Speed9.7
- Bearing TypeSealed Ball
- Diameter5.625 inch
- Duty CycleContinuous
- Each Product Weight29.8 pound
- Flange TypeSquare
- Frame MaterialRolled Steel
- Insulation ClassF
- Minimum Sell Quantity1
- Motor Capacitor TypeStart, Run
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size48Y
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity32
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft Design1/2 Threaded
- Shaft Diameter0.625 inch
- Shaft Material303 Stainless Steel
- UPC Code786674033260
