Century
Almond Century Frame Square Flange ODP Motor 115/230V 1HP
Product #:MGT-60-1450
Mfg. Part #:BPA450V1
Century® BPA450V1 Motor; 1HP, 3450 RPM, 115/208-230V, 56Y Square Flange, Almond
Century
Almond Century Frame Square Flange ODP Motor 115/230V 1HP
Product #:MGT-60-1450
Mfg. Part #:BPA450V1
EA
Description

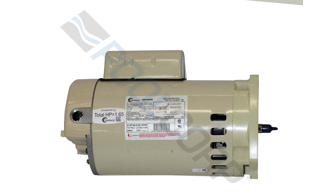

The Almond Century Frame Square Flange ODP Motor has an open and accessible terminal board and wiring compartment. The energy efficient motor comes with voltage change device, sealed ball bearings, and stainless steel shaft.
Branch Availability
content loaded
Specifications
- BrandCentury
- ApplicationPool
- Shipping Dimensions21 x 11 x 9.5 inch
- Frequency Rating (Hz)60
- Horsepower1.65 horse power
- Standards ApprovalsCSA Certified
- Voltage115V, 208V, 230V
- Ambient Temperature50 degrees Celsius
- Amps High Speed14.8
- Amps Low Speed7.4
- Bearing TypeBall
- ChannelNone
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Duty CycleContinuous
- Each Product Weight32.7 pound
- Flange TypeSquare
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Insulation ClassF
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56Y
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length0.75 inch
- Shaft Material303 Stainless Steel
- Thrust HP1.65
- Warranty - General1 years
- UPC Code786674070333
