Maytronics

Dolphin Wave 120 Robotic Pool Cleaner 24 VDC

Product #:MAY-20-7014

Mfg. Part #:9999359-W120

  • This product is obsolete.
  • The superceded product was not found.

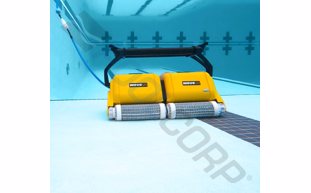

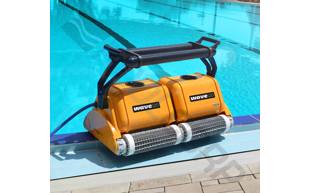

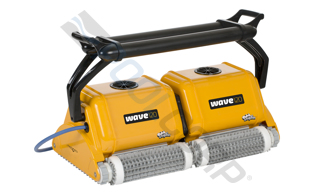

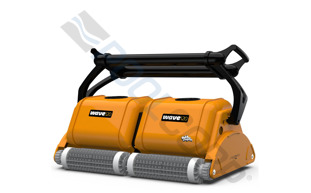

Maytronics Dolphin™ Wave 120 9999359-W120 Yellow Robotic Pool Cleaner 24 VDC

Maytronics

Dolphin Wave 120 Robotic Pool Cleaner 24 VDC

Product #:MAY-20-7014

Mfg. Part #:9999359-W120

Description

Designed for large pools up to 121 feet, put the power of two robots to work at once with the Maytronics Wave 120 commercial robotic pool cleaner. Ideal for universities, YMCAs, and water parks, the Wave 120 saves you valuable time when it comes to maintaining your facility pool wits its easy operation and multiple cleaning options. With superior filtering capabilities and an extra-wide cleaning path, this cleaner expertly cleans the pool with maximum effectiveness and efficiency, ensuring sparkling, healthy swimming water for your guests to enjoy.

Feature Bullets

  • Equipped with four scrubbing brushes for highly effective scrubbing of the floor, walls, and waterline
  • Plug and play operation helps reduce man-hours related to pool cleaning. It even works nights and weekends
  • Circulates thousands of gallons of water per hour, leaving the pool water polished throughout
  • Branch Availability

    content loaded

    Specifications

    • BrandMaytronics
    • ApplicationPool
    • Shipping Dimensions35 x 21 x 20 inch
    • ColorYellow
    • Frequency Rating (Hz)50/60

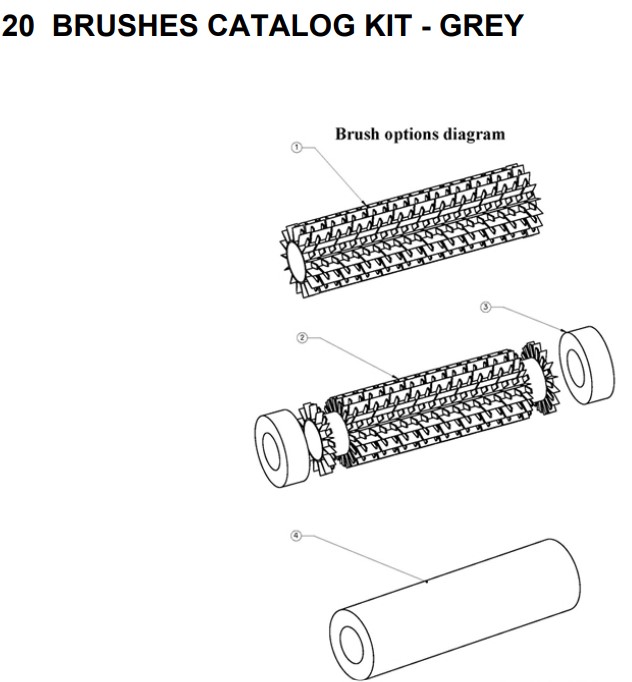

    • Brush SystemQuad Scrubbing Brushes
    • Cable Length131 foot

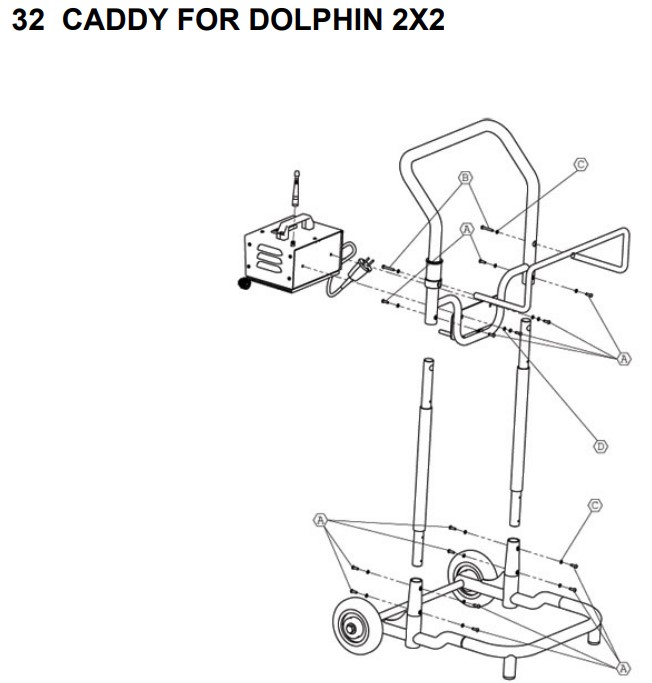

    • Caddy AvailableTrue
    • Cleaner TypeCommercial, Robotic, Vacuum

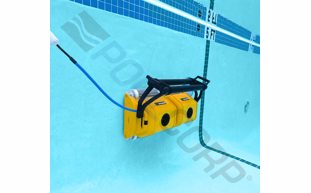

    • ClimbsTrue
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight83 pound

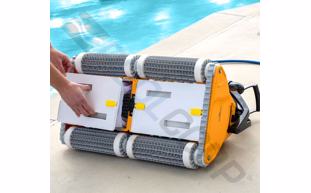

    • Filter AccessBottom
    • Filter TypeBag
    • Full Filter IndicatorTrue
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity6
    • Pool Cleaning FunctionalityFloor, Wall, Waterline
    • Pool SizeUp to 121 ft.
    • Product Depth34.646 inch
    • Product Height17.244 inch
    • Product Weight42 pound
    • Product Width19.449 inch
    • Remote ControlTrue
    • Suction Rate9000 gal/hr
    • Timer AvailableTrue
    • Timer Mode SelectionsDelayed Start
    • UPC Code850015249617

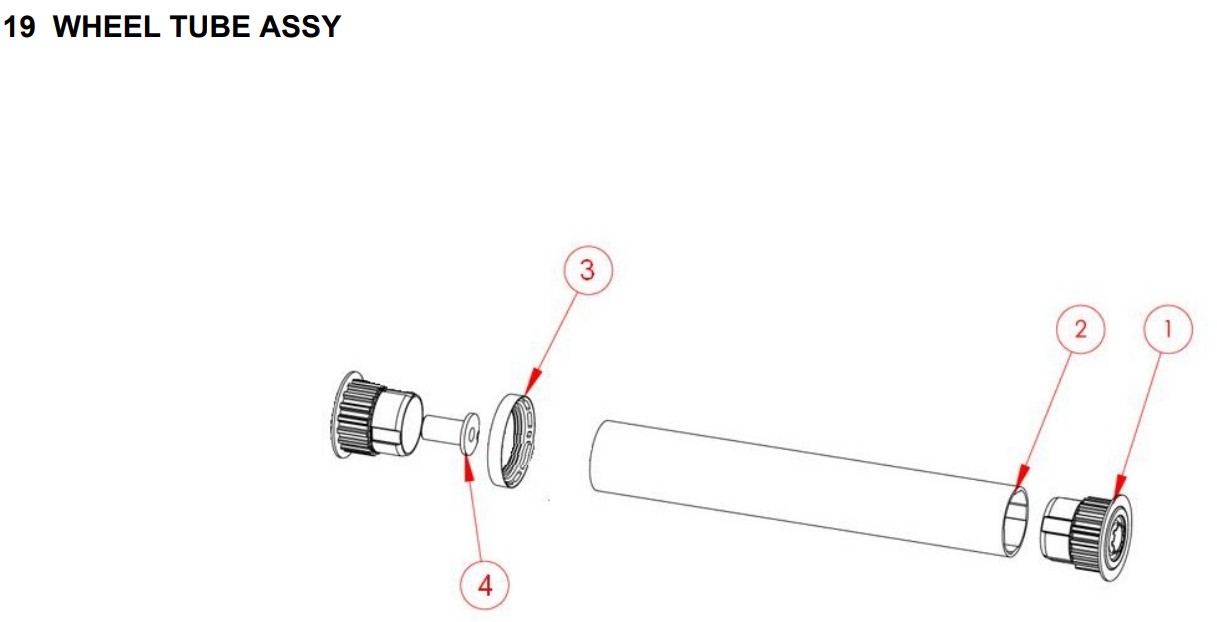

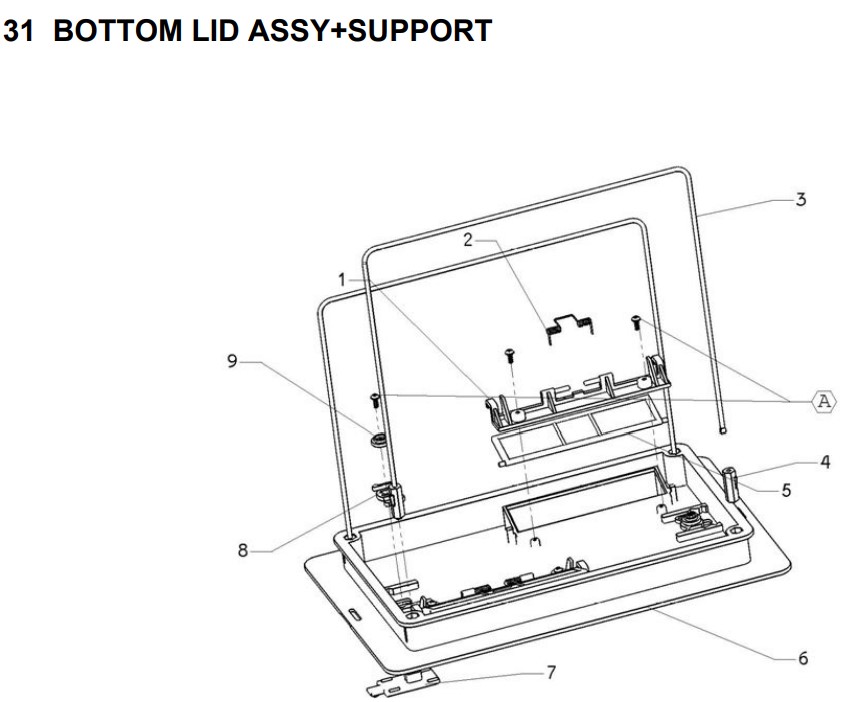

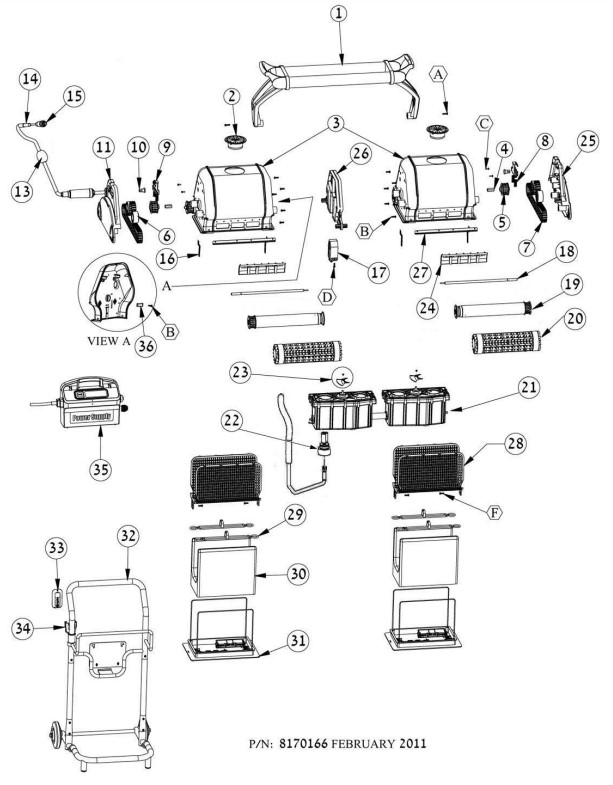

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    01
    01
    99957049-ASSY
    HANDLE BLACK FOR DOLPHIN 2X2 S
    Product #:
    Mfg #: 99957049-ASSY
    03.14
    03.14
    9995071-ASSY
    IMPELLER TUBE BLACK
    Product #:
    Mfg #: 9995071-ASSY
    03
    03
    9995193
    OUTER CASING FOR 2X2 GYRO
    Product #:
    Mfg #: 9995193
    24
    24
    9985280
    NON RETURN FLAP DIAG.-GREY
    Product #:
    Mfg #: 9985280
    16
    16
    3965030
    WIRE CLIP
    Product #:
    Mfg #: 3965030
    27
    27
    3870010
    OC SS STRENGTHNER FOR 2X2
    Product #:
    Mfg #: 3870010
    36
    36
    9991069-ASSY
    CABLE HOLDER KIT
    Product #:
    Mfg #: 9991069-ASSY
    04
    04
    3865005
    HEXAGON DRIVE ADAPTOR
    Product #:
    Mfg #: 3865005
    05
    05
    3883645
    DRIVE PULLEY- TT
    Product #:
    Mfg #: 3883645
    06
    06
    3884997
    GUIDE WHEEL
    Product #:
    Mfg #: 3884997
    07
    07
    9985006
    TRACKS, LONG - GREY
    Product #:
    Mfg #: 9985006
    08
    08
    3917031
    MAY-201-9584
    Product #: MAY-201-9584
    Mfg #: 3917031
    09
    09
    99850701
    MAY-201-0045
    HANDLE LATCH 2X2 BLACK
    Product #: MAY-201-0045
    Mfg #: 99850701
    10
    10
    9985065
    HANDLE ARM SLIDE
    Product #:
    Mfg #: 9985065
    11
    11
    9995038
    SIDE PANEL+GROMMET 2X2 ORANGE
    Product #:
    Mfg #: 9995038

    Wholegoods

    There are no wholegoods available.
