PUL Products

White Unsealed PULreturn LR1 Assembly

Product #:PUL-25-1007

Mfg. Part #:RLR-UN-01-W


PUL Products PULreturn RLR-UN-01-W White Unsealed LR1 Assembly

PUL Products

White Unsealed PULreturn LR1 Assembly

Product #:PUL-25-1007

Mfg. Part #:RLR-UN-01-W

EA

Description

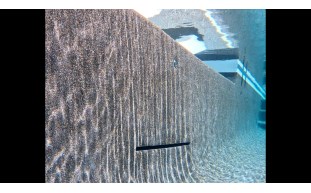

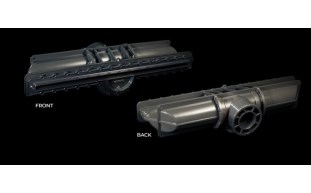

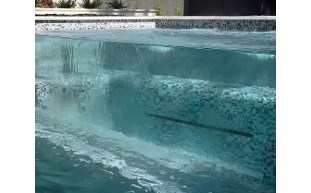

PULreturn LR1 redefines modern pool design with a sleek, flush-mounted return that disappears into your pool’s surface. Designed to solve applications that require high water flow and low surface turbulence, it delivers efficient performance and minimalist modern look. Many pool designs today require a high return water volume to run spillways, negative edges or water features. Often, multiple, unsightly fittings that create water turbulence are used…until now. The PULreturn LR1 is the industry’s only purpose-built return fitting that provides a high volume, low disturbance solution… without a trace of visible hardware or plastic.

Branch Availability

content loaded

Specifications

  • BrandPUL Products
  • ApplicationPool
  • Shipping Dimensions37 x 19 x 7 inch
  • ChannelNone
  • ColorWhite
  • Commercial, Residential, or ProfessionalResidential
  • Each Product Weight17 pound
  • MaterialPlastic
  • Minimum Sell Quantity1
  • Pallet Quantity25
  • Warranty - General5 years
  • UPC Code850075412105

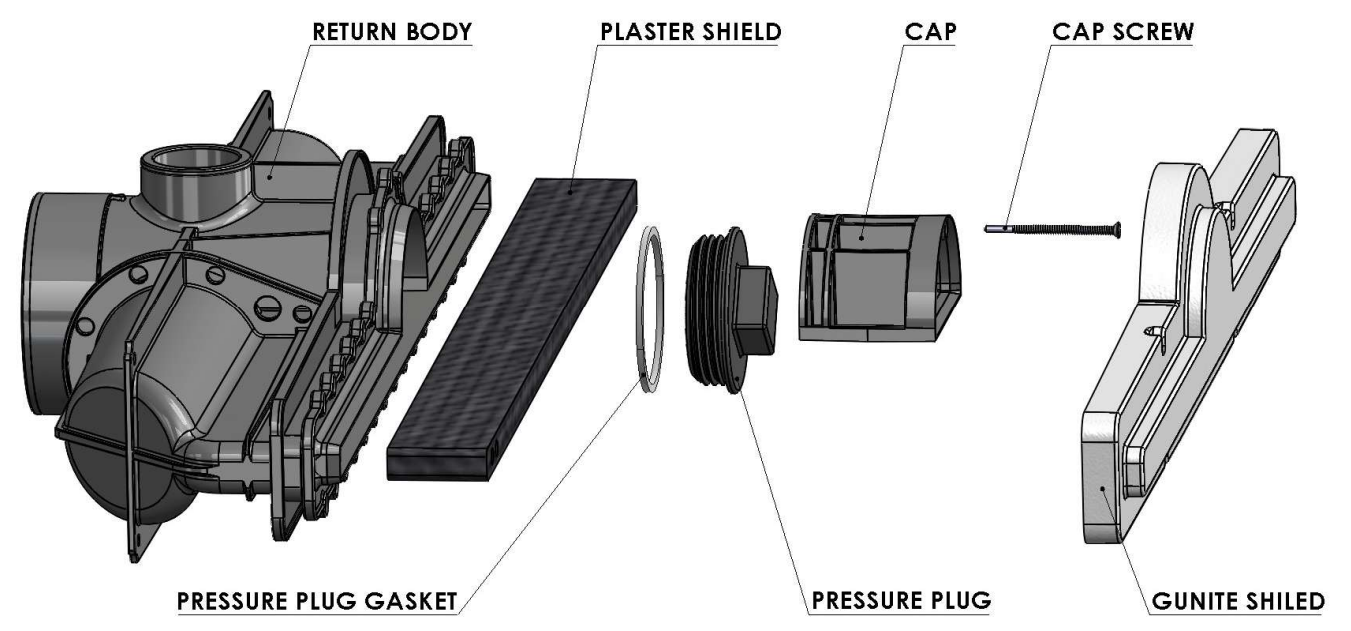

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
2305-20002A-01
COMPLETE RETURN ASSEMBLY
Product #:
Mfg #: 2305-20002A-01
2
2
2205-20013A-01
GUNITE SHIELD
Product #:
Mfg #: 2205-20013A-01
3
3
2205-80002A-01
CAP SCREW
Product #:
Mfg #: 2205-80002A-01
4
4
2205-20007A-01
FLIP CAP
Product #:
Mfg #: 2205-20007A-01
5
5
2205-20009A-01
PRESSURE PLUG
Product #:
Mfg #: 2205-20009A-01
6
6
2205-40018A-01
PRESSURE PLUG GASKET
Product #:
Mfg #: 2205-40018A-01
7
7
2205-20017A-01
PLASTER SHIELD
Product #:
Mfg #: 2205-20017A-01
