Brands
Rain Bird

1" Brass Irrigation Valve

Product #:RBD-58-1495

Mfg. Part #:B32553

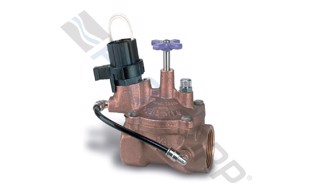

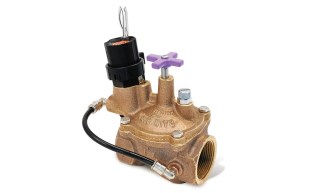

Rain Bird B32553, 100Efbcp, 1" Brass Irrigation Valve

Rain Bird

1" Brass Irrigation Valve

Product #:RBD-58-1495

Mfg. Part #:B32553

Description

Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water? The EFB-CP's the one!

Documents

No documents available

Feature Bullets

  • 1 in. (26/34) Brass Valve
  • Normally closed, reverse flow design ensures valve will fail in the closed position if a tear or rip in the diaphragm occurs
  • Prevents flooding, water waste and landscape damage
  • Slow closing to prevent water hammer and subsequent system damage.
  • One-piece solenoid design with captured plunger and spring for easy servicing
  • Prevents loss of parts during field service
  • Flow control handle adjusts water flow as needed
  • Manual internal bleed operates the valve without allowing water into the valve box
  • Allows pressure regulator adjustment without turning on the controller
  • Solenoid handle is not included

    • Branch Availability

    content loaded

    Specifications

    • BrandRain Bird
    • ApplicationGarden, Landscaping, Lawn, Outdoor
    • Shipping Dimensions1.89 x 1.11 x 0.61 inch
    • ColorBlack, Purple, Silver, Brass
    • MaterialBrass
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight3.125 pound
    • Holding Current0.14 amperage
    • Inlet Diameter1 inch
    • Inrush Current0.41 amperage
    • Master Carton Quantity10
    • Minimum Sell Quantity1
    • Pallet Quantity160
    • Pressure Rating Max200 pounds per square inch
    • Pressure Rating Min15 pounds per square inch
    • Valve Flow Max200 gal/min
    • Valve Flow Min5 gal/min
    • Valve MaterialBrass
    • Valve TypeInline
    • Working Temperature Max150 degrees Fahrenheit
    • UPC Code739460002117
