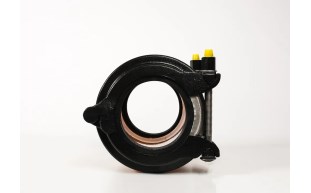

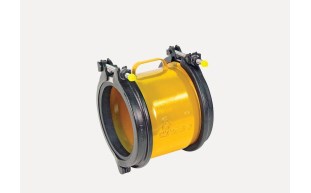

Romac 260-04130413651 3" Macro HP Two-Bolt Extended Range Coupling
BX
Description

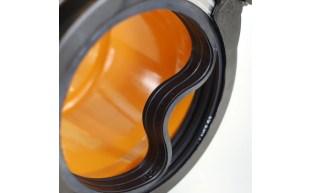

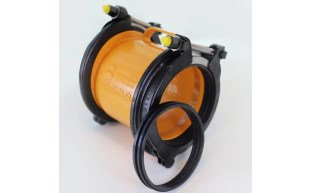

Ductile iron end-rings and center-ring have no welds. Heavy-duty stainless-steel bolts with anti-galling protection. 304 stainless steel armors are bonded to the gaskets. Center ring is fusion bonded epoxy, NSF 61 certified. End rings are E-coated epoxy. With a single gasket Macro couplings accommodate IPS through cast iron pipe. XL sizes cover DI through Oversize Cast Iron. For larger pipe diameters such as some asbestos cement, a separate A/C gasket is included. The built-in handle makes the Macro simple to carry and maneuver during installation. Stab-fit installation. Each end of the Macro tightens independently with a single bolt (two bolts each end for 16 inch). If your work space requires it, the end rings can be clocked. The Macro is lighter than traditional wide range couplings.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRomac
- ApplicationOutdoor
- Shipping Dimensions8.4 x 8.4 x 7.2 inch
- ChannelConstruction Channel
- ColorYellow, Black
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight12 pound
- MaterialIron, 304 Stainless Steel
- Minimum Sell Quantity1
- Pipe / Fittings ColorYellow, Black
- Pressure Rating305 pounds per square inch
- Standards ApprovalsNSF Certified
