55" SMD1400 58 PSI Sand Filter 4" Flange Connection
Product #:BAK-05-2032
Mfg. Part #:30501404104NA
Waterco 30501404104NA 55" SMD1400 58 PSI Sand Filter 4" Flange Connection
Waterco
55" SMD1400 58 PSI Sand Filter 4" Flange Connection
Product #:BAK-05-2032
Mfg. Part #:30501404104NA
EA
Description
Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron fiberglass filters are designed and built for many years of trouble free operation.
Branch Availability
content loaded
Specifications
- BrandWaterco
- ApplicationPool
- Shipping Dimensions60 x 60 x 80 inch
- Backwash Flow Rate20 gal/min
- Backwash Min Flow Rate15 gal/min
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight780 pound
- Filter Media Pea Gravel500 pound
- Filter Media Sand Required434 gallon
- Filtration Area16.49 square feet
- Filtration Rate10 GPM/ft2
- MaterialFiberglass
- Maximum Flow Rate10 gal/min
- Maximum Working Pressure58 pounds per square inch
- Minimum Sell Quantity1
- Warranty - General2 years
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes

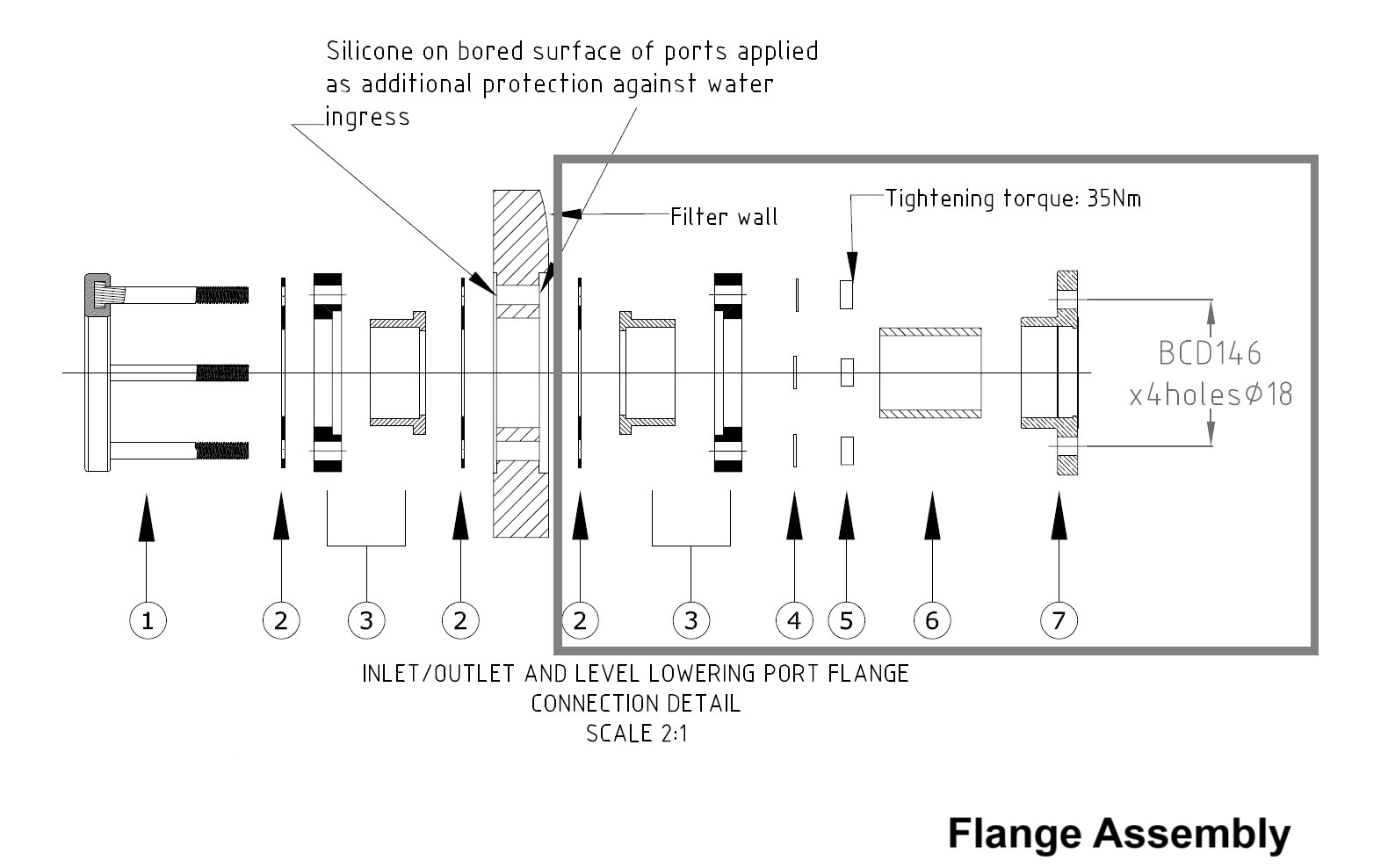

1
1
W22634S
Flange Stud Ring 3" ANSI 150
Product #:
Mfg #: W22634S
Notes:
Flange Assembly3
3
1216801
PVC Flange ANSI 150 3"
Product #:
Mfg #: 1216801
Notes:
Flange Assembly4
4
1216803
Washer M16 Full Face SS316
Product #:
Mfg #: 1216803
Notes:
Flange Assembly5
5
W22622
Hex Nut 5/8" UNC SS316
Product #:
Mfg #: W22622
Notes:
Flange Assembly7
7
W22408
PVC Flange 3" AS4087/PN16 SCH80
Product #:
Mfg #: W22408
Notes:
Flange Assembly1
1

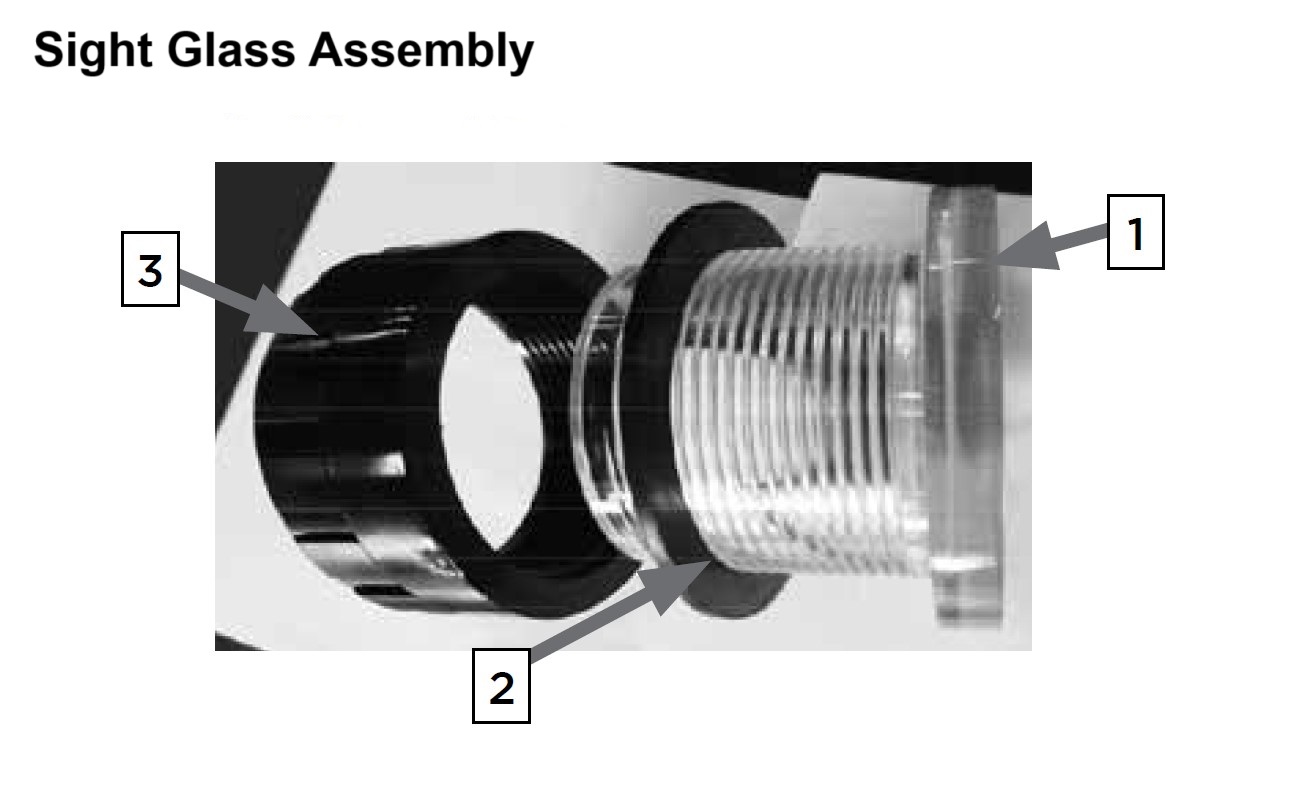

W22115
Sight Glass 80MM with Thread
Product #:
Mfg #: W22115
Notes:
Sight Glass Assembly2
2
W02250
Gasket 80MM Bulkhead Rubber
Product #:
Mfg #: W02250
Notes:
Sight Glass Assembly3
3
W02254B
Bulkhead Lock Nut 80MM Black
Product #:
Mfg #: W02254B
Notes:
Sight Glass AssemblyWholegoods
