National Diversified Sales

10" Standard Series Green Round Valve Box with Green ICV Overlapping Cover

Product #:NDS-58-8000

Mfg. Part #:112BC

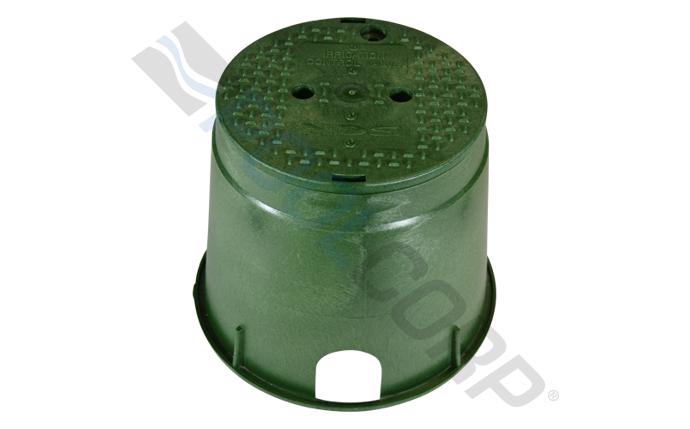

National Diversified Sales 112BC 10" Standard Series Green Round Valve Box with Green ICV Overlapping Cover

National Diversified Sales

10" Standard Series Green Round Valve Box with Green ICV Overlapping Cover

Product #:NDS-58-8000

Mfg. Part #:112BC

Description

The NDS Standard Series Valve Box has a 10" round body that is tapered and has a minimum wall thickness of 0.200". The cover seat area has 6 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The 10" round cover has an average thickness of 0.250". The valve box has a 5/16" brass nut for the bolt-down as a standard feature.

Documents

Feature Bullets

  • Brass nut on box for bolt-down capability
  • Irrigation control valve cover (ICV) designation
  • Injection-molded of structural foam polyolefin with a melt index between 10-12
  • UV inhibitors prevent discoloration and deterioration, such as cracking or blistering
  • Overlapping cover prevents dirt and grass from settling between body and cover

    • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationLandscaping, Lawn, Outdoor
    • Each Product Weight2.8786 pound
    • Minimum Sell Quantity1
    • Pallet Quantity180
    • UPC Code052063061122
