National Diversified Sales

10" Standard Series Purple Round Valve Box with Purple Overlapping Cover

Product #:NDS-58-1038

Mfg. Part #:111PBCR


National Diversified Sales 111PBCR 10" Standard Series Purple Round Valve Box with Purple Overlapping Cover

National Diversified Sales

10" Standard Series Purple Round Valve Box with Purple Overlapping Cover

Product #:NDS-58-1038

Mfg. Part #:111PBCR

Description

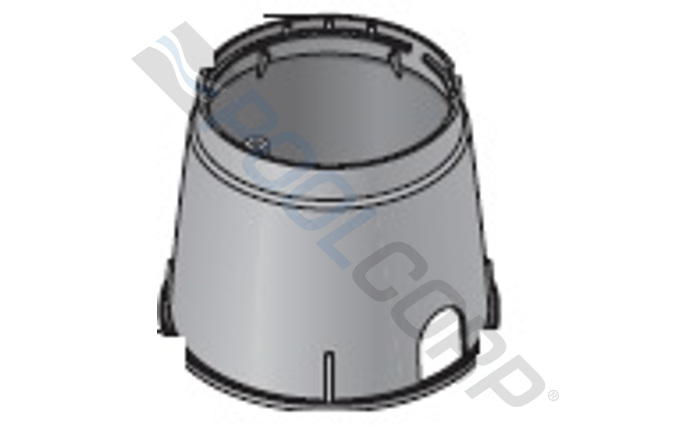

This NDS Standard Valve Box has a 10" round body that is tapered and has a minimum wall thickness of 0.200". The cover seat area has 6 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The 10" round cover has an average thickness of 0.250". The valve box has a 5/16" 304 brass nut for the bolt-down as a standard feature.

Documents

No documents available

Feature Bullets

  • Brass nut on box for bolt-down capability
  • Injection-molded of structural foam polyolefin with a melt index between 10-12
  • UV inhibitors prevent discoloration and deterioration, such as cracking or blistering
  • Overlapping cover prevents dirt and grass from settling between body and cover

    • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • ColorPurple
    • Each Product Weight3.1069 pound
    • Minimum Sell Quantity1
    • Pallet Quantity180
    • UPC Code052063211176
