100HVMB 1" HV Series Inline Sprinkler Valve Male x Barb

Product #:RBD-58-3138

Mfg. Part #:H03000

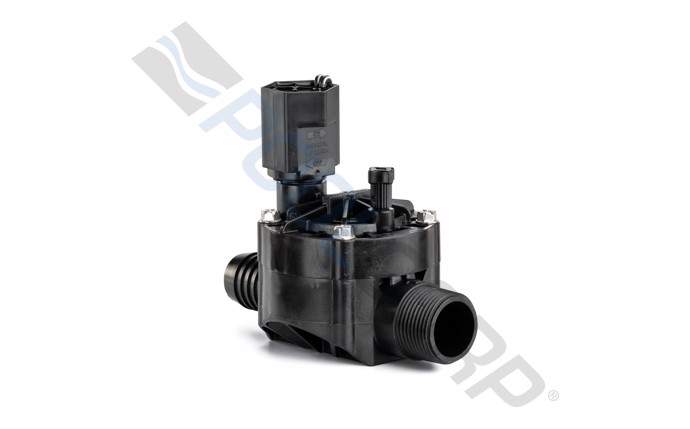

Rain Bird H03000 100HVMB 1" HV Series Inline Sprinkler Valve Male x Barb

Rain Bird

100HVMB 1" HV Series Inline Sprinkler Valve Male x Barb

Product #:RBD-58-3138

Mfg. Part #:H03000

Description

The new HV valve follows in that grand tradition. They are tested to tough standards to ensure high performance for many years to come making it a great residential valve choice.

Documents

Feature Bullets

  • Compact design, 2.54" spin radius for tight installations
  • Reverse flow, normally closed design
  • External bleed to manually flush the system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation

    • Branch Availability

    content loaded

    Specifications

    • BrandRain Bird
    • ApplicationLandscaping
    • Shipping Dimensions1 x 0.53 x 0.69 inch
    • Each Product Weight0.785 pound
    • Master Carton Quantity20
    • MaterialPlastic
    • Minimum Sell Quantity1
    • Pallet Quantity360
    • Product Height4.5 inch
    • Product Width3.1 inch
    • Pressure Rating Max150 pounds per square inch
    • Pressure Rating Min15 pounds per square inch
    • Valve ColorBlack
    • Valve Flow Max30 gal/min
    • Valve Flow Min0.2 gal/min
    • Valve MaterialPlastic
    • Valve TypeInline
    • UPC Code077985025236

    Parts & Schematics

    There are no parts or schematics available.
