AquaStar Pool Products

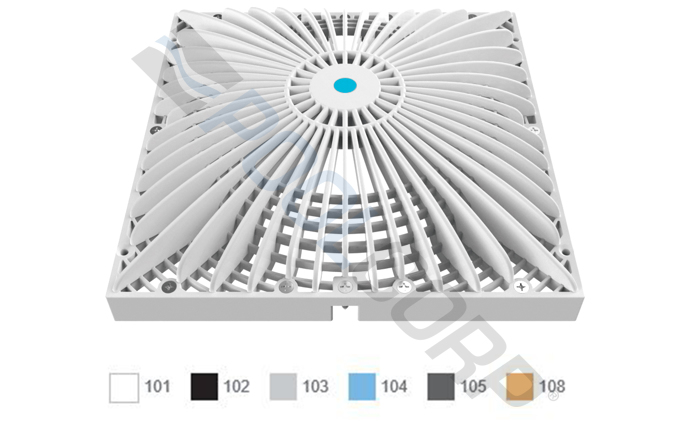

12" Square Retrofit Moflow® Suction Outlet Cover Light Gray
Product #:API-25-2170
Mfg. Part #:R12MF103
AquaStar Pool Products R12MF103 12" Square Retrofit Moflow® Suction Outlet Cover Light Gray
AquaStar Pool Products
12" Square Retrofit Moflow® Suction Outlet Cover Light Gray
Product #:API-25-2170
Mfg. Part #:R12MF103
Description
AquaStar Pool Products R12MF103 12" Square Retrofit Moflow® Suction Outlet Cover for retrofit only, does not include mud frame. Easily and safely retrofits to most brands’ 1" deep 12" square existing frames, does not include mud frame. Replace drain cover every five years from the date of installation.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions11.25 x 11.25 x 2.5 inch
- Commercial, Residential, or ProfessionalCommercial
- Cover Open Area69.1 square inch
- Each Product Weight2.22 pound
- Floor Flow Rate Measure A274 gal/min
- For Use WithAquaStar "R" 12 Inch Models, Hayward, Waterway, American (Pentair #2 selling), PacFab with 1 Inch Deep Existing Frames and Four Screw Hole Pattern
- Includes12 Inch Square Retrofit Moflow Suction Outlet Cover, (4) 10 x 1-1/2 Inch Lg Flat Head PhillipsType A 316 Stainless Steel Screw, (4) 10-24 x 1-1/4 Inch Lg Flat Head Phillips Machine 316 Stainless Steel Screw, (4) #10 x 1 Inch Lg Flat Head Phillips Type A 3
- Master Carton Quantity10
- MaterialPolymer
- Minimum Sell Quantity1
- Pallet Quantity1
- Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
- Wall Flow Rate Measure A278 gal/min
- Floor Flow Rate Measure A at1.3 ft/s
- For Use WithAquaStar "R" 12 Inch Models, Hayward, Waterway, American (Pentair #2 selling), PacFab with 1 Inch Deep Existing Frames and Four Screw Hole Pattern
- Wall Flow Rate Measure A at1.3 ft/s
- UPC Code0883612080550
