Waterway
12" x 12" Dark Gray Pool Suction Grate and Frame
Product #:WWP-25-8083
Mfg. Part #:640-4729-DKG V

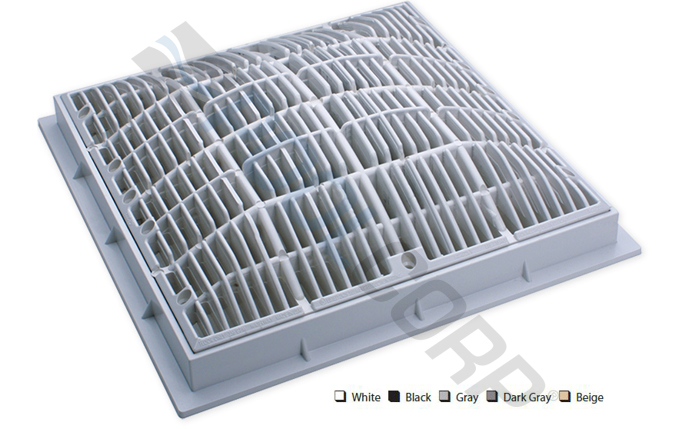

Waterway™ 640-4729-DKG V 12" x 12" Dark Gray Pool Suction Grate and Frame
Waterway
12" x 12" Dark Gray Pool Suction Grate and Frame
Product #:WWP-25-8083
Mfg. Part #:640-4729-DKG V
Description
Waterway™ grates and frames are compliant with the Virginia Graeme-Baker Pool and Spa Safety Act (ASME/ANSI A112.19.8-2007) and are UL Certified. They are designed for single or multiple drain use. This grate assembly includes a frame and stainless steel screws.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationPool
- Shipping Dimensions13 x 13 x 3 inch
- ColorDark Gray
- Commercial, Residential, or ProfessionalCommercial
- Cover Open Area62.4 square inch
- Cover ShapeSquare
- Drain ShapeSquare
- Each Product Weight3.125 pound
- Floor Flow Rate Measure A356 gal/min
- Frame Size13.25 inch
- Master Carton Quantity10
- Minimum Sell Quantity1
- Pallet Quantity1
- Product Width12 inch
- Wall Flow Rate Measure A280 gal/min
- Floor Flow Rate Measure A at1.83 ft/s
- Product Height12 inch
- Wall Flow Rate Measure A at1.44 ft/s
- UPC Code806105367679
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
There are no parts or schematics available.
Wholegoods
There are no wholegoods available.
