120 lb Commercial Broadcast Spreader

Product #:BRH-53-0000

Mfg. Part #:S60-12020

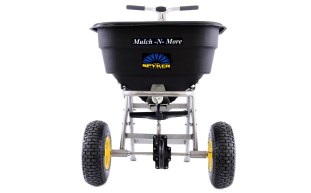

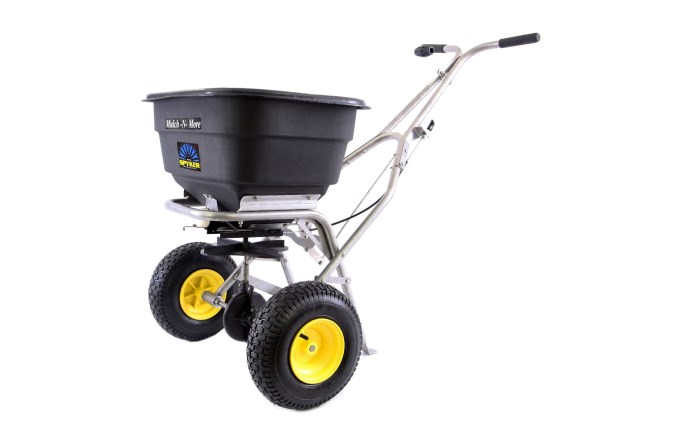

Spyker S60-12020 120 lb Commercial Broadcast Spreader

Spyker

120 lb Commercial Broadcast Spreader

Product #:BRH-53-0000

Mfg. Part #:S60-12020

EA

Description

The Spyker Pro-Series S60-12020 Commercial Broadcast Spreader is the right walk-behind spreader for the job. Its large 120 lb. poly hopper lets you cover more ground between fill-ups so you can get more done in less time. Affectionately called the “Mulch-N-More” because of its extra-large single port opening and works with larger materials such as pin mulch and rock salt. We also offer a Top Dressing Kit to protect the gears from the abrasive effects of fine sand. The design of the S60-12020 enables it to project better spread coverage while maintaining perfect equilibrium using the on-the-fly AccuWay™ adjustment cable. The AccuWay™ adjusts the material flow forward or backward, which determines how quickly the granules launch off of the spinner/fan. This allows the operator to maintain a perfectly balanced spread pattern regardless of the chosen material.

Documents

No documents available

Feature Bullets

  • Extra-large port opening for larger materials
  • 120 lb hopper capacity for less refills
  • ACCUWAY™ technology for a balanced spread pattern
  • Branch Availability

    content loaded

    Specifications

    • BrandSpyker
    • ApplicationLandscaping
    • Shipping Dimensions43 x 29 x 30.75 inch
    • ChannelMaintenance Channel
    • Each Product Weight45.5 pound
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Commercial, Residential, or ProfessionalCommercial

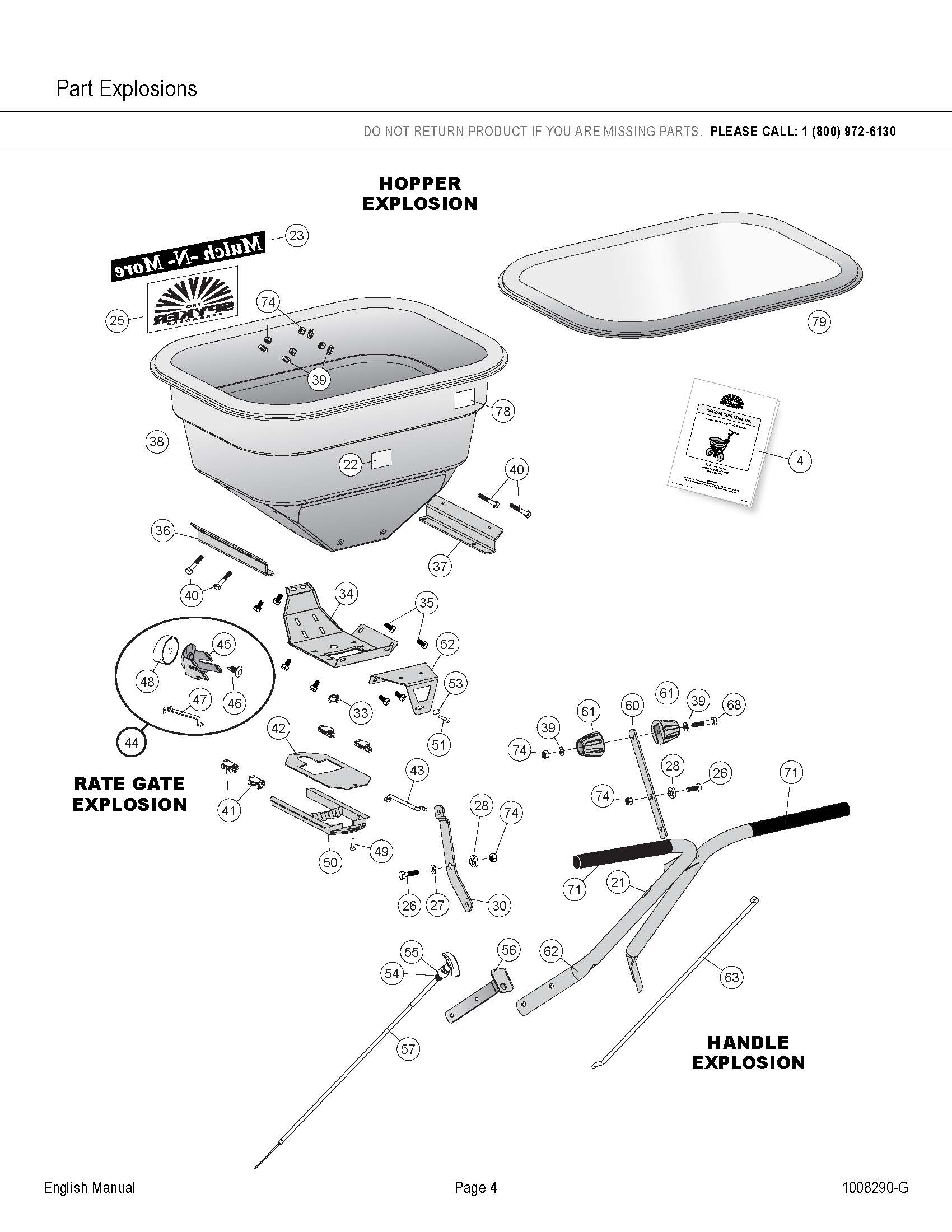

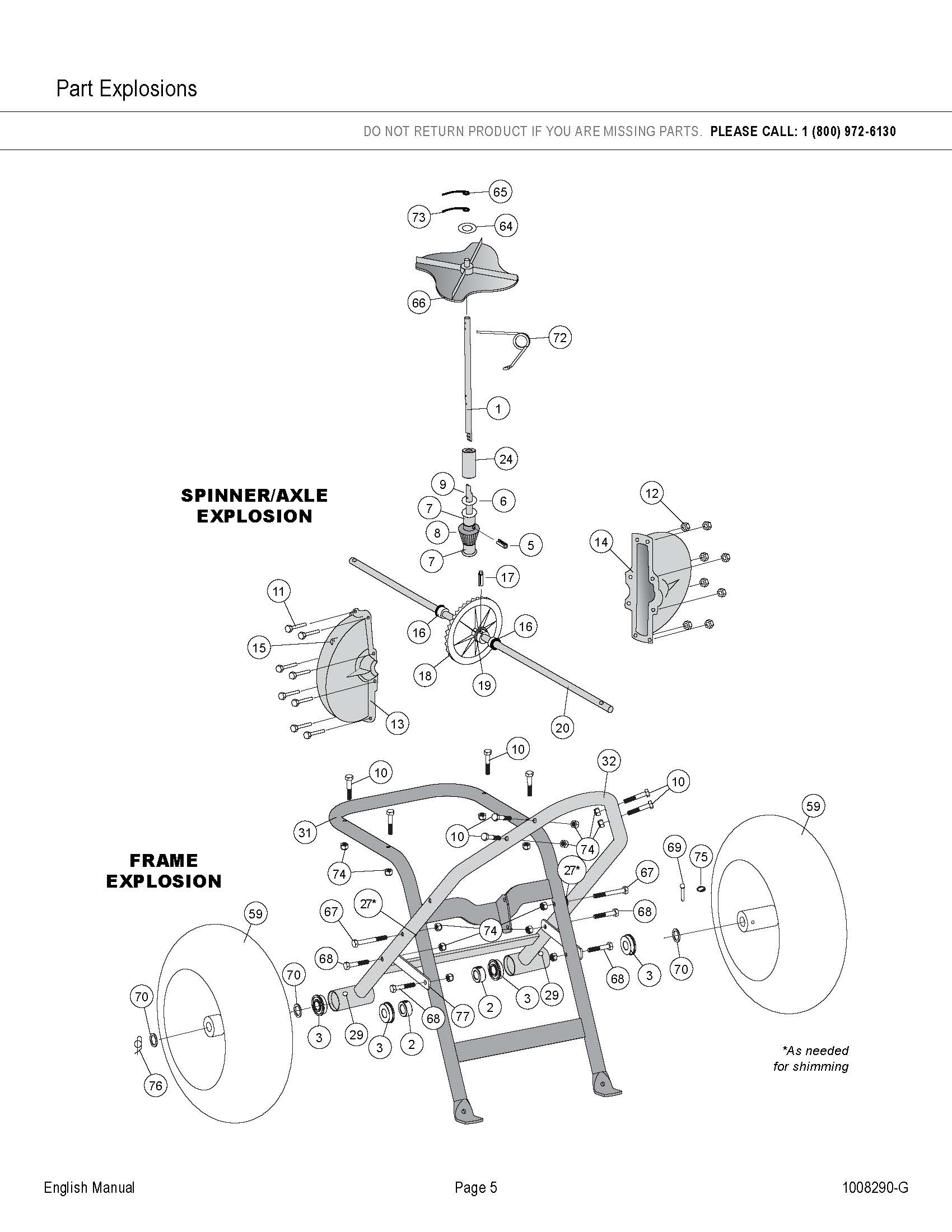

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    1008268
    Shaft, Upper Spinner
    Product #:
    Mfg #: 1008268
    2
    2
    1001234
    Stainless Steel Collar
    Product #:
    Mfg #: 1001234
    Notes:
    Qty: 2
    3
    3
    1001783
    Ball Bearing
    Product #:
    Mfg #: 1001783
    Notes:
    Qty: 4
    4
    4
    1008290
    Manual S60-12020
    Product #:
    Mfg #: 1008290
    5
    5
    1000053
    Roll Pin 1/8 X 3/4
    Product #:
    Mfg #: 1000053
    Notes:
    Qty: 2
    64
    64
    1000198
    Felt Washer
    Product #:
    Mfg #: 1000198
    7
    7
    1001301
    3/8 Spinner Shaft Bushing
    Product #:
    Mfg #: 1001301
    Notes:
    Qty: 2
    8
    8
    1001518
    Pinion Gear - Metal
    Product #:
    Mfg #: 1001518
    9
    9
    1005382
    Lower Spinner Shaft, 288
    Product #:
    Mfg #: 1005382
    10
    10
    2M0828SS
    Bolt, HexHd 1/4x1-3/4 SS
    Product #:
    Mfg #: 2M0828SS
    Notes:
    Qty: 8
    11
    11
    1001303
    Bolt,FlgHd 10-24x5/8" SS
    Product #:
    Mfg #: 1001303
    Notes:
    Qty: 8
    12
    12
    1001308
    Nut, NylonLock, #10-24 SS
    Product #:
    Mfg #: 1001308
    Notes:
    Qty: 8
    13
    13
    1005336
    Gear Box Cover Front
    Product #:
    Mfg #: 1005336
    14
    14
    1005337
    Gear Box Cover Rear
    Product #:
    Mfg #: 1005337
    15
    15
    1005368
    Grease Zerk 1/4-28
    Product #:
    Mfg #: 1005368
