FXLuminaire

14" Bronze Metallic Bollard Path Light

Product #:FXL-96-2608

Mfg. Part #:PMZD3LEDXTBZ


FXLuminaire PMZD3LEDXTBZ 14" Bronze Metallic Bollard Path Light

FXLuminaire

14" Bronze Metallic Bollard Path Light

Product #:FXL-96-2608

Mfg. Part #:PMZD3LEDXTBZ

EA

Description

The PM is engineered without compromise in the spirit of a large contemporary commercial bollard. Precisely milled from 6061 T-6 alloy, this model looks and performs like no other. Computer-designed parabolic reflector, diffuser cone and optics work together to produce long projection beam spread with no glare. All exterior components are finished with a military marine-grade process of acid etching, chromate plating and polyester powder coating to assure long-term appearance and integrity.

Feature Bullets

  • Crafted from sturdy die-cast and extruded aluminum, ensuring resilience and longevity
  • Minimal visible hardware for a clean and elegant design, day or night
  • Built-in Luxor® Technology enables powerline zoning, smooth dimming, and RGBW color-changing with the Luxor Controller
  • Available in static color and dynamic RGBW color-changing options
  • Branch Availability

    content loaded

    Specifications

    • BrandFXLuminaire
    • ApplicationOutdoor
    • Shipping Dimensions5 x 5 x 22 inch
    • Beam Spread (deg)60
    • ChannelConstruction Channel
    • ColorBronze
    • Color Temperature2700
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight3.666 pound
    • Fixture TypePath and Spread Light
    • Lead Wire Length10 foot
    • Lighting Product TypeOutdoor Lighting
    • MaterialAluminum
    • Minimum Sell Quantity1
    • Overall Height14 inch
    • Pallet Quantity144
    • Product Height14 inch
    • Warranty - General10 years
    • Beam AngleFlood
    • IncludesIncludes fixture, 20 Watt Halogen MR-16 lamp (1), spike (1), 10' (3 m) lead wire*, and choice of finish
    • Light Bulb TypeLED
    • UPC Code611698037751

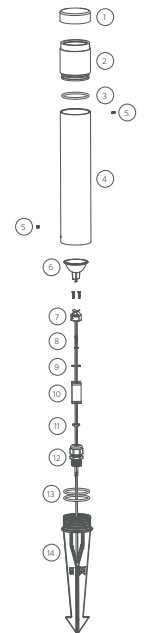

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    3
    3
    250010280011
    O-Ring for Lens
    Product #:
    Mfg #: 250010280011
    1-3, 5
    1-3, 5
    PM-LC-XX
    Lens Cap Assembly
    Product #:
    Mfg #: PM-LC-XX
    5
    5
    250012940000
    Screw, #6-32 x 1/4"
    Product #:
    Mfg #: 250012940000
    7
    7
    761600
    FXL-96-2264
    Product #: FXL-96-2264
    Mfg #: 761600
    8
    8
    250012990000
    Screw, #4 x 5/8"
    Product #:
    Mfg #: 250012990000
    9
    9
    250012980000
    Washer, Ext Tooth, #4
    Product #:
    Mfg #: 250012980000
    10
    10
    250012960000
    Bracket for Lamp
    Product #:
    Mfg #: 250012960000
    11
    11
    250014290000
    Hex Nut. #2-56
    Product #:
    Mfg #: 250014290000
    12
    12
    250014400000
    Strain Relief Connector
    Product #:
    Mfg #: 250014400000
    13
    13
    250010280006
    O-Ring for Long Slot Spike
    Product #:
    Mfg #: 250010280006
    14
    14
    250015840000
    FXL-301-7002
    Product #: FXL-301-7002
    Mfg #: 250015840000
    Not Shown
    Not Shown
    250012950000
    Hex Ket, 1/16"
    Product #:
    Mfg #: 250012950000

    Wholegoods

    There are no wholegoods available.
