National Diversified Sales

14" x 19" Standard Series Black Valve Box

Product #:NDS-58-1040

Mfg. Part #:113B

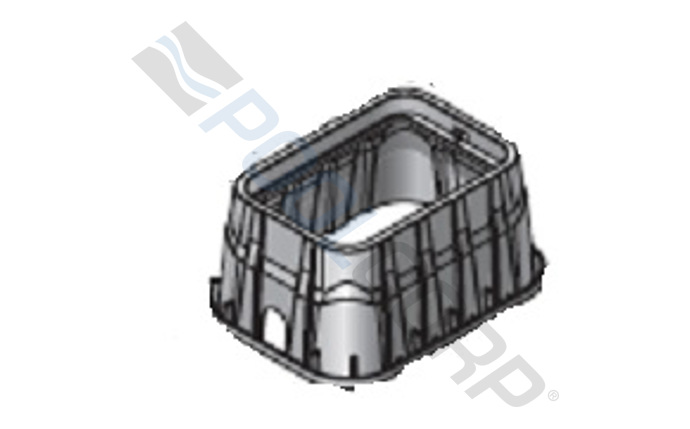

National Diversified Sales 113B 14" x 19" Standard Series Black Valve Box; Lid Not Included

National Diversified Sales

14" x 19" Standard Series Black Valve Box

Product #:NDS-58-1040

Mfg. Part #:113B

Description

This NDS Standard Valve Box has a 14" x 19" body that is tapered and has a minimum wall thickness of 0.200". The body has a double wall at the top cover seat area with a minimum thickness of 0.250". The cover seat area has 16 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The valve box has a 3/8" 304 brass nut for the bolt-down as a standard feature.

Documents

No documents available

Feature Bullets

  • Lid not included
  • Brass nut on box for bolt-down capability
  • Injection-molded of structural foam polyolefin with a melt index between 10-12
  • UV inhibitors prevent discoloration and deterioration, such as cracking or blistering

    • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • ColorBlack
    • Each Product Weight6.0365 pound
    • Minimum Sell Quantity1
    • Pallet Quantity78
    • UPC Code052063111308

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.

    Wholegoods

    There are no wholegoods available.
