National Diversified Sales

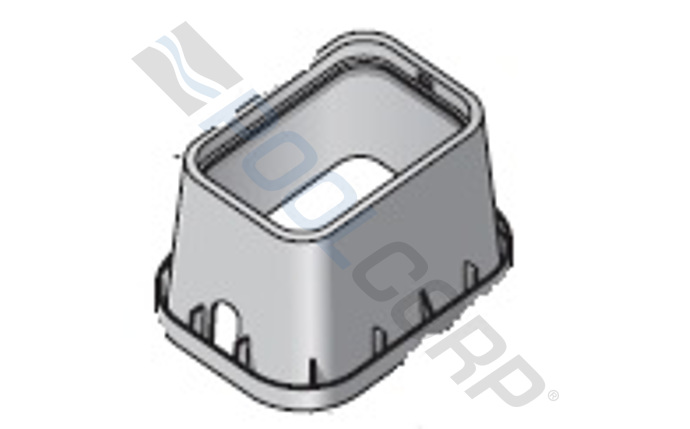

14" x 19" x 6" Standard Series Black Extension Valve Box

Product #:NDS-58-1039

Mfg. Part #:113-6


National Diversified Sales 113-6 14" x 19" x 6" Standard Series Black Extension Valve Box; Lid Not Included

National Diversified Sales

14" x 19" x 6" Standard Series Black Extension Valve Box

Product #:NDS-58-1039

Mfg. Part #:113-6

Description

This NDS Standard Series Valve Box has a 14" x 19" body that is tapered and has a minimum wall thickness of 0.200". The body has a double wall at the top cover seat area with a minimum thickness of 0.250". The cover seat area has 16 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The valve box has a 3/8" brass nut for the bolt-down as a standard feature.

Documents

No documents available

Feature Bullets

  • Lid not included
  • Brass nut on box for bolt-down capability
  • Injection-molded of structural foam polyolefin with a melt index between 10-12
  • UV inhibitors prevent discoloration and deterioration, such as cracking or blistering

    • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • Shipping Dimensions0 x 0 x 0 inch
    • ColorBlack
    • Each Product Weight5 pound
    • Minimum Sell Quantity1
    • Pallet Quantity49
    • UPC Code052063011363
