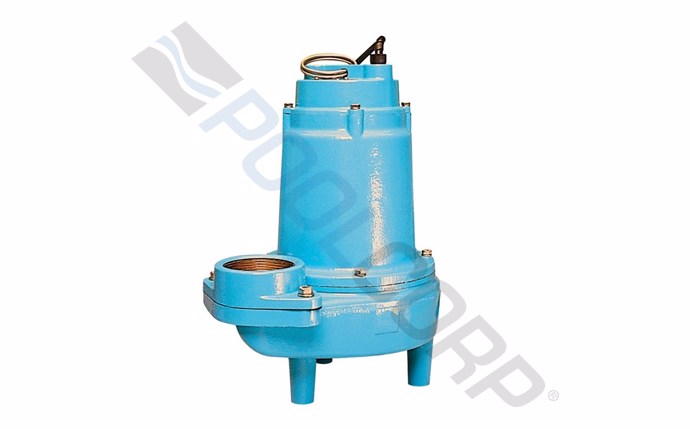

Little Giant 514620 16S Series Sewage Pump with 20' Cord 1HP 230V
Description
The 16S Series Manual Sewage Pump is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high- efficiency. Equipped with a robust 1 horsepower motor and non-clog impeller, the 16S is built for dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic or drainage areas.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandLittle Giant
- Amps High Speed19.2
- Shipping Dimensions15.25 x 10.5 x 22 inch
- Amps Low Speed19.2
- ChannelConstruction Channel
- Cord Length20 foot
- Each Product Weight94 pound
- Frequency Rating (Hz)60
- Green or Energy Efficient ProductTrue
- Horsepower1 horse power
- MaterialCarbon, Cast Iron, Ceramic, Stainless Steel
- Max Liquid Temperature140 degrees Fahrenheit
- Max Working Pressure15.1 pounds per square inch
- Minimum Sell Quantity1
- Power Rating1900 watt
- Shut Off35 foot
- Voltage230V
- UPC Code010121146204
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

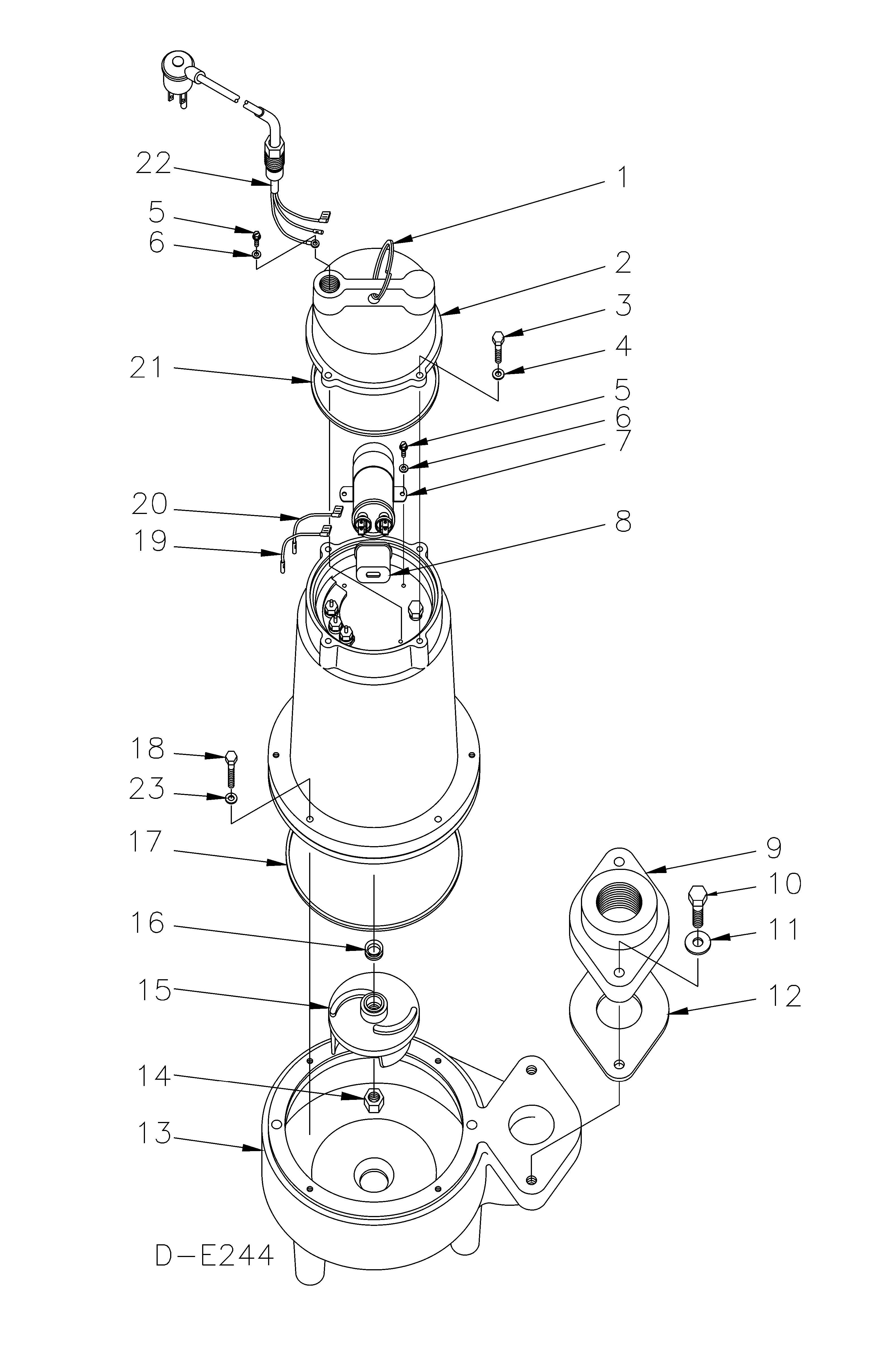

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
01
01
114100
WIRE HANDLE
Product #:
Mfg #: 114100
02
02
114051
COVER- HOUSING
Product #:
Mfg #: 114051
03
03
903723
SCREW- 1/4 - 20 X 3/4
Product #:
Mfg #: 903723
04
04
921103
LOCKWASHER- 1/4
Product #:
Mfg #: 921103
05
05
114004
DISC- FLANGE 2 FNPT
Product #:
Mfg #: 114004
05
05
114009
DISC- FLANGE 3 FNPT
Product #:
Mfg #: 114009
06
06
903722
SCREW- 7/16 - 14 X 11/4
Product #:
Mfg #: 903722
07
07
921104
LOCKWASHER- 7/16
Product #:
Mfg #: 921104
08
08
114101
FLANGE GASKET
Product #:
Mfg #: 114101
09
09
114038
VOLUTE- 14EH/16EH
Product #:
Mfg #: 114038
09
09
114043
VOLUTE- 14S/16S
Product #:
Mfg #: 114043
10
10
928033
SEAL RING- 7.484 I.D.
Product #:
Mfg #: 928033
11
11
921105
LOCKWASHER- 5/16
Product #:
Mfg #: 921105
12
12
903724
SCREW- 5/16 - 18 X 11/4
Product #:
Mfg #: 903724
13
13
928034
SEAL RING- 5.359 I.D.
Product #:
Mfg #: 928034
Wholegoods
There are no wholegoods available.
