AquaStar Pool Products

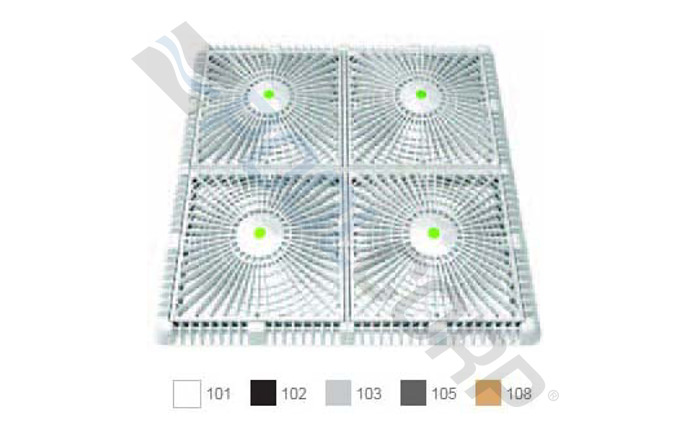

18" Square Mud Frame with Four 9" Square Star Suction Outlet Covers Dark Gray
Product #:API-25-5305
Mfg. Part #:P18105
- This product is obsolete.
- The superceded product was not found.
AquaStar Pool Products P18105 Square Mud Frame with Suction Outlet Cover; 18 Inch, UV-Resistant Engineered Polymer, Dark Gray
AquaStar Pool Products
18" Square Mud Frame with Four 9" Square Star Suction Outlet Covers Dark Gray
Product #:API-25-5305
Mfg. Part #:P18105
EA
Description
AquaStar Pool Products P18105 Square Mud Frame with Suction Outlet Cover; 18 Inch, UV-Resistant Engineered Polymer, Dark Gray designed to replace standard 18" square 2 x 2 grid cover assemblies that have four 9'' square covers with 8 1/4'' center-to-center screw hole measurement. R1824xxx universal 18'' square cover is designed to fit over 18'' standard mud frames. Replace drain cover every five years from the date of installation.
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions8 x 8 x 2.5 inch
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Cover Open Area160.8 square inch
- Each Product Weight8.5 pound
- Floor Flow Rate Measure A740 gal/min
- Includes18 Inch Drain Frame, Vented Riser Ring For 18 Inch Frame, 9 Inch Square Star Suction Outlet Cover, (16) 10 x 1-3/4 Inch Flat Head Phillips Type A 316 Stainless Steel Screw
- Master Carton Quantity4
- MaterialPolymer
- Minimum Sell Quantity1
- Pallet Quantity1
- Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
- Wall Flow Rate Measure A740 gal/min
- Floor Flow Rate Measure A at1.5 ft/s
- Wall Flow Rate Measure A at1.5 ft/s
