19" Complete .9 THP 2940 GPH Tank Sand Filter System

Product #:SWL-05-0002

Mfg. Part #:71915


HydroTools™ 71915 19" Complete .9 THP 2940 GPH Tank Sand Filter System

HydroTools

19" Complete .9 THP 2940 GPH Tank Sand Filter System

Product #:SWL-05-0002

Mfg. Part #:71915

EA

Description

Keep your pool water clear, clean, and inviting with the HydroTools™ .9 THP, 2940 GPH Sand Filter System. Designed for efficient filtration and easy operation, this system uses specially graded filter sand to trap dirt, debris, and fine particles as water circulates through the tank. The result is consistently cleaner water with minimal maintenance. This system is for use with above ground swimming pools including Summer Escapes, Polygroup, Summer Waves, Heritage, Swim 'N Play and other inflatable top ring styles, frame style and rigid wall style pools.

Feature Bullets

  • Complete, ready to install sand filter system
  • .9 THP horsepower motor with 2940 gal per hour capacity pump
  • 19" diameter blow molded polyethylene never rust sand tank with 100 lb sand capacity (sand not included)
  • 6 way valve for filter, backwash, rinse, waste, recirculate and closed operations
  • Complete set includes two (2) 1-1/2"" diameter filter connection hoses and 1 each valve to pump connection hose
  • Includes pump and tank base, pressure gauge, hose clamps, drain plug, Teflon tape and more
  • One (1) year manufacturer's warranty
  • Replacement parts available separately
  • Branch Availability

    content loaded

    Specifications

    • BrandHydroTools
    • ApplicationAbove Ground, Pool
    • Shipping Dimensions27.56 x 19.1 x 31.5 inch
    • ChannelNone
    • ColorGray
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight67 pound
    • FinishStandard
    • For Use WithSummer Escapes, Polygroup, Summer Waves, Heritage, Swim 'N Play and other inflatable top ring styles, frame style and rigid wall style pools
    • Horsepower1 horse power
    • Minimum Sell Quantity1
    • Warranty - General1 years
    • UPC Code723815719157

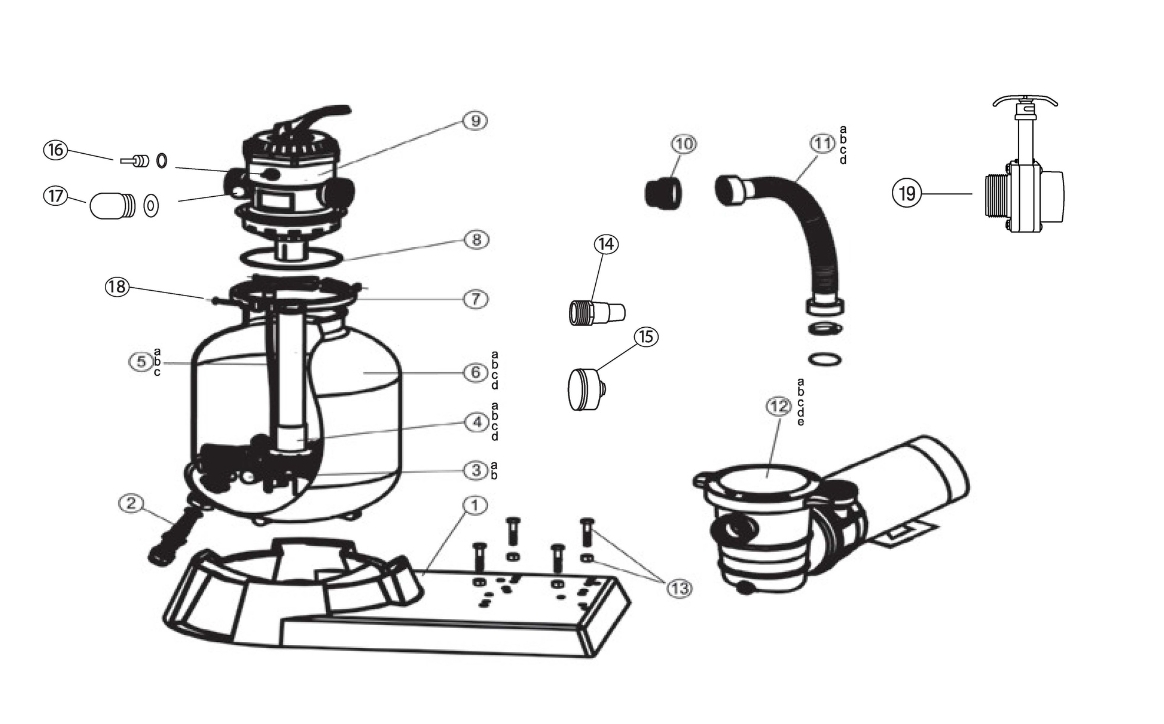

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    71622
    Sand Filter Support for 71610,71915,72220,72420
    Product #:
    Mfg #: 71622
    2
    2
    71604
    SWL-051-0004
    Product #: SWL-051-0004
    Mfg #: 71604
    3a
    3a
    71608
    SWL-051-0005
    Product #: SWL-051-0005
    Mfg #: 71608
    3b
    3b
    72408
    Lateral for 72420
    Product #:
    Mfg #: 72408
    4a
    4a
    71603
    Center Pipe for 71610
    Product #:
    Mfg #: 71603
    4b
    4b
    71903
    SWL-051-0007
    Product #: SWL-051-0007
    Mfg #: 71903
    4c
    4c
    72203
    Center Pipe for 71110
    Product #:
    Mfg #: 72203
    4d
    4d
    72203
    Center Pipe for 72420
    Product #:
    Mfg #: 72203
    5a
    5a
    71624
    Air Release Assembly for 71610
    Product #:
    Mfg #: 71624
    5b
    5b
    71924
    Air Release Assembly for 71915, 72220
    Product #:
    Mfg #: 71924
    5c
    5c
    72224
    Air Release Assembly for 72420
    Product #:
    Mfg #: 72224
    6a
    6a
    71623
    Filter Rank for 71610
    Product #:
    Mfg #: 71623
    6b
    6b
    71923
    Filter Tank for 71915
    Product #:
    Mfg #: 71923
    6c
    6c
    72223
    Filter Tank for 72220
    Product #:
    Mfg #: 72223
    6d
    6d
    72423
    Filter Tank for 72420
    Product #:
    Mfg #: 72423

    Wholegoods

    There are no wholegoods available.
