Waterway

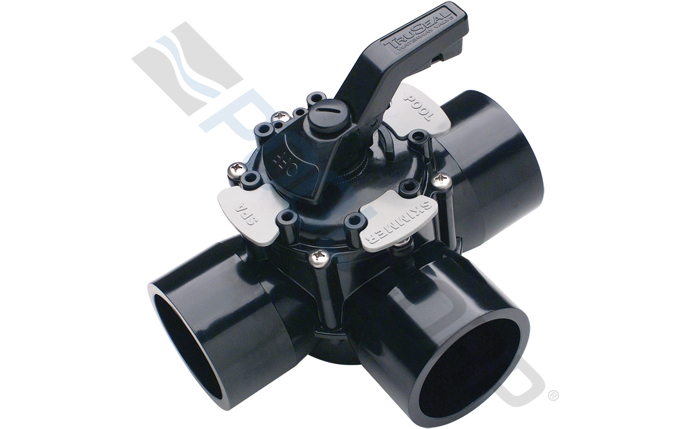

2-1/2" Socket x 3" Spigot TruSeal 3-Way CPVC Diverter Valve
Product #:WWP-56-0401
Mfg. Part #:600-0401
Waterway TruSeal 600-0401 2-1/2" Socket x 3" Spigot 3-Way CPVC Diverter Valve
Waterway
2-1/2" Socket x 3" Spigot TruSeal 3-Way CPVC Diverter Valve
Product #:WWP-56-0401
Mfg. Part #:600-0401
Description
Waterway positive seal diverter valves have been designed for the most demanding applications. The TruSeal Valve is loaded with features and there is not a longer warranty in the industry.
Documents
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationPool
- Shipping Dimensions8.75 x 9.5 x 8 inch
- ChannelConstruction Channel
- Commercial, Residential, or ProfessionalCommercial, Residential
- Each Product Weight3.3888 pound
- Master Carton Quantity8
- Minimum Sell Quantity1
- Socket2.5 inch
- Valve ColorBlack
- Spigot3 inch
- UPC Code806105355782
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

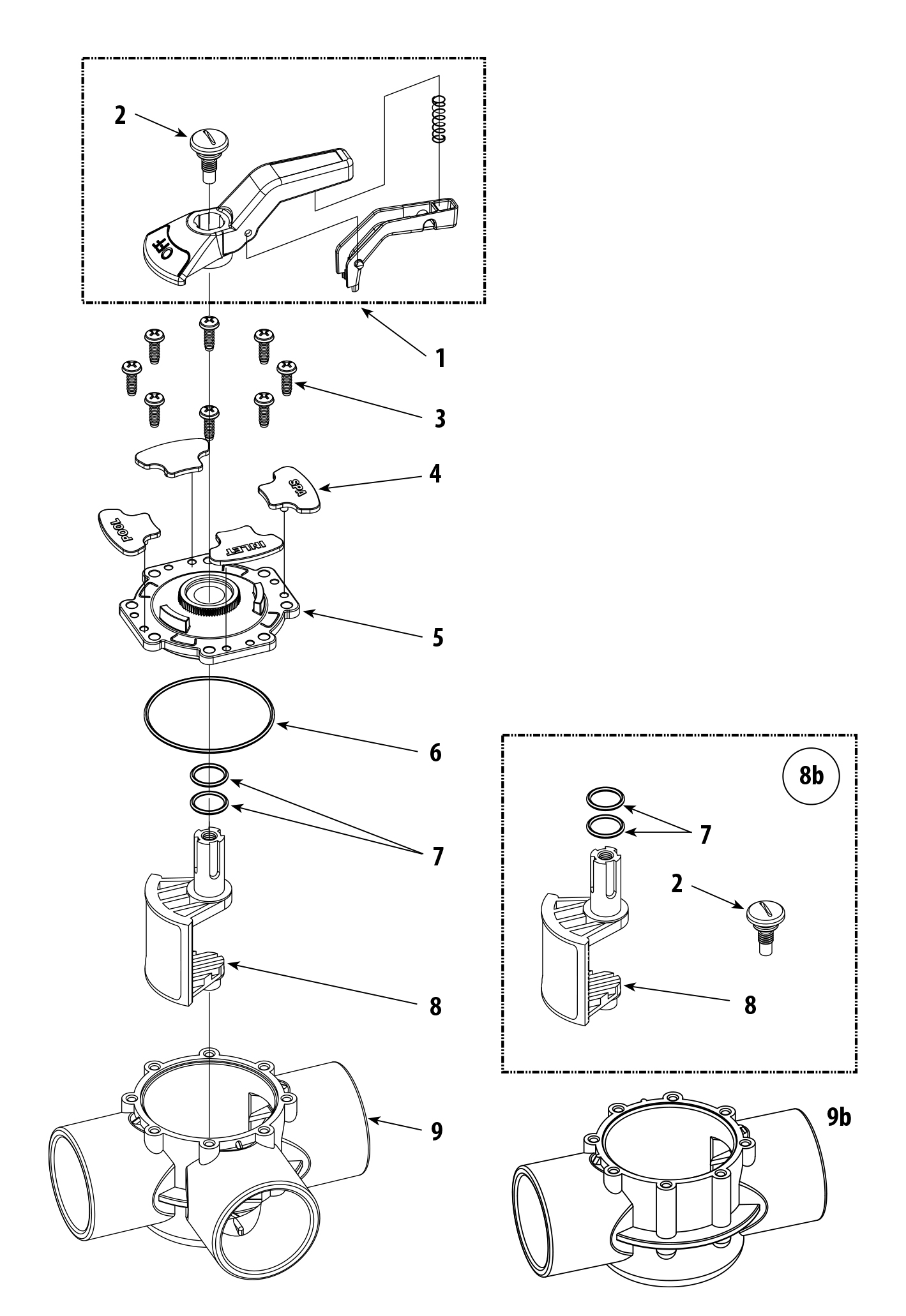

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
600-7171B
Handle Assembly (sold as Assembly Only)
Product #:
Mfg #: 600-7171B
2
2
715-1307B
Screw - Handle
Product #:
Mfg #: 715-1307B
3
3
819-0025B
Screw - 14 & ¾ Phil Pan.
Product #:
Mfg #: 819-0025B
4
4
600-7180B
Flow Label Assembly
Product #:
Mfg #: 600-7180B
5
5
602-7251B
Lid
Product #:
Mfg #: 602-7251B
6
6
805-0151B
O-Ring - Lid
Product #:
Mfg #: 805-0151B
7
7
805-0116EPB
O-Ring (2 required per Valve)
Product #:
Mfg #: 805-0116EPB
8
8
602-7140B
Diverter Arm
Product #:
Mfg #: 602-7140B
8b
9
9
602-7200B
Body
Product #:
Mfg #: 602-7200B
9b
9b
602-7071B
Body Straight 1 1/2 spg
Product #:
Mfg #: 602-7071B
Wholegoods
There are no wholegoods available.
