Westlake Pipe & Fittings

2" Gray/Orange TUBall Valve CPVC/EPDM

Product #:LAS-56-0975

Mfg. Part #:V20103N

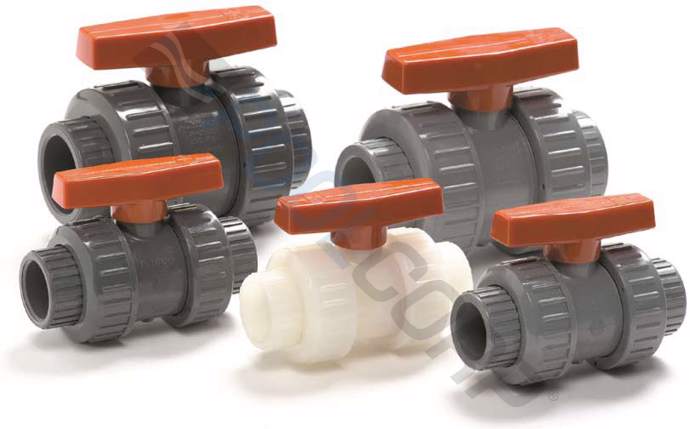

Westlake Pipe & Fittings V20103N 2" Gray/Orange TUBall Valve CPVC/EPDM

Westlake Pipe & Fittings

2" Gray/Orange TUBall Valve CPVC/EPDM

Product #:LAS-56-0975

Mfg. Part #:V20103N

Description

Westlake Pipe & Fittings V20103N 2" TUBall Valve CPVC/EPDM has been offering the best in piping systems since 1984. The valve provides outstanding flow properties, while its full-port union valve almost entirely eliminates pressure drops.

Documents

Feature Bullets

  • Pressure rating (non-shock water 73 degrees F): 235 psi 1/2" - 2", 150 psi 2.5" - 6"
  • Pressure rating per ASTM F-1970
  • External seat-wear adjustment. Full port schedule 80 design
  • Assembled with water-soluble, silicone-free O-ring lubricant
  • Certified to NSF/ANSI 61 and 372

    • Branch Availability

    content loaded

    Specifications

    • BrandWestlake Pipe & Fittings
    • ApplicationPool, Spa, Irrigation
    • Shipping Dimensions8.15 x 4.75 x 6.45 inch
    • ChannelConstruction Channel
    • ColorOrange, Gray
    • Commercial, Residential, or ProfessionalCommercial, Professional, Residential
    • Each Product Weight9.5 pound
    • FinishStandard
    • Master Carton Quantity1
    • MaterialCPVC
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Pipe ScheduleSCH80
    • Pressure Rating235
    • Standards ApprovalsNSF Certified, ANSI Certified, ASTM Certified
    • Valve ColorGray
    • UPC Code054554547573

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.

    Wholegoods

    There are no wholegoods available.
