Waterway

2" Socket Gray Renegade Wide Mouth Vinyl Liner In-Ground Skimmer

Product #:WWP-25-1757

Mfg. Part #:540-8507

  • This product is obsolete.
  • The superceded product was not found.

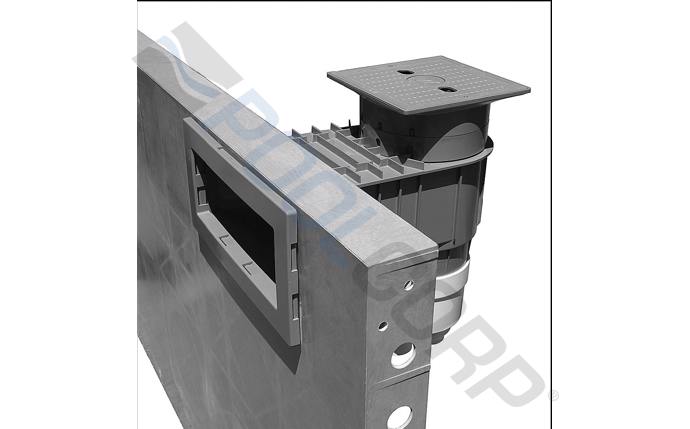

Waterway 540-8507 2" Socket Gray Renegade Wide Mouth Vinyl Liner In-Ground Skimmer

Waterway

2" Socket Gray Renegade Wide Mouth Vinyl Liner In-Ground Skimmer

Product #:WWP-25-1757

Mfg. Part #:540-8507

Description

The Renegade skimmer from Waterway is the only choice you'll need to make for your vinyl liner pool installations. The Renegade In-Ground Vinyl Pool Skimmer is designed to work with all existing vinyl liner steel; polymer or fiberglass pool walls. Available in a wide variety of models - either standard or widemouth; in your choice of white or gray; the Renegade includes a lock-down vacuum plate; extension collar and one of the largest skimmer baskets available. It twist-locks to prevent floating and easyaccess. Renegade's spring-loaded weir door makes replacements a snap.

Documents

No documents available

Feature Bullets

  • PVC sockets for better glue joints
  • 2" socket is 2 1/2" spigot for more flow
  • 1 1/2" socket is 2" spigot for easier plumbing
  • 1/2" socket for overflow hose
  • Large locking skimmer basket
  • Easy access spring-loaded weir door simplifies replacement and installation
  • High flow rate of 75 GPM
  • Optional float valve
  • Optional skimmer test kit
  • Lock-Down vacuum plate and an extension collar are included
  • Branch Availability

    content loaded

    Specifications

    • BrandWaterway
    • ApplicationInground, Pool
    • ColorGray
    • Connection Size 12 inch
    • Connection Size 1 FITSocket
    • Connection TypeSocket
    • Cover ShapeSquare
    • Cover StyleSquare Lid
    • Each Product Weight13.18 pound
    • Flow Rate Measure A75 gal/min
    • IncludesLock-down vacuum plate; extension collar
    • Master Carton Quantity1
    • MaterialPVC or Polyvinyl Chloride, Vinyl
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Throat Depth9 inch
    • Mouth Opening Height7.7 inch
    • Mouth Opening Width17.3 inch
    • Optional AccessoriesFloat valve, skimmer test kit
    • UPC Code806105099235

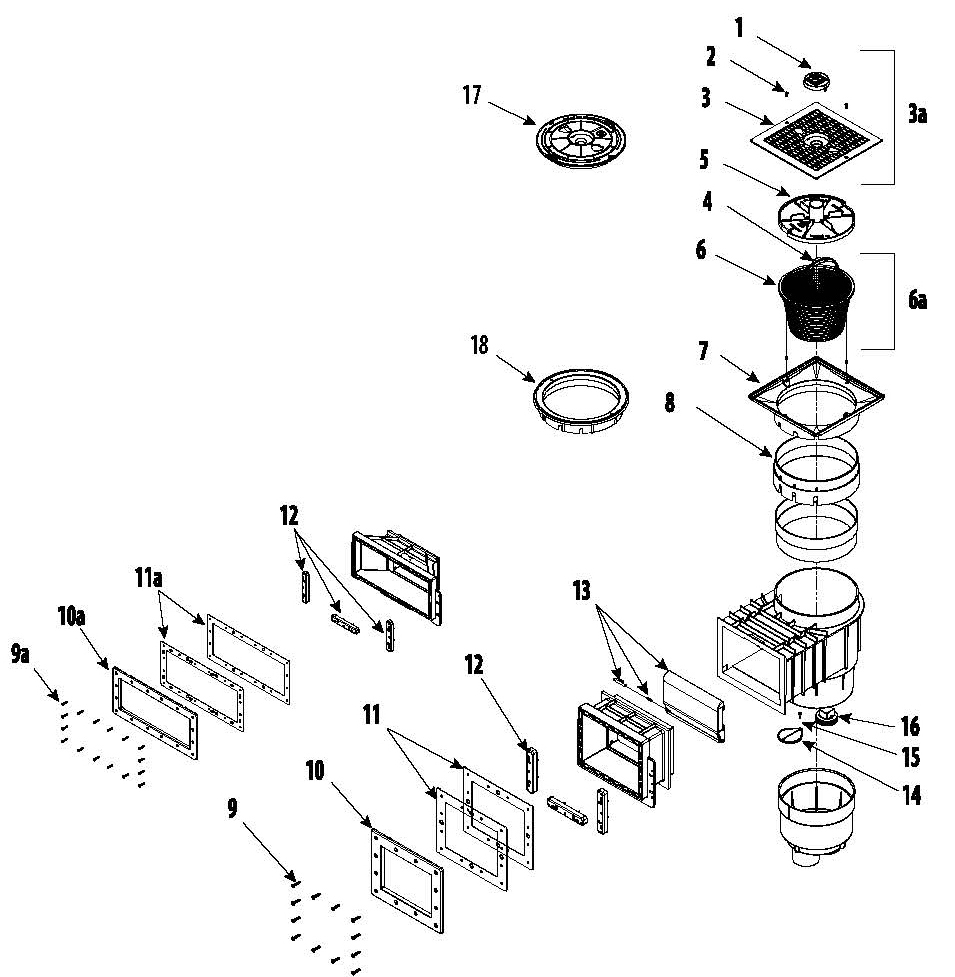

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    519-6460WWB
    Logo Lid Insert
    Product #:
    Mfg #: 519-6460WWB
    2
    2
    819-0005B
    Screw #8 32 x 7/16"
    Product #:
    Mfg #: 819-0005B
    Notes:
    2 required
    3
    3
    519-9500B
    Square Lid
    Product #:
    Mfg #: 519-9500B
    3a
    3a
    540-6490WWB
    Square Lid with Logo Insert
    Product #:
    Mfg #: 540-6490WWB
    4
    4
    519-3250B
    Basket Handle
    Product #:
    Mfg #: 519-3250B
    5
    5
    519-6480B
    Vacuum Plate - Twist-Lock
    Product #:
    Mfg #: 519-6480B
    Notes:
    2013 and older
    5a
    5a
    519-6480-R1B
    New Vacuum Plate
    Product #:
    Mfg #: 519-6480-R1B
    Notes:
    2014 and newer
    6
    6
    519-3240B
    Basket - 8.12" diameter x 5.25" H
    Product #:
    Mfg #: 519-3240B
    6a
    6a
    542-3240B
    WWP-85-9714
    Product #: WWP-85-9714
    Mfg #: 542-3240B
    7
    7
    519-9510B
    Square Collar
    Product #:
    Mfg #: 519-9510B
    8
    8
    519-949xB
    Extended Collar Deck Flange - Square
    Product #:
    Mfg #: 519-949xB
    9
    9
    819-6945B
    Screw #12 x 1 1/4" PFH
    Product #:
    Mfg #: 819-6945B
    Notes:
    12 required
    9a
    9a
    819-0030B
    #12 x 1 1/4" Phlps Pan Head Screw SS
    Product #:
    Mfg #: 819-0030B
    Notes:
    12 Required
    10
    10
    519-9530B
    Mounting Plate - Standard
    Product #:
    Mfg #: 519-9530B
    10a
    10a
    519-9550B
    Mounting Plate - Wide Mouth
    Product #:
    Mfg #: 519-9550B
