2" Socket White Renegade Wide Mouth Vinyl Liner Inground Skimmer with Square Lid

Product #:WWP-25-1686

Mfg. Part #:540-8500

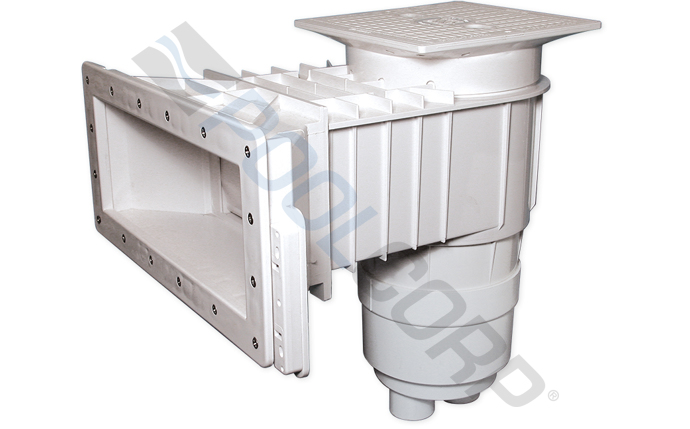

Waterway 540-8500 2" Socket White Renegade Wide Mouth Vinyl Liner Inground Skimmer with Square Lid

Waterway

2" Socket White Renegade Wide Mouth Vinyl Liner Inground Skimmer with Square Lid

Product #:WWP-25-1686

Mfg. Part #:540-8500

Description

Waterway 540-8500 2" Socket White Renegade Wide-Mouth Vinyl Liner Inground Skimmer with Square Lid and 9" Throat. The Renegade skimmer from Waterway is the only choice you'll need to make for your vinyl liner pool installations. The Renegade In-Ground Vinyl Pool Skimmer is designed to work with all existing vinyl liner steel; polymer or fiberglass pool walls. Available in a wide variety of models - either standard or wide mouth; in your choice of white or gray; the Renegade includes a lock-down vacuum plate; extension collar and one of the largest skimmer baskets available. It twist-locks to prevent floating and easy access. Renegade's spring-loaded weir door makes replacements a snap.

Documents

No documents available

Branch Availability

content loaded

Specifications

  • BrandWaterway
  • ApplicationInground, Pool
  • ColorWhite
  • Connection Size 12 inch
  • Connection Size 1 FITSocket
  • Connection TypeSocket
  • Cover ShapeSquare
  • Cover StyleSquare Lid
  • Each Product Weight13.18 pound
  • Flow Rate Measure A75 gal/min
  • IncludesLock-down vacuum plate; extension collar
  • Master Carton Quantity1
  • MaterialPVC or Polyvinyl Chloride, Vinyl
  • Minimum Sell Quantity1
  • Pallet Quantity1
  • Throat Depth9 inch
  • Mouth Opening Height7.7 inch
  • Mouth Opening Width17.3 inch
  • Optional AccessoriesFloat valve, skimmer test kit
  • UPC Code806105099228

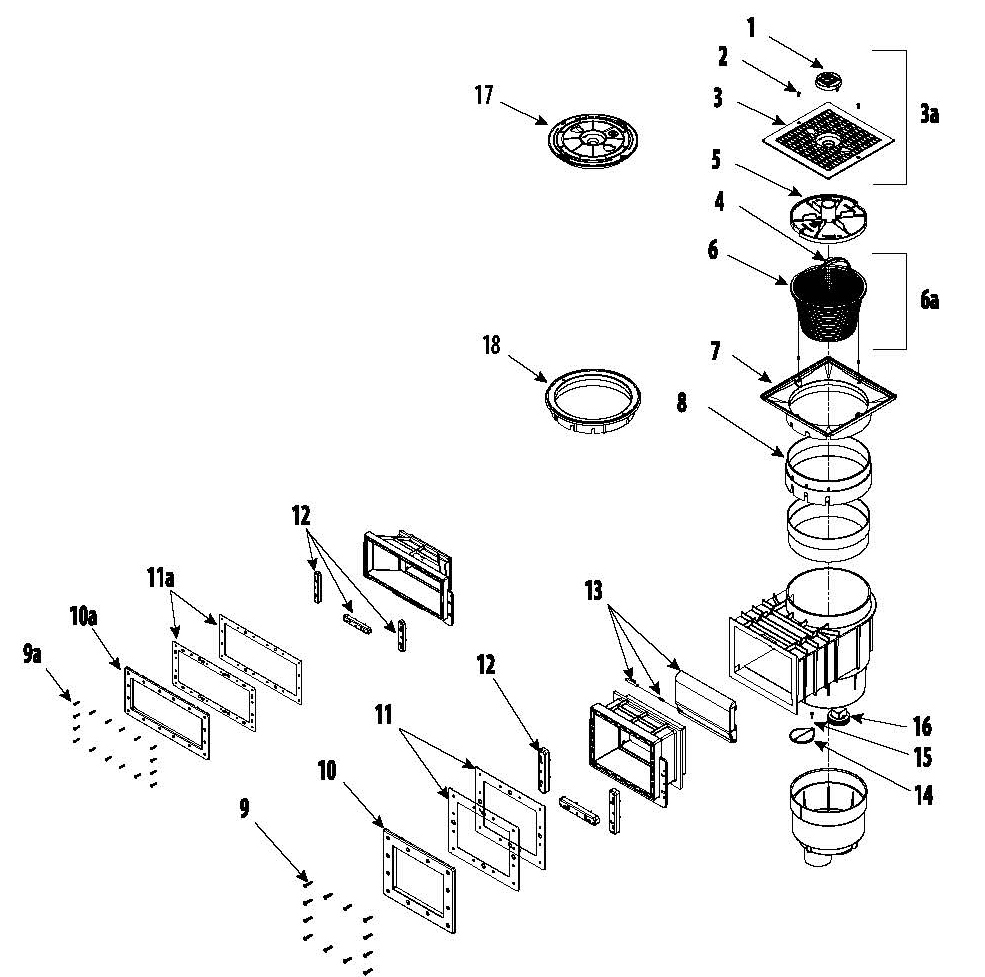

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
519-6460WWB
Logo Lid Insert
Product #:
Mfg #: 519-6460WWB
2
2
819-0005B
Screw #8 32 x 7/16"
Product #:
Mfg #: 819-0005B
Notes:
2 required
3
3
519-9500B
Square Lid
Product #:
Mfg #: 519-9500B
3a
3a
540-6490WWB
Square Lid with Logo Insert
Product #:
Mfg #: 540-6490WWB
4
4
519-3250B
Basket Handle
Product #:
Mfg #: 519-3250B
5
5
519-6480B
Vacuum Plate - Twist-Lock
Product #:
Mfg #: 519-6480B
Notes:
2013 and older
5a
5a
519-6480-R1B
New Vacuum Plate
Product #:
Mfg #: 519-6480-R1B
Notes:
2014 and newer
6
6
519-3240B
Basket - 8.12" diameter x 5.25" H
Product #:
Mfg #: 519-3240B
6a
6a
542-3240B
WWP-85-9714
Product #: WWP-85-9714
Mfg #: 542-3240B
7
7
519-9510B
Square Collar
Product #:
Mfg #: 519-9510B
8
8
519-949xB
Extended Collar Deck Flange - Square
Product #:
Mfg #: 519-949xB
9
9
819-6945B
Screw #12 x 1 1/4" PFH
Product #:
Mfg #: 819-6945B
Notes:
12 required
9a
9a
819-0030B
#12 x 1 1/4" Phlps Pan Head Screw SS
Product #:
Mfg #: 819-0030B
Notes:
12 Required
10
10
519-9530B
Mounting Plate - Standard
Product #:
Mfg #: 519-9530B
10a
10a
519-9550B
Mounting Plate - Wide Mouth
Product #:
Mfg #: 519-9550B
