U.S. MOTORS
2 Speed Pool/Spa Pump 56J ODP C-Flange Motor 1.5HP 230V 60Hz
Product #:EMR-60-7249
Mfg. Part #:ASB2977

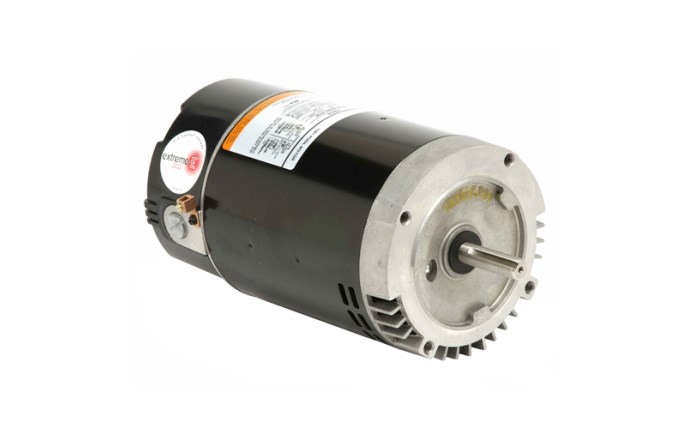

U.S. MOTORS ASB2977 2 Speed Pool/Spa Pump 56J ODP C-Flange Motor 1.5HP 230V 60Hz
U.S. MOTORS
2 Speed Pool/Spa Pump 56J ODP C-Flange Motor 1.5HP 230V 60Hz
Product #:EMR-60-7249
Mfg. Part #:ASB2977
Description
The U.S. MOTORS ASB2977 is a 2 Speed Pool/Spa Pump 56J ODP C-Flange Motor. It runs at 1.5HP, 230V, and 60Hz. C-Flange Motors have threaded mounting holes in the face of the motor. They are typically used when a pump is to be overhung on the motor.
Documents
Branch Availability
content loaded
Specifications
- BrandU.S. MOTORS
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18 x 10.25 x 11 inch
- Amps High Speed8.2
- Amps Low Speed2
- ApplicationPool, Spa
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight34.65 pound
- Frequency Rating (Hz)60
- Horsepower1.5 horse power
- Insulation ClassB
- Length Less Shaft12.51 inch
- Material300 Stainless Steel
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationClockwise
- Motor Speed2-Speed
- Motor Thermal ProtectionAutomatic Reset
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Service Factor1.3
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length1.875 inch
- Shaft Material303 Stainless Steel
- Voltage230V
- Green or Energy Efficient ProductTrue
- UPC Code786382111526
