U.S. MOTORS
2 Speed Pool/Spa Pump 56J ODP C-Flange Motor w/ Timer 1.5HP 230V 60Hz
Product #:EMR-60-7241
Mfg. Part #:ASB2977T
U.S. MOTORS ASB2977T 2 Speed Pool/Spa Pump 56J ODP C-Flange Motor w/ Timer 1.5HP 230V 60Hz
U.S. MOTORS
2 Speed Pool/Spa Pump 56J ODP C-Flange Motor w/ Timer 1.5HP 230V 60Hz
Product #:EMR-60-7241
Mfg. Part #:ASB2977T
Description

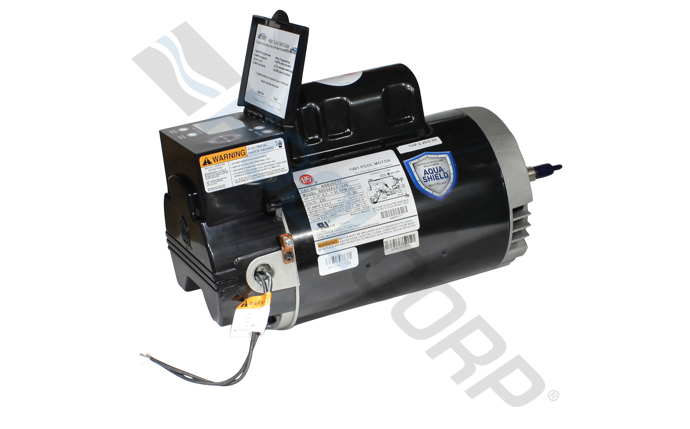

The U.S. MOTORS ASB2977T is a 2 Speed Pool/Spa Pump 56J ODP C-Flange Motor w/ Timer. It runs at 1.5HP, 230V, and 60Hz. C-Flange Motors have threaded mounting holes in the face of the motor. They are typically used when a pump is to be overhung on the motor.
Documents
Branch Availability
content loaded
Specifications
- BrandU.S. MOTORS
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18.5 x 12 x 11.5 inch
- Amps High Speed8.2
- Amps Low Speed2
- ApplicationPool, Spa
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight35 pound
- Frequency Rating (Hz)60
- Horsepower1.5 horse power
- Insulation ClassB
- Length Less Shaft12.51 inch
- Material300 Stainless Steel
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationClockwise
- Motor Speed2-Speed
- Motor Thermal ProtectionAutomatic Reset
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Service Factor1.3
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length1.875 inch
- Shaft Material303 Stainless Steel
- Voltage230V
- Flange TypeSquare
- Green or Energy Efficient ProductTrue
- UPC Code786382113179
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
There are no parts or schematics available.
