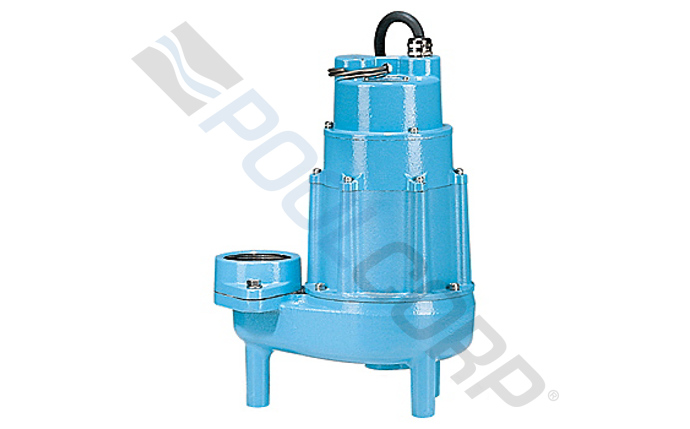

Little Giant 520200 20E Series Effluent Pump with 20' Cord 2HP 230V
Description
The 20E Series Effluent Pump is engineered to maneuver the rigid demands of effluent and sewage waste transfer with high efficiency and long-term dependability in residential, commercial, industrial, and agricultural applications. It's used for dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic, or drainage areas.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandLittle Giant
- Amps High Speed31
- Shipping Dimensions15.25 x 10.5 x 22 inch
- Amps Low Speed31
- Cord Length20 foot
- Each Product Weight92 pound
- Frequency Rating (Hz)60
- Horsepower2 horse power
- MaterialBrass, Cast Iron, Stainless Steel
- Max Liquid Temperature140 degrees Fahrenheit
- Max Working Pressure47.6 pounds per square inch
- Minimum Sell Quantity1
- PhaseSingle
- Power Rating3872 watt
- Shut Off110 foot
- Voltage230V
- UPC Code010121202009
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

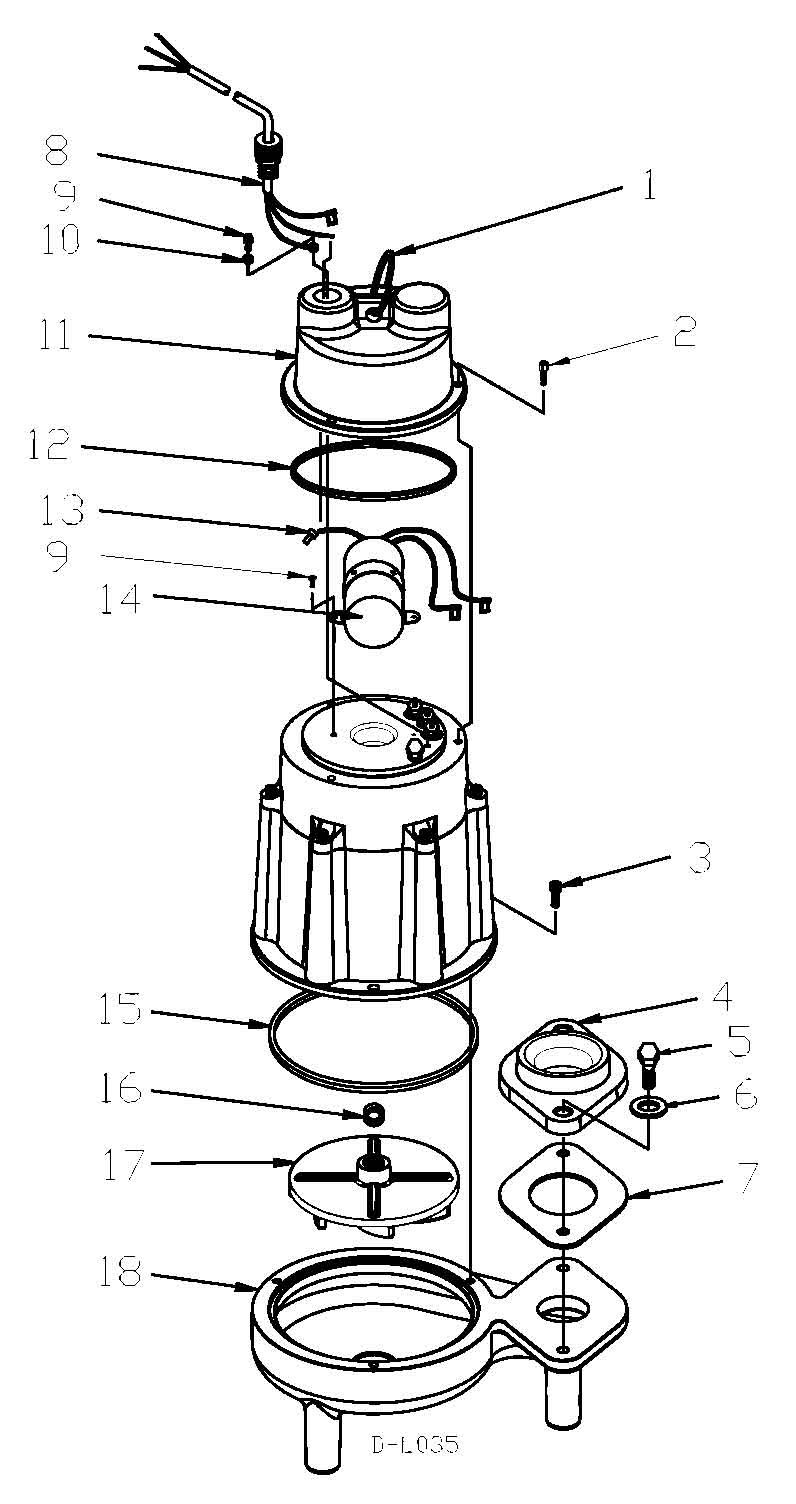

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
01
01
114100
Wire Handle
Product #:
Mfg #: 114100
02
02
903711
Cap Screw - 1/4-20 x 3/4
Product #:
Mfg #: 903711
03
03
903727
Cap Screw - 5/16 x 5/8
Product #:
Mfg #: 903727
04
04
114004
Discharge flange - 2 FNPT
Product #:
Mfg #: 114004
04
04
114009
Discharge flange - 3 FNPT
Product #:
Mfg #: 114009
05
05
903722
Screw- 5/16-18 x 1-1/4
Product #:
Mfg #: 903722
06
06
921104
Lock washer - 7/16
Product #:
Mfg #: 921104
07
07
114101
Flange gasket
Product #:
Mfg #: 114101
08
08
951083
Wiring harness - stripped
Product #:
Mfg #: 951083
09
09
902437
Screw - #8-32 x 1/4
Product #:
Mfg #: 902437
10
10
921059
Lock washer - #8
Product #:
Mfg #: 921059
11
11
120039
Cover
Product #:
Mfg #: 120039
12
12
928041
O-ring
Product #:
Mfg #: 928041
13
13
950400
Connector- closed end
Product #:
Mfg #: 950400
14
14
950505
Clip- 2.00 dia.
Product #:
Mfg #: 950505
