Jandy

22.5" SFTM Top Mount Sand Filter with 1.5" Valve

Product #:TLD-05-1200

Mfg. Part #:SFTM22

  • This product is obsolete.
  • The superceded product was not found.

Jandy Pro Series SFTM22 22 1/2" SFTM Top Mount Sand Filter

Jandy

22.5" SFTM Top Mount Sand Filter with 1.5" Valve

Product #:TLD-05-1200

Mfg. Part #:SFTM22

Description

Jandy Pro Series SFTM22 22 1/2" SFTM Top Mount Sand Filter directs water evenly across the entire surface of sand without sand migration or channeling. Top-mount pool sand filters contain an extra deep sand bed for improved filtration. Its blow-molded tank is corrosion and UV-resistant with a bottom drain that’s ideal for winterizing and draining. It also includes a 7-way dial valve with sight glass, automatic air relief and pressure gauge. The SFTM has a non-corrosive resin clamp that allows 360 degree rotation of the dial valve for simple installation, alignment, and service of dial valve and filter components. A heavy-duty, freeze-resistant under-drain with "snap-fit" side slotted laterals draws water evenly across the full diameter of the sand bed (up to 25 gpm/sq.ft.) Perfect for higher flows, better filtration, longer cycles and more efficient backwashing.

Branch Availability

content loaded

Specifications

  • BrandJandy
  • ApplicationAbove Ground, Pool
  • Shipping Dimensions22.5 x 22.5 x 41 inch
  • Commercial, Residential, or ProfessionalResidential
  • Distance Inlet and Base33.25 inch
  • Distance Outlet and Base37.5 inch
  • Each Product Weight41.5 pound
  • Filtration Area2.64 square feet
  • Includes1-1/2 Inch Unions
  • Maximum Working Pressure35 pounds per square inch
  • Minimum Sell Quantity1
  • Pallet Quantity2
  • Sand Required250 pound
  • Sand Type Requirements#20 Silica Sand, 40-55 mm Size Range
  • UPC Code052337060707

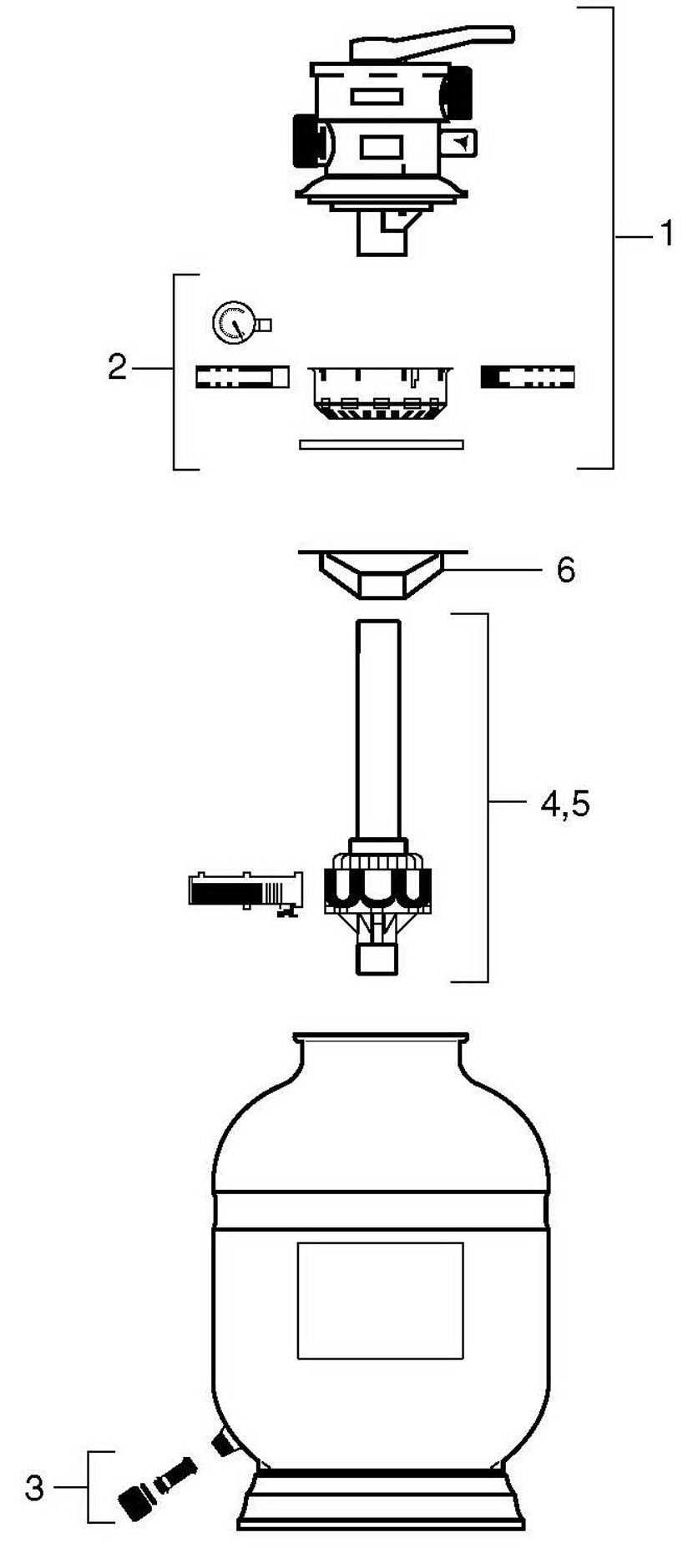

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
SFTM-MPV
TLD-06-109
SFTM-MPV 1.5" SFTM22/25 TOP MT MULTIPORT VALVE KIT W/ CLAMP
Product #: TLD-06-109
Mfg #: SFTM-MPV
3
3
R0492100
TLD-051-1003
Product #: TLD-051-1003
Mfg #: R0492100
4
4
R0492200
TLD-051-1002
Product #: TLD-051-1002
Mfg #: R0492200
5
5
R0492300
TLD-051-1001
R0492300 25" SFTM25 LATERAL & STANDPIPE ASSY
Product #: TLD-051-1001
Mfg #: R0492300
